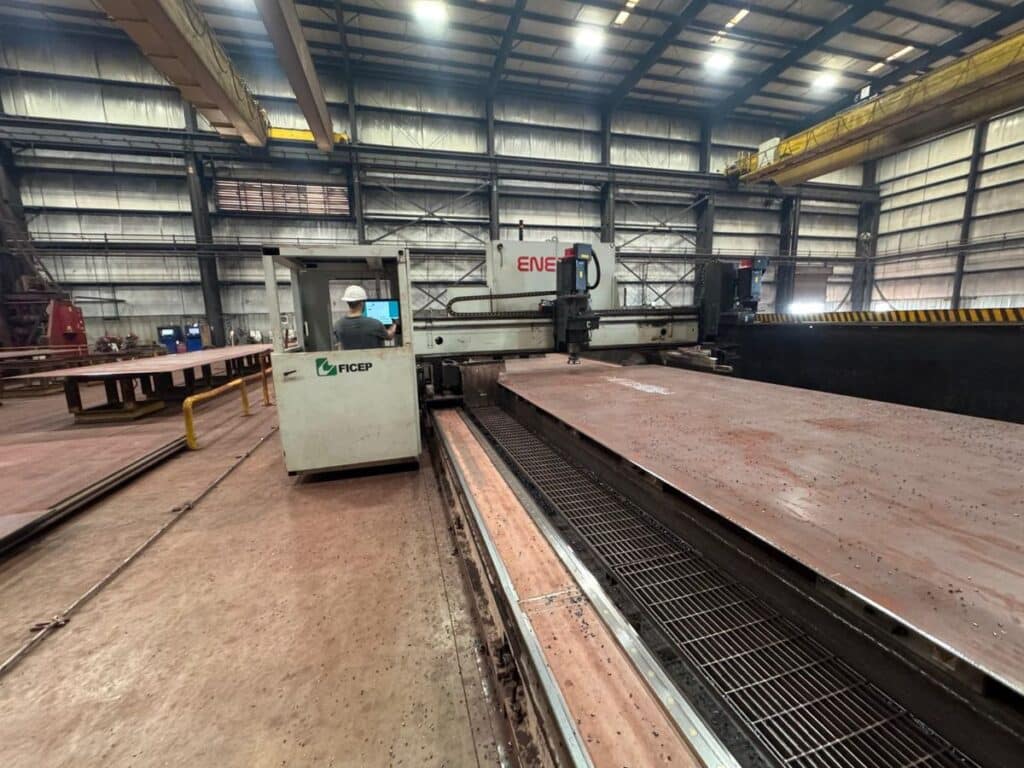

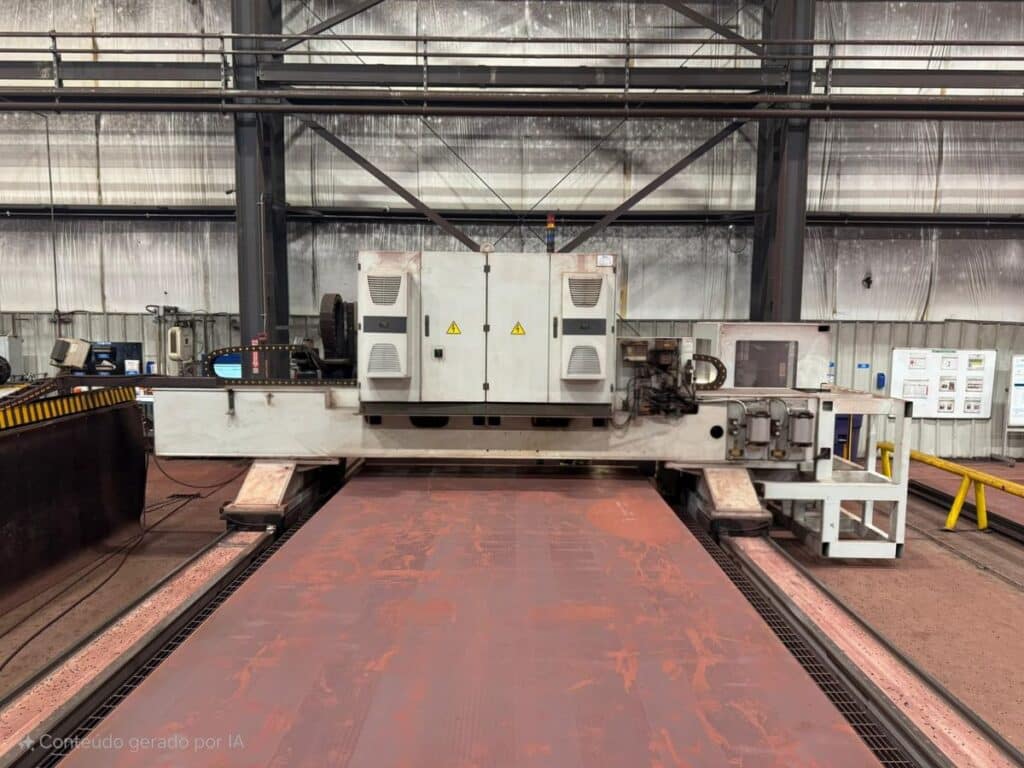

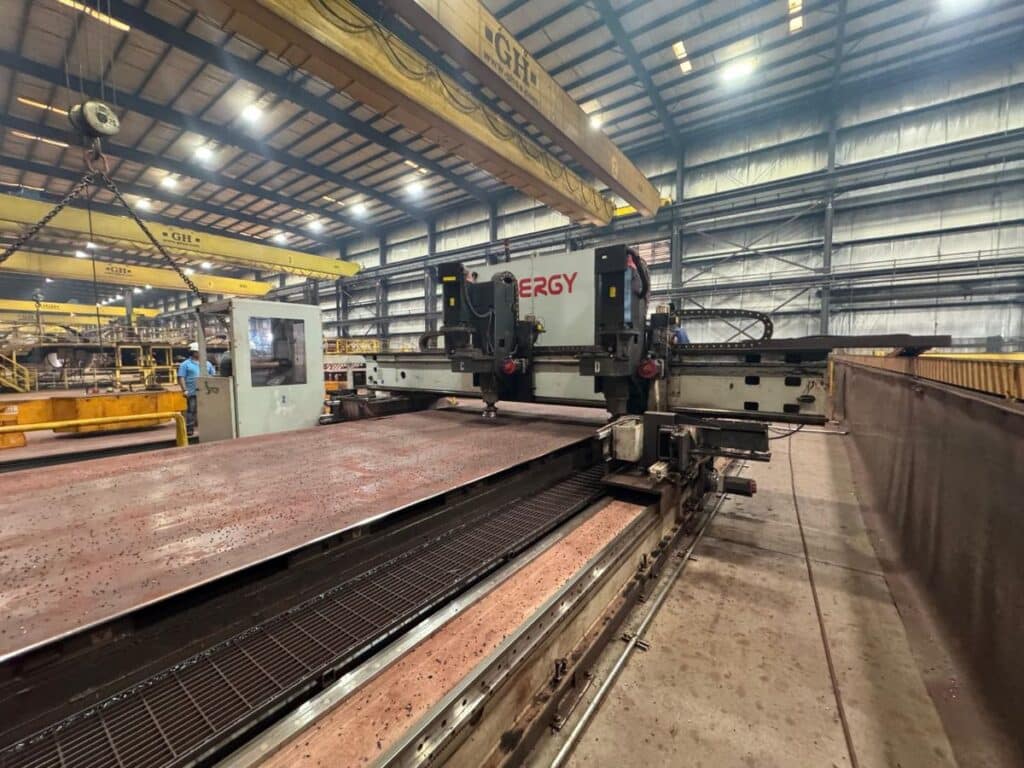

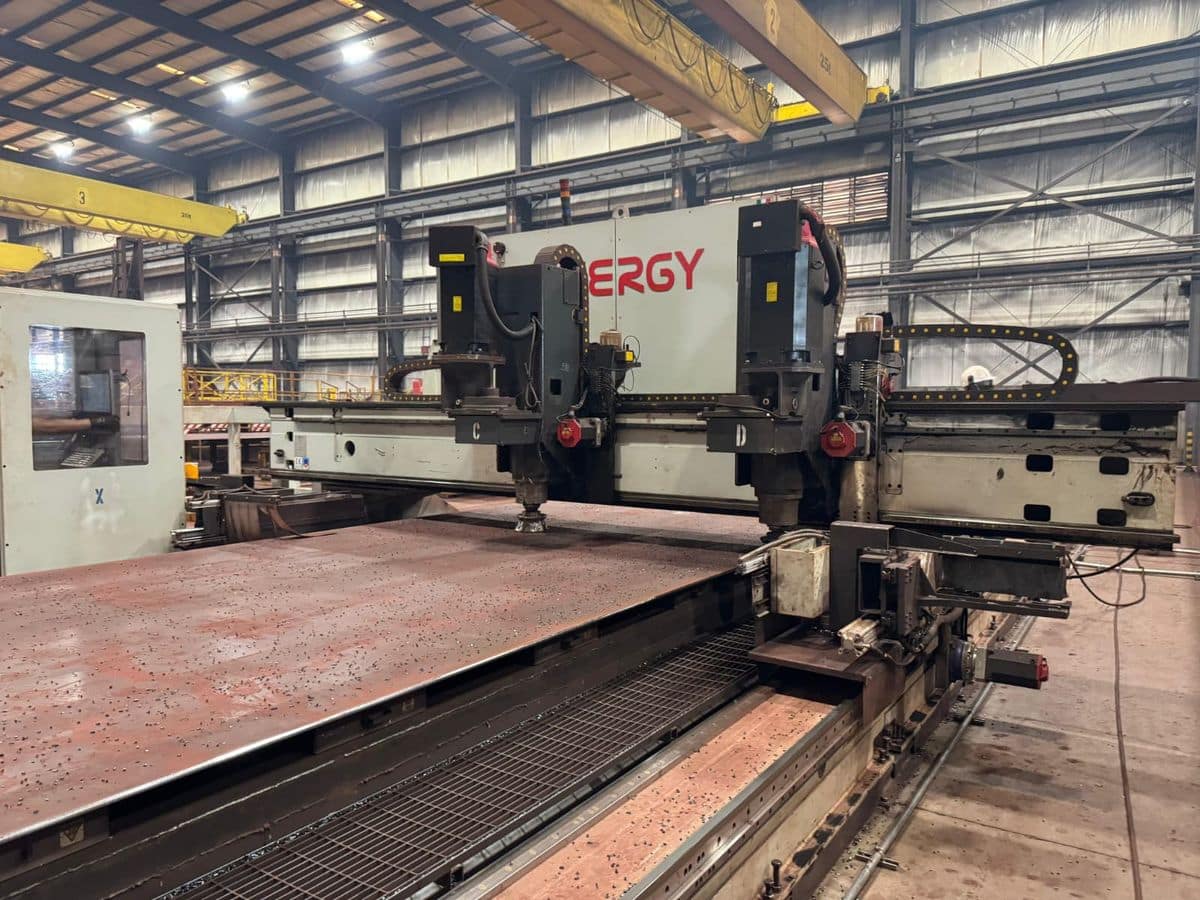

Ficep #Energy-3202GDX, CNC gantry working center for plate edge milling & drilling, 2022

$874,999 USD

Request Formal Quote

General Info
Stock #: 173250007
Location: TX
Brand: Ficep
Model: Energy 3202 GDX
Year: 2022
Approx. Shipping Weight: 25,000 KG
Loading Fee: Rigging Required
Specifications

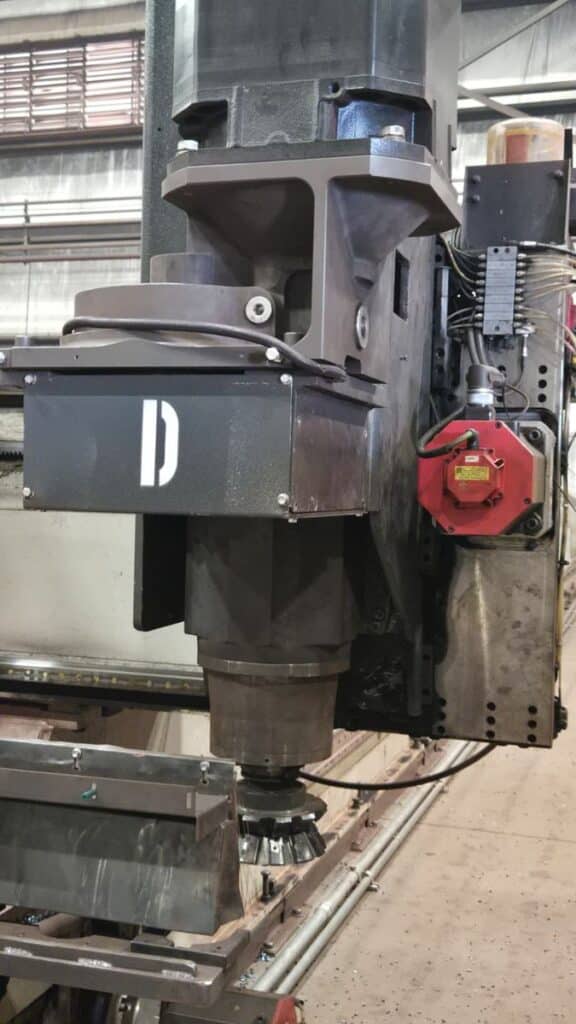

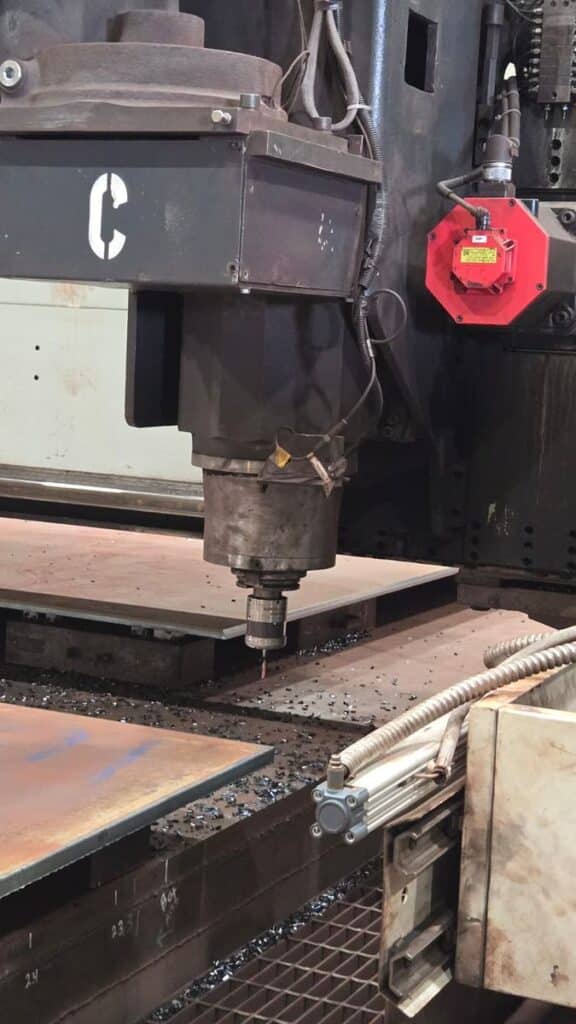

Number of Vertical Milling/Drilling Heads: 2
Plate Thickness: 10 - 140 mm
Plate Width: 100 - 3,200 mm
Plate Max Length: 28,000 mm

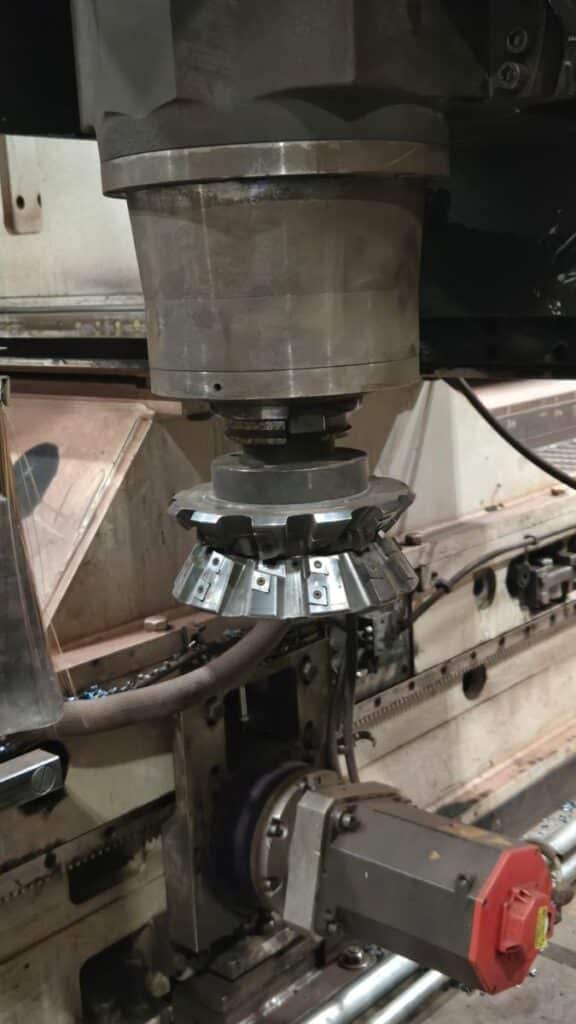

Max Diameter of Milling Tools: 300 mm
Max Drilling Thickness: 140 mm
Spindle Drive Performance (S1): 40 kW
Spindle Speed: 5,000 RPM
Spindle Drill Feed Rate: 40 - 1,000 mm/min
Spindle Fast Approach/Return Speed: 20 mt/min
C-Frame Max Longitudinal Speed: 30 m/min
Mill Heads Cross Positioning Speed: 30 m/min
Power Required: 400V / 50Hz / 3 Phase
Equipped With
Ficep Pegaso Control, 3D Graphics, 1 Spindle Per Vertical Drill Head, 2 Vertical Milling/Drilling Heads w/ 3 Positions, ISO 50 Big Plus Toolholder, On Board Distribution System, Automatic Device to Detect Piece Plate Orientation, Drilling Programming, Windows 10 Operating System
Additional Info
System is under power and available to demo.
