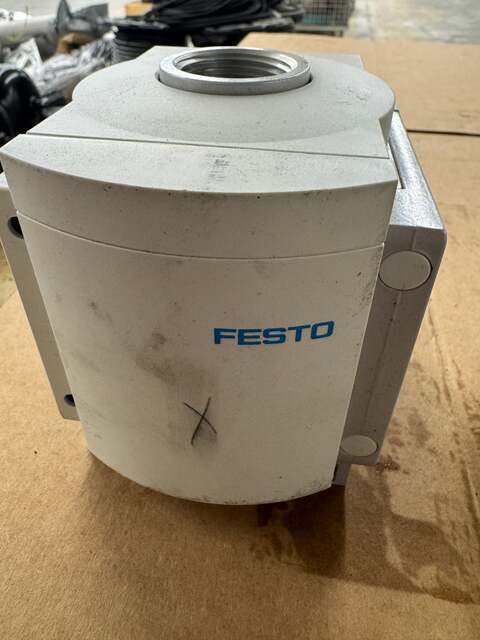

Festo Branching Module MS9-FRM-NG-VS 1 In. NPT 300 PSI m00904

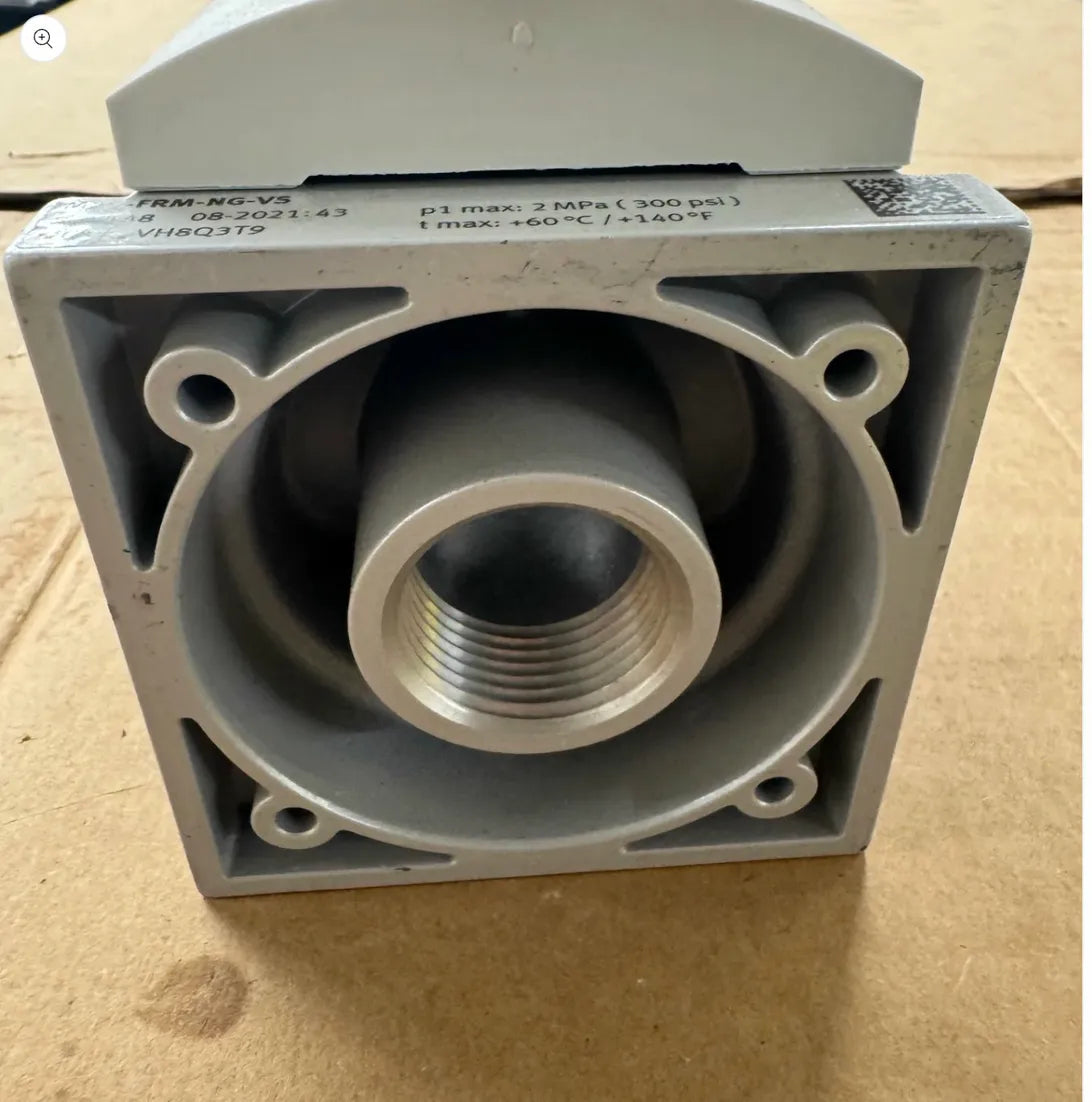

Used in compressed air preparation systems, the Festo MS9-FRM-NG-VS is a Size 9 branching module from the MS series, designed to distribute compressed air flow within a modular service unit assembly. Part number 564148, this unit features an NPT pneumatic connection with a 1 in. female thread port, a maximum inlet pressure (p1) of 2 MPa (300 psi), and a maximum media temperature of 60 degrees C (140 degrees F). The NG-VS designation identifies this variant as configured with NPT thread and an integrated PEV-1/4-B-0D pressure switch with plug socket connection per EN 175301, Type A cube configuration. Direction of flow is from left to right. The module body is constructed of reinforced PA material and carries a product weight of approximately 1,100 g per Festo published specifications. The MS9-FRM series is compatible with Festo MS9 modular service unit components and requires a connecting plate set and module connector or mounting bracket for installation within a panel or inline assembly. The MS series platform supports sizes 4, 6, 9, and 12, with Size 9 accommodating port connections in the 3/4 to 1 1/4 in. range depending on configuration.

Stock # 0326-904
