Description

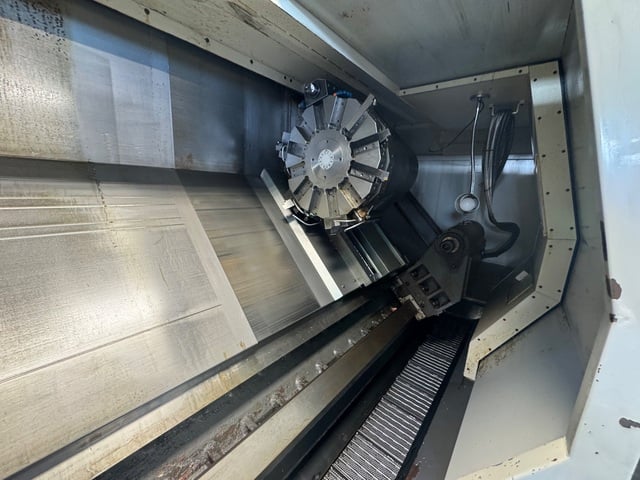

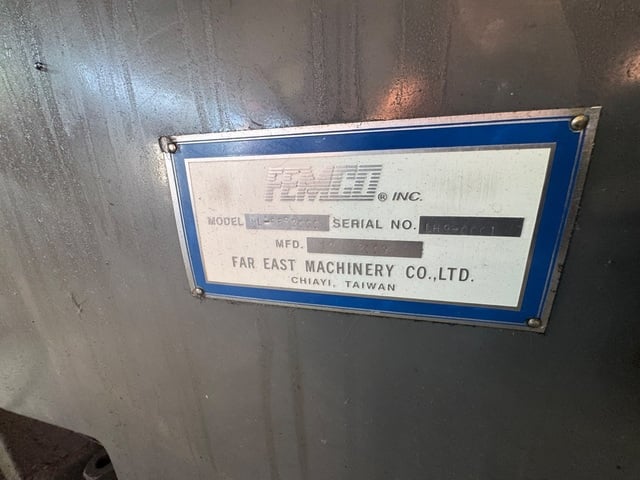

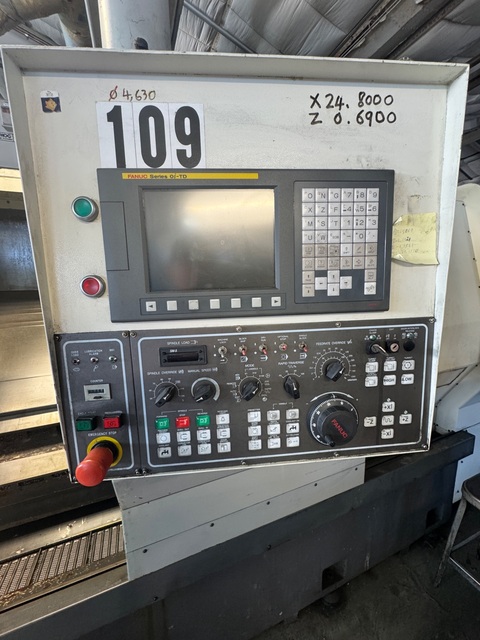

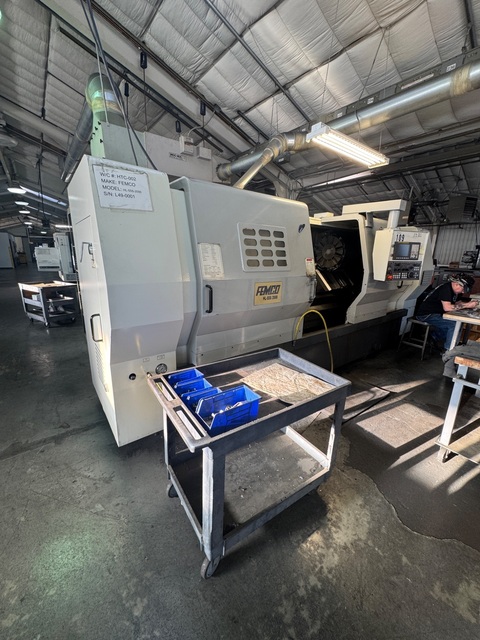

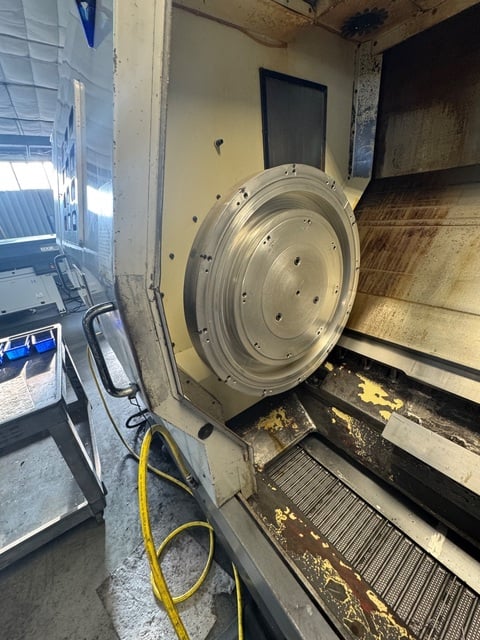

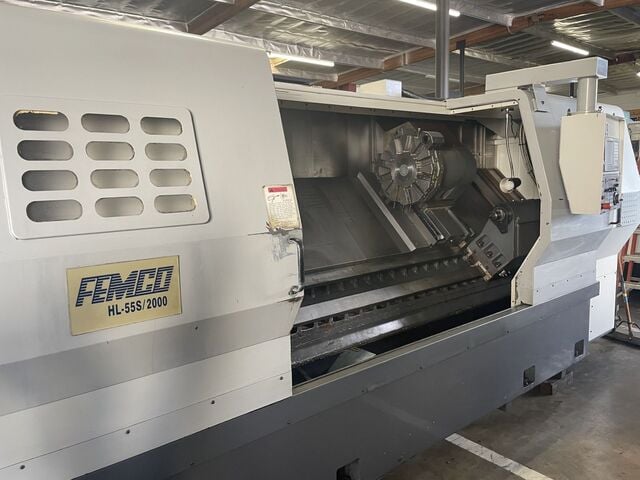

2009 FEMCO HL-55/2000 CNC Lathe #8229 SPECIFICATIONS: Max Turning Diameter: 25.4 Max Turning Length: 42.12 Max Bar Capacity: 4.65 Swing Over Bed: 28.4 Distance Between Centers: 75.5 Rapid Traverse X Axis: 472 IPM Rapid Traverse Z Axis: 591 IPM Spindle Nose: A2-11 Spindle Bore: 5.2 Spindle Speed: 25-2500 RPM Spindle Motor: 35 HP Turret Capacity: 12 Stations Turret Index Time: 1 Second Tailstock Body Travel: 14.3 Tailstock Quill Dia.: 3.54 Tailstock Quill Stroke: 4.72 Tailstock Taper: MT-5 Power Source: AC 220 V, Three Phase, 60 Hz EQUIPPED WITH: 12-Station Turret Fanuc 0i-TD CNC Control 15 Hydraulic Chuck Hydraulic Tailstock with Power Quill Chip Pan Coolant System Automatic Lubrication system Foot Operated Control for Chuck and Tailstock Box Way Heavy Duty Construction
Used Hyundai Wia L400LC (2012) CNC Lathe for Sale. This box way turning center carries a 15″ chuck with 4.6″ bar capacity, 28.5″ swing and 24.8″ maximum turning diameter, with 83.5″ between centers. The 50 HP spindle turns to 2,000 RPM and is run through a Fanuc Oi control, with a 10 ...more
CNC Lathe in used condition. s a swing of 30.3", machining length of 44.7", and 15" chuck size. Fanuc Series i, manual steady rest, auto tool presetter, 2-axis, and chip conveyor., Rapid Traverse X-Axis 590 IPM, Rapid Traverse Z-Axis 710 IPM, Turret 12 Station.
Swing 26.8" 680.72 mm Chuck Size 15" 381 mm Bar Capacity 4.52" 114.81 mm Power 50 hp 37.3 kW Max RPM 2,400 RPM 2,400 RPM Turning Dia 24.8" 629.92 mm Tailstock Yes Yes Control CNC (Fanuc 0i) CNC (Fanuc 0i) Weight 17850 lbs 17850 lbs.
