Description
Description

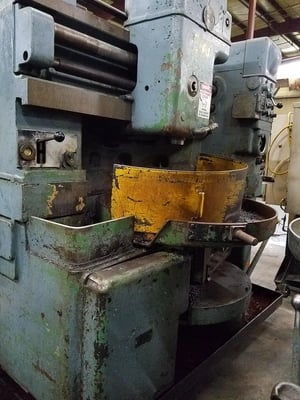

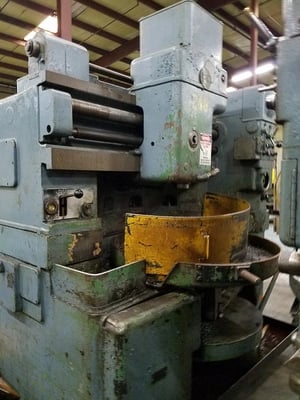

Fellows model 36-6 Gear shaper, 40" max Diameter, 6" stroke capacity, equipped with 6" riser assembly, 4" spindle diameter, inspect in Statesville, NC under power.
Specifications
Fellows Gear shaping machine
Model 36-6
S/N 26558
equipped w/ 6" Riser assembly
This fellows model 36-6 machine will be gone through and adjusted as
required, entire machine has already been inspected and workload required
is understood for customer to receive a good running machine; 2 weeks of
work and another week for cleaning and painting for a total of 3 weeks from
receipt of order and down payment.
MACHINE SPECIFICATIONS:
* Maximum Pitch Diameter External........................................40"
* Maximum Pitch Diameter Internal........................................36"
* Maximum Workpiece & Fixture Diameter...................................42"
* Maximum Face Width......................................................6"
* Stroke Length...........................................................6"
* Maximum Helix Angle................................................45 deg
* Maximum Diametral Pitch
-For Spur Gears........................................................3 DP
-For Helical.........................................................4/5 DP
* Work Spindle Bore Diameter..........................................5.875"
* Twelve (12) Stroking Speeds, w/ranges..........................18-300 spm
* Machine Dimensions......................................92" x 60" x 110"H
* Machine Weight, Approx.........................................19,000 Lbs
Machine Is Equipped With:
6" Riser Assembly
4" spindle diameter
Misc. Change Gears
1 Cutter Adapter
Machine Guarding
operators Manual
Machine can be inspected under power with proper notice. Additional adaptors
can be purchased if required. Send us your part prints to confirm what you
require on this machine. Please note above that this machine will require 3
weeks to complete from receipt of order. Standard silver white or machine
gray colors are available at No additional cost for this machine.
Fellows model 36-6 Gear shaper, 40" max Diameter, 6" stroke capacity, equipped with 6" riser assembly, 4" spindle diameter, inspect in Statesville, NC under power.
Specifications
Fellows Gear shaping machine
Model 36-6
S/N 26558
equipped w/ 6" Riser assembly
This fellows model 36-6 machine will be gone through and adjusted as
required, entire machine has already been inspected and workload required
is understood for customer to receive a good running machine; 2 weeks of
work and another week for cleaning and painting for a total of 3 weeks from
receipt of order and down payment.
MACHINE SPECIFICATIONS:
* Maximum Pitch Diameter External........................................40"
* Maximum Pitch Diameter Internal........................................36"
* Maximum Workpiece & Fixture Diameter...................................42"
* Maximum Face Width......................................................6"
* Stroke Length...........................................................6"
* Maximum Helix Angle................................................45 deg
* Maximum Diametral Pitch
-For Spur Gears........................................................3 DP
-For Helical.........................................................4/5 DP
* Work Spindle Bore Diameter..........................................5.875"
* Twelve (12) Stroking Speeds, w/ranges..........................18-300 spm
* Machine Dimensions......................................92" x 60" x 110"H
* Machine Weight, Approx.........................................19,000 Lbs
Machine Is Equipped With:
6" Riser Assembly
4" spindle diameter
Misc. Change Gears
1 Cutter Adapter
Machine Guarding
operators Manual
Machine can be inspected under power with proper notice. Additional adaptors
can be purchased if required. Send us your part prints to confirm what you
require on this machine. Please note above that this machine will require 3
weeks to complete from receipt of order. Standard silver white or machine
gray colors are available at No additional cost for this machine.
Get Your Price from Piselli Enterprises!
