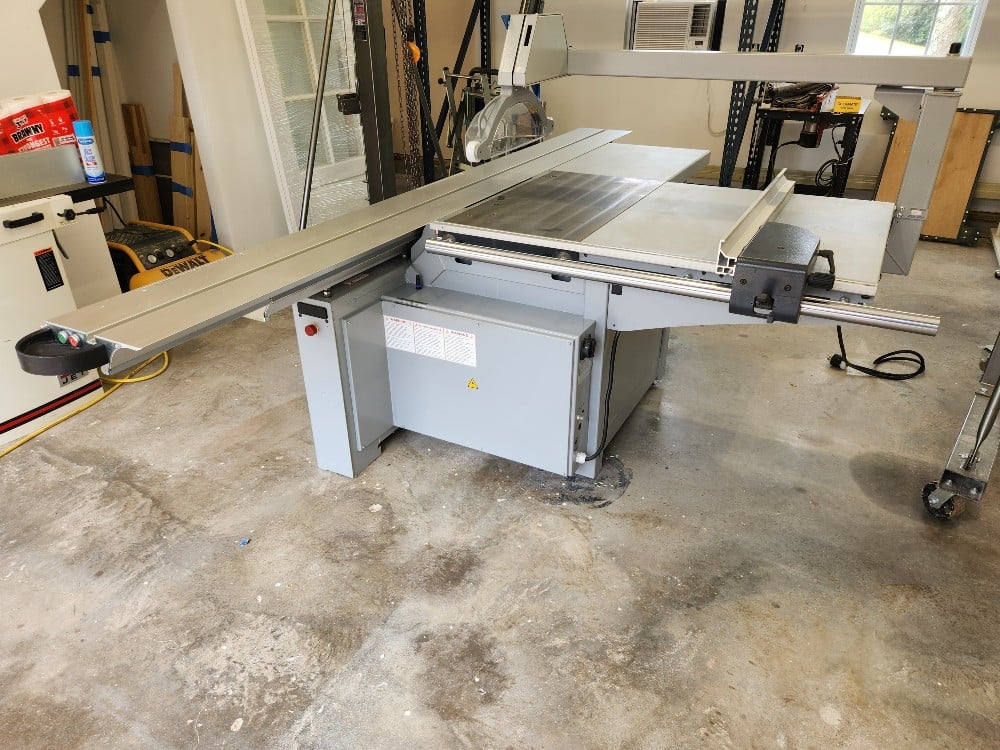

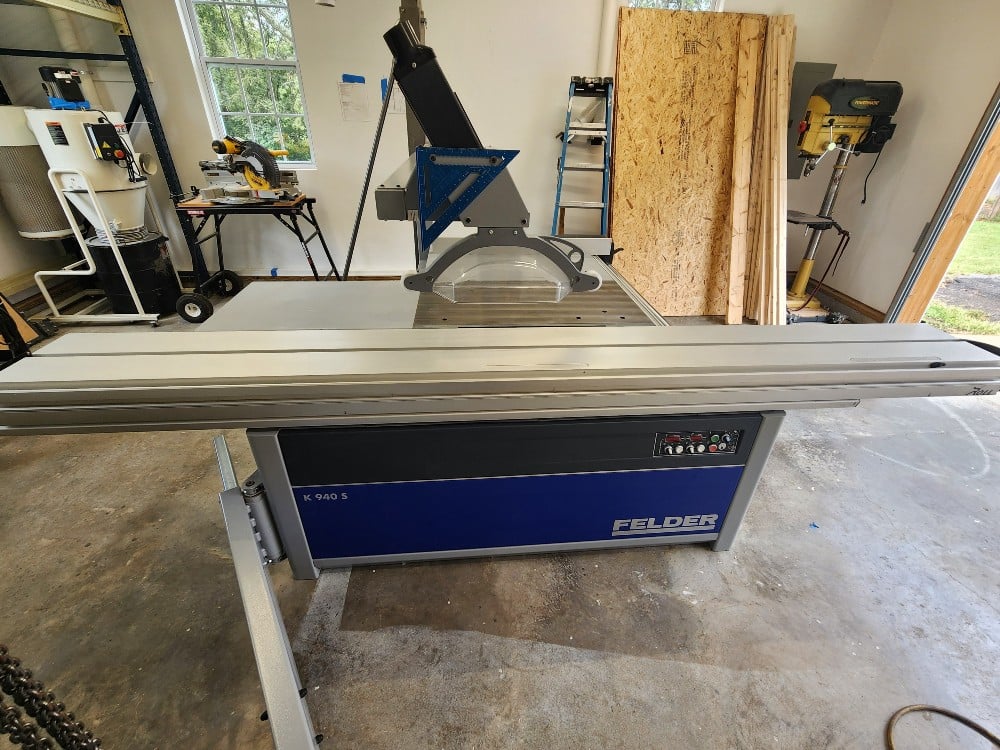

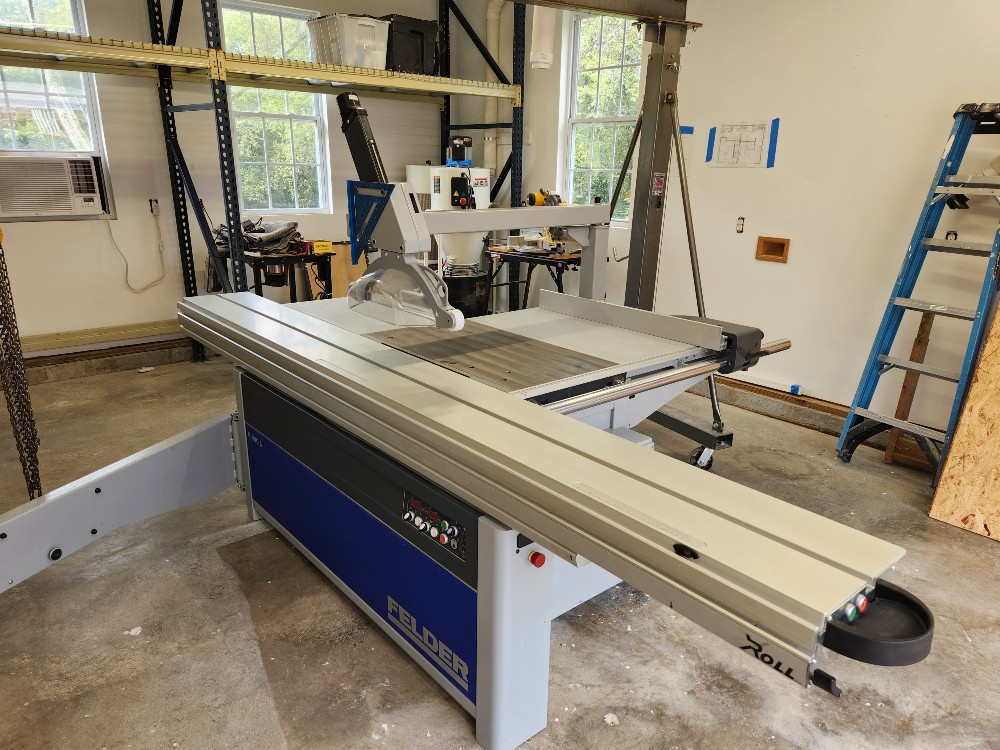

Felder #940S, Circular Saw, 400mm (15.7" ) Blades, 10 HP, w-Scoring, 3 phase, 230 Volts

Estimated monthly payment valid upon approved credit.

Request Formal Quote

All records intact, receipts, cross-cut table option with trolley, extra Felder full size & scoring blades.
Immaculate condition, 200 hours, all powered-electric adjustments, ultra precision esp. on large panels or timbers:

K 940S W- Sliding Table &Scoring:
Pivoting saw unit 90.45°
Saw blade D= 250-400 mm, cutting height max 133 mm electronic height adjustment
Speed display for 3 speeds
Crosscut fence 2600 mm (102") with mounting set for for outrigger 1300/1500
Limit switch dust cover
Limit switch
Machine base-frame K 940S, saw table off Cast iron tools
CE+Confirmity + BG-Dust Declaration
(K915/975)
Electrical angle adjustment
Flange set for Dados
Imperial scale display readout
Circular saw fence with fine adjustment Round bar guide with ruler
Scoring unit with motor 3 x 230 V, 1.1 kW 50/60 Hz (8500/10200 U/min)
for Scoring blade D=120 mm (An-Grau)
On and off switch on the
sliding table
Sliding table, Table length 3200 mm Anodised
10 years Felder warranty on the
"X-Roll" sliding table guiding system!
Outrigger table 1500 for cutting length 2500 3200 mm, Table size 1150 x 640 mm
Sliding table packing 3200 mm
Inch scales for crosscut fence 2600
Rip capacity 1,250mm
Overhead saw guard (rip capacity 1,250 mm), hood for 90° and hood for angled cuts are height-adjustable and can be pivoted away fr the working area, saw blade diameter 400mm, Vacuum connector D.80 mm
Inchscale for parallel cutting width 49.2"
Electric sliding table saw 3x230V, 60Hz, 5.5 (7.5HP) S6/4kW (5.5HP) S1, SD Start, US with brake (W-Alu)
3 Speeds 3500/4500/5500 rpm, 60Hz
Digital display for height and angle Operating manual K 940S, English

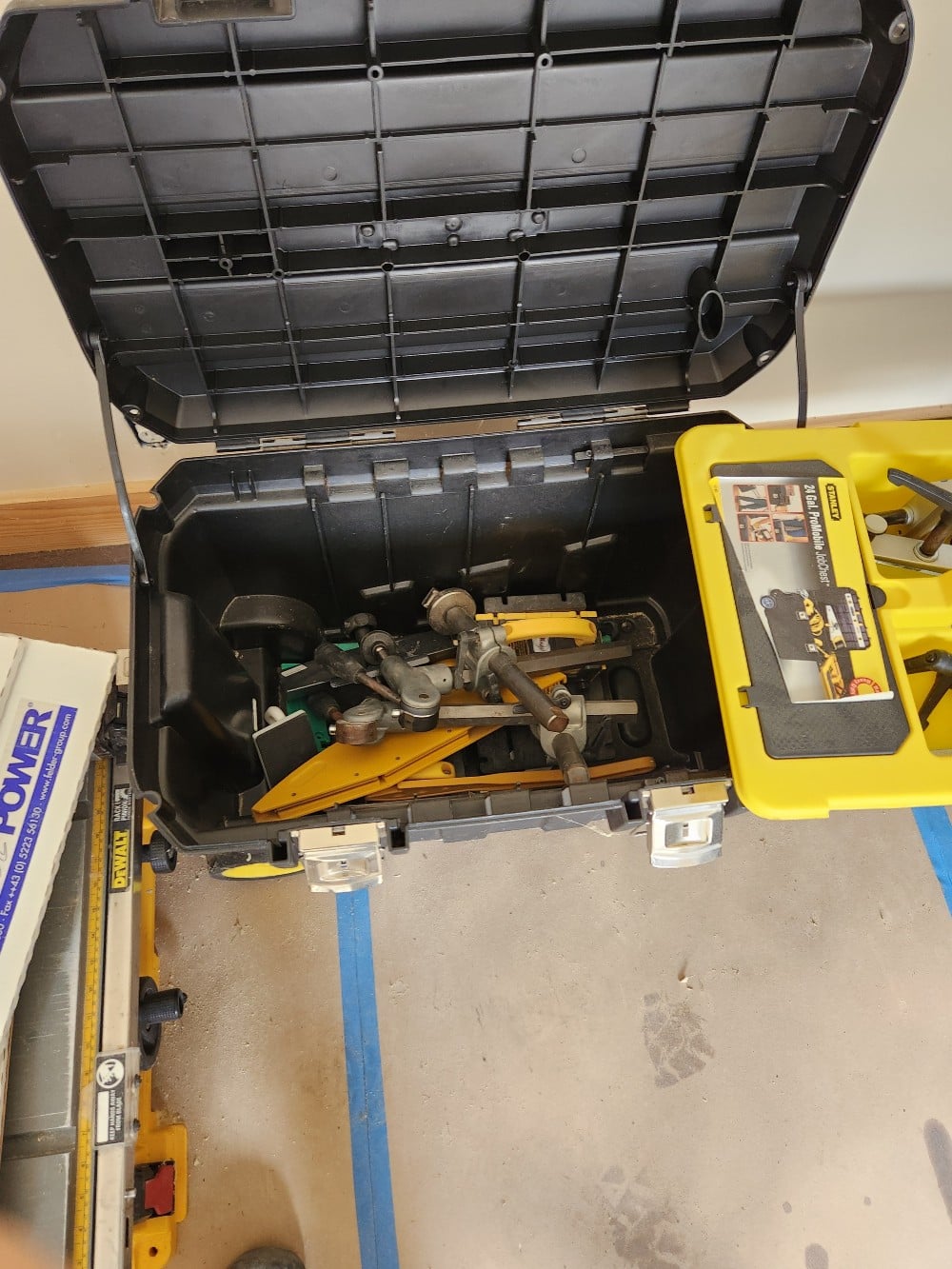

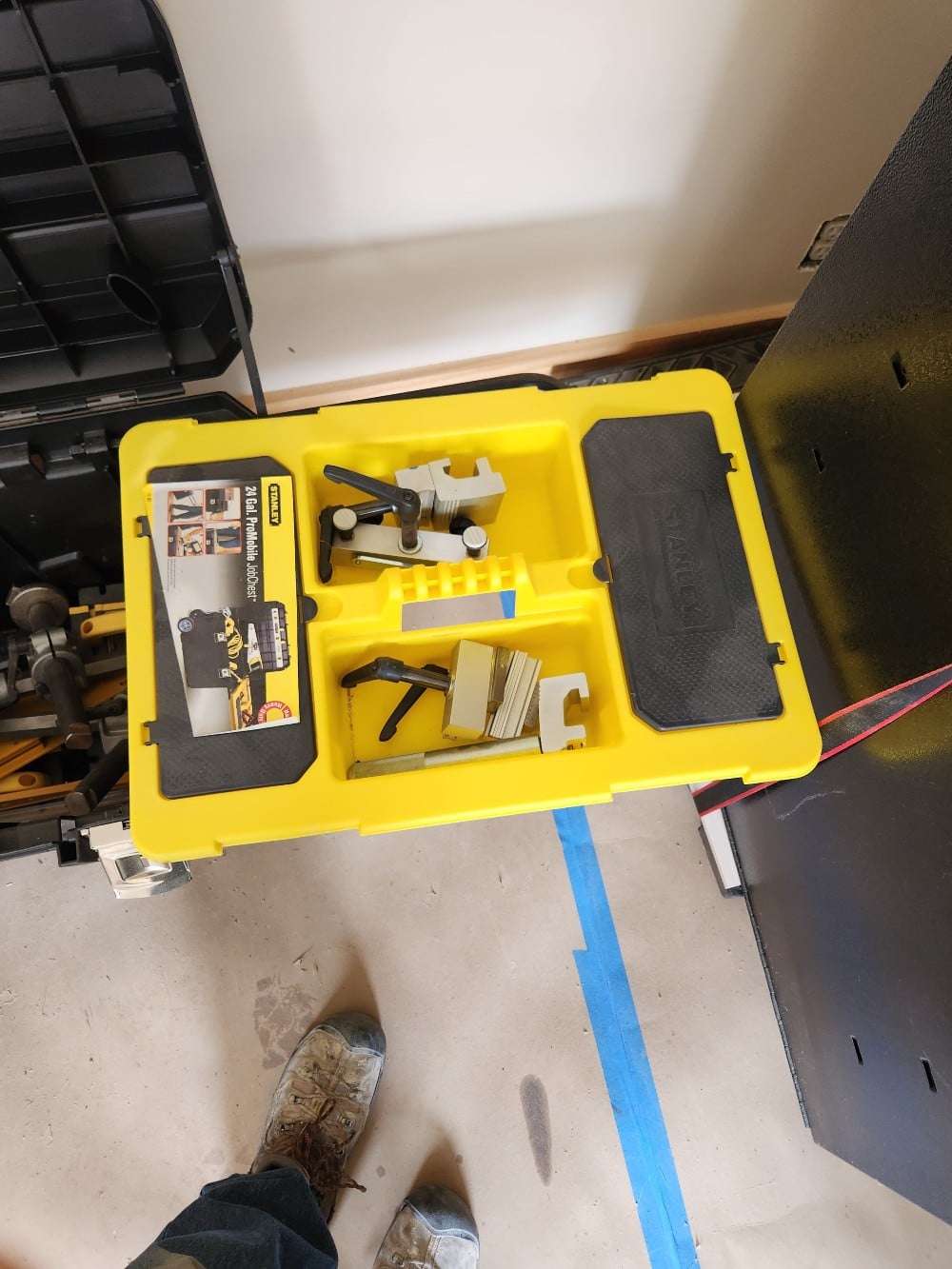

ACCESSORIES:
Crosscut fence 1100 mm (Model 430,
scale in mm)
Mounting set for sliding table X-Roll
Pin Locating option system estimate
Parallel cutting device for sliding
table X-Roll
SPARE PART FOR WOODWORKING MACHINE PARALLELANSCHLAGSKALA LT.Z. 420-007-030B UNTERELOXAL SCHWARZ, NATUR ELOXIERT, MM UND
System table extension with F-coupling
ANODISED
length = 500mm, width = 300mm
with dove-tail and square-link-system
Additional sliding table handle for
sliding table X-roll
Eccentric clamp with clamping shaft M 20
Mounting set for eccentric clamps
Added Accessories:
Adjustable TCT scoring saw blade D=120mm
W=2.8-3.6mm d=20mm 12+12T
1 pcs.T-slot block, M10 threded hole
for all ALU panel sliding tables
Eccentric clamp with clamping shaft M 20 Mounting set for eccentric clamps
Combined ball and roller stand
roller width 365/395 mm,
height adjustable 730 - 1200 mm,
max. support weight 80 kg

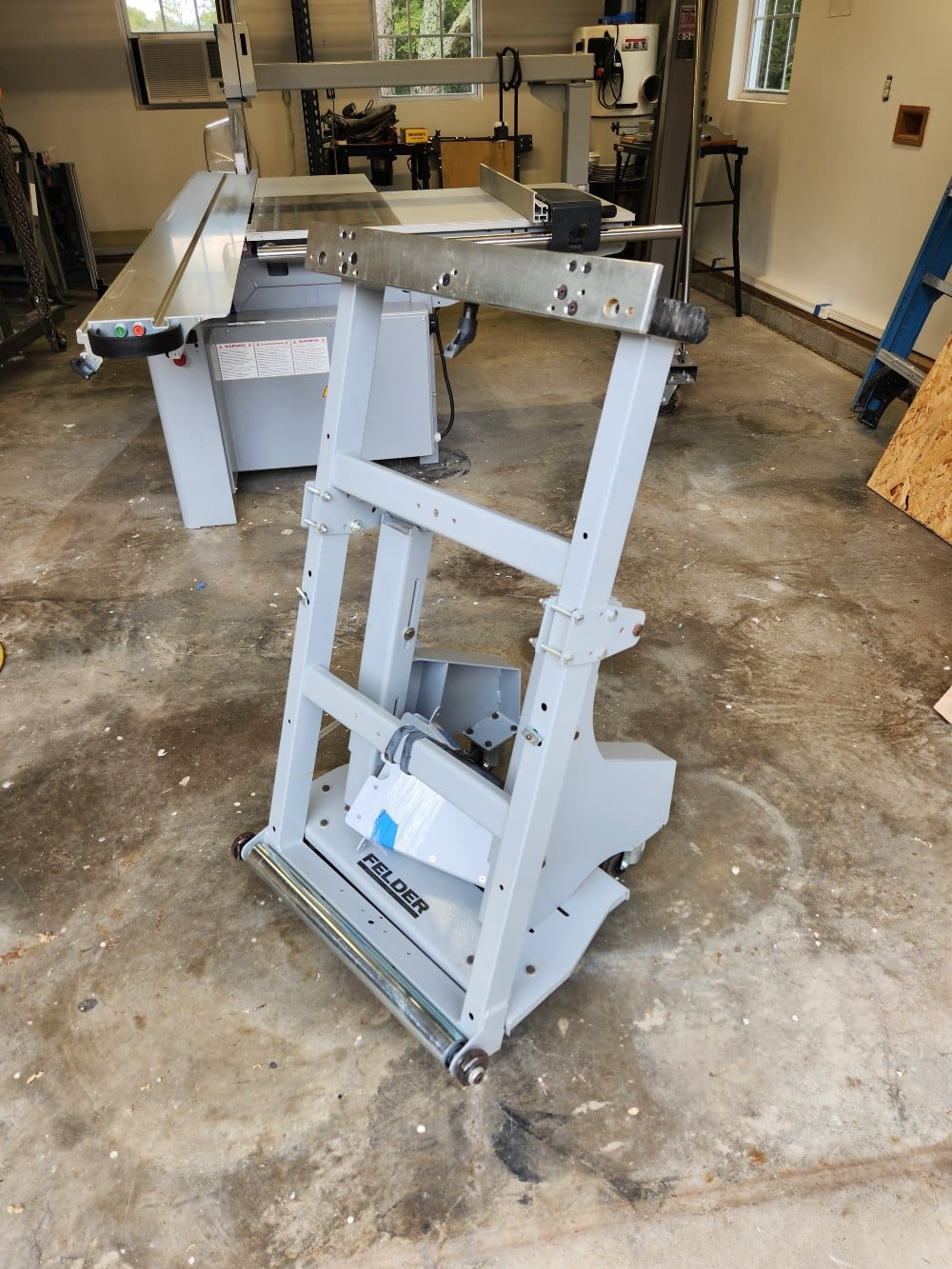

Transport and mounting unit for
outrigger tables
Additional support for outriggertable universal for FELDER and Format4

BLADES:
TCT gang rip saw blade D=400m
W=4.0/2.8mm d=30mm 28T FT
TCT universal saw blade D=400mm
W=4.0/2.8mm d=30mm 60T ATB
TCT fine sizing saw blade D=350mm
W=3.5/2.5mm d=30mm 108T ATB

FREIGHT:
Add $600 for Palletting & Prep
Shipping cost to be determined by Carrier
Loading avail. on-site for Buyer pick-up via flatbed trailer up to 7 ft. w & 24" deck ht.
Sales tax to be paid by Buyer if applicable
