For Sale by B & B Oilfield Services
Description

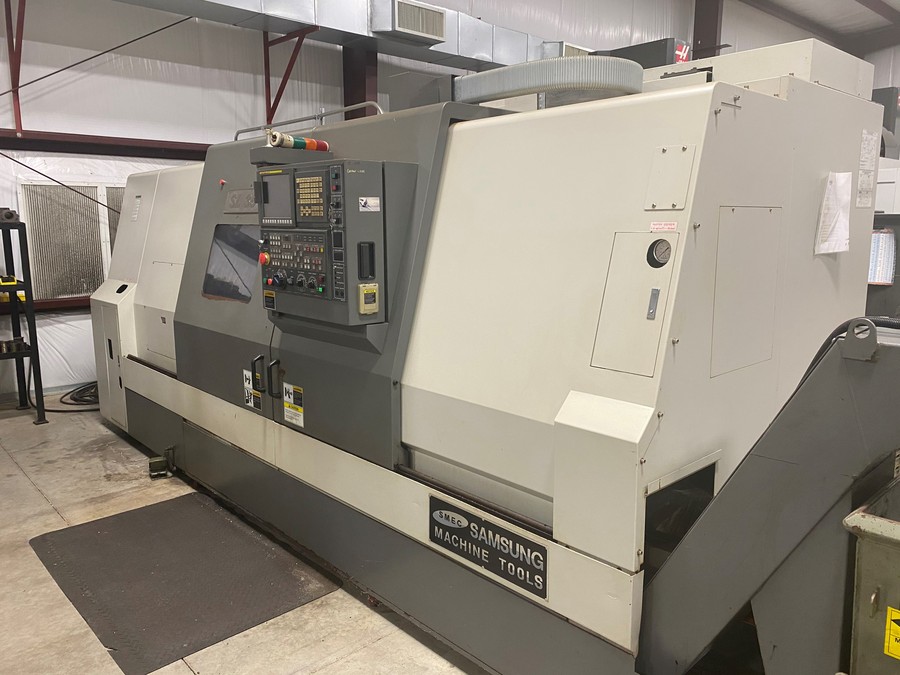

Samsung SL-35A 1500 Lathe 2-axis
Capacity: Swing 23.62”
Swing Over Cross Slide 16.73”
Max Machining Dia 16.5”
Max Length 60.0”
Spindle: Spindle Speed Max 2000
Gear Box 2 speed
Bar Capacity 4.6”
Main Motor 30 hp
Turret: No. of positions 10
Tailstock #5 MT Programmable
Chuck Diameter 15” hydraulic
Hole Thru 4.6
No. of Jaws 3
Equipped With: Fanuc 0-iTD CNC control
Chip Conveyor
Tool Pre-setter
15” 3-jaw hydraulic chuck
Dimension: 232” x 73” weight, 19,800 lbs
Misc Boring bar holders
Hard Jaws, Misc Soft Jaws
Box Ways Construction
Inquire Further with B & B Oilfield Services!
