56" x 240" Farrel-Betts, lathe w/live spindle & C-Axis, Fanuc 0iTD, rebuilt & retrofit 2015

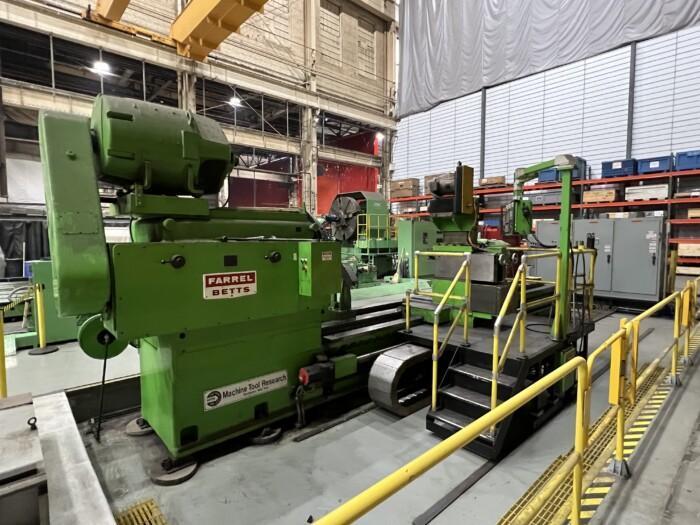

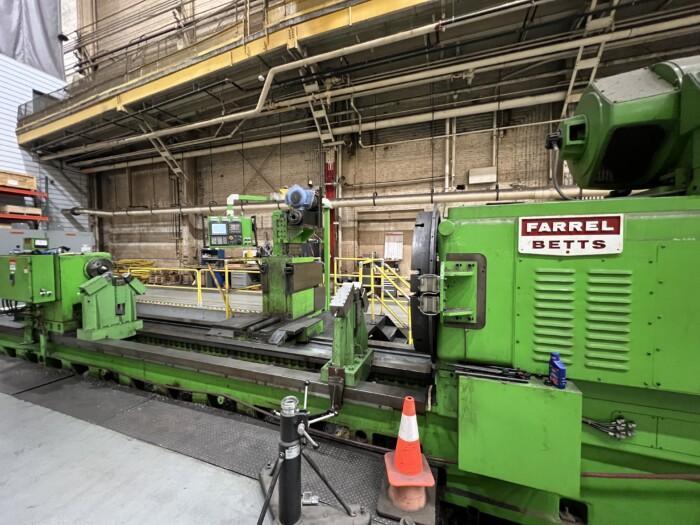

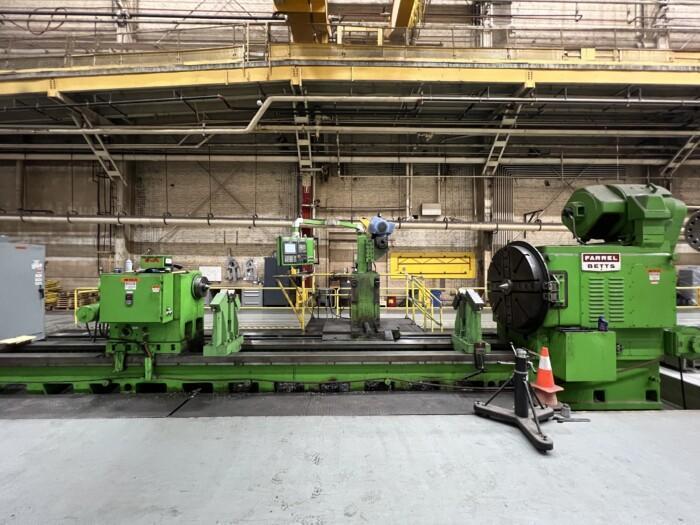

Farrel 56" x 240" CNC Lathe w/ Live Spindle & C Axis

Stock #20202-IS

Serial No.: 14M1485

Year: 2015 Rebuild & Retrofit

Specifications:

Swing Over Bed Ways 56"

Swing Over Carriage 45"

Distance Between Centers 240"

Maximum Weight Capacity 50 Tons (100,000 Lbs.)

Spindle Speeds 2 - 256 RPM

Spindle Motor 75 HP

Faceplate Diameter 48" (4 top jaws)

Cross Slide Travel 15"

Tool Slides (2) 2" Wide (KM, CAPTO, etc.)

Tool(s) Slide Travel 12"

Quill Diameter 12"

Quill Travel 12"

Milling Spindle Speeds 0 - 500 - 1000 (10 HP)

Equipped With:

Fanuc 0i-TD CNC Control (2015)

Heidenhain Linear Scales

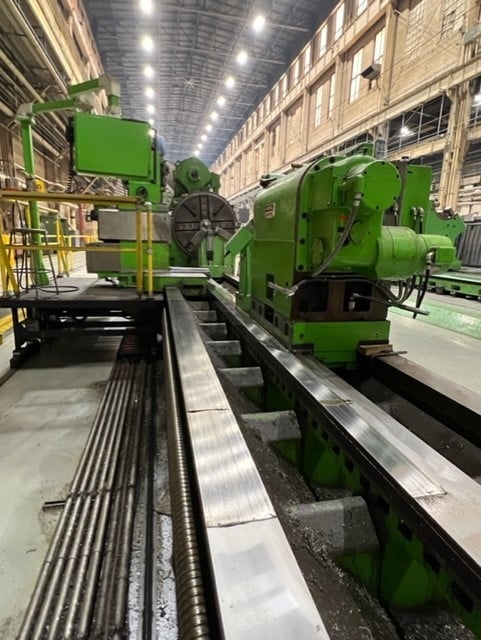

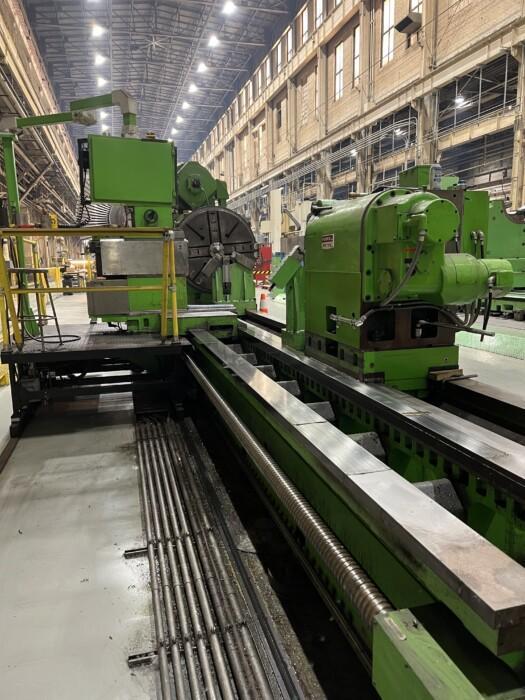

4 Bed Ways (Carriage Can Pass the Tailstock)

75 HP Spindle Motor w/ Encoder (Special low speed option allows the spindle to index slowly for the operator to line up his work by eye to the mill. Once positioned properly, the faceplate can be clamped in position for linear milling with the Z carriage axis. Using the spindle positioning option in the control, the position of the faceplate is displayed for reference)

Ballscrews on Carriage & Cross Slide

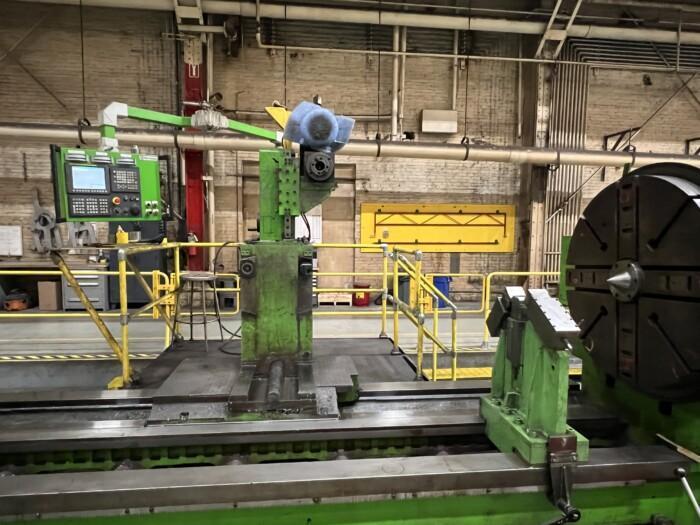

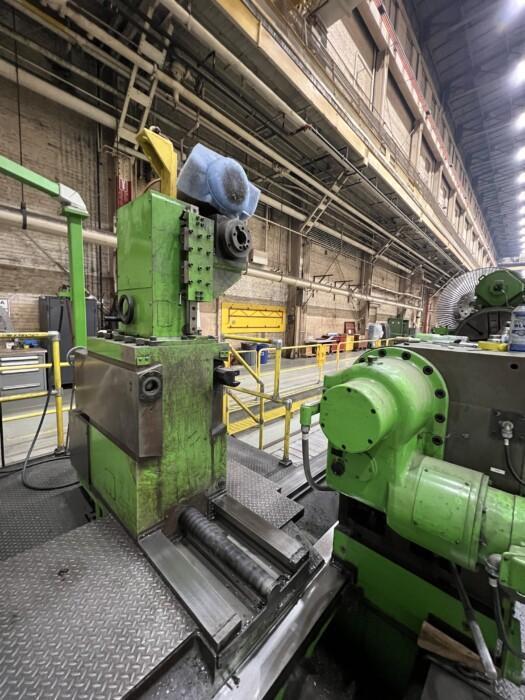

Y Axis Milling Tower w/ 10 HP Spindle (manual 10″ handwheel adjustment)

(2) 2″ Wide Tool Slides

*Complete MTR (OEM) Rebuild Specifications Available Upon Request.

*The machine has run very low production turbine components since the rebuild.
