Description
FARNHAM FORMING ROLL
Model 1558-E
SPECIFICATIONS
CAPACITY:
Overall Length of Rolls 15’ (180")(4,572mm)
Radius, Minimum 0.6250" (15.875mm)
Thickness 0.60" (15.24mm)
ROLL DIAMETER:
Top Roll 1" (25.4mm)
Bottom Rolls 1-11/16" (42.8625mm)

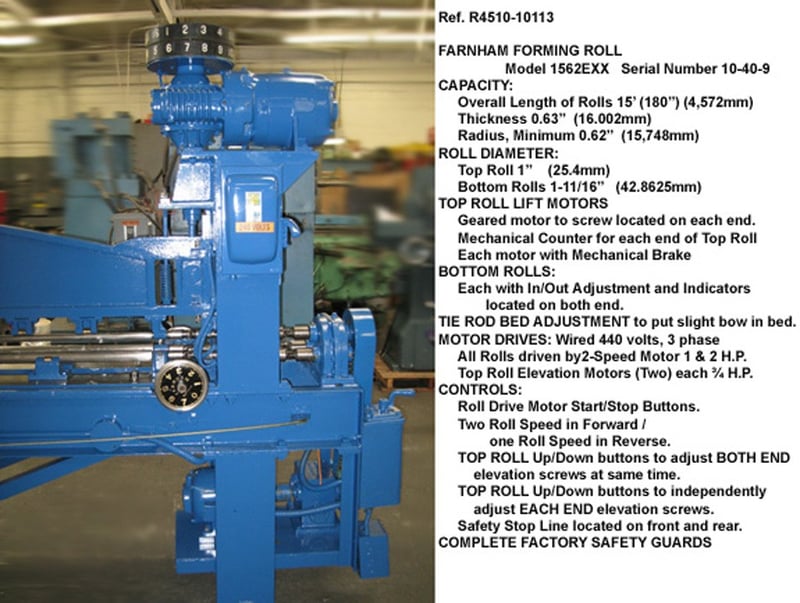

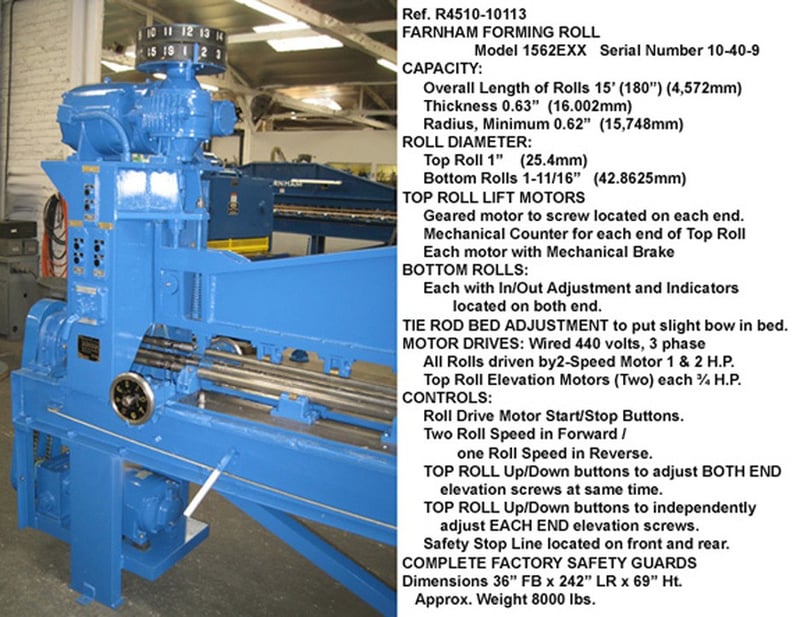

TOP ROLL LIFT MOTORS
Geared motor to screw located on each end.
Mechanical Counter for each end of Top Roll
Each motor with Mechanical Brake
BOTTOM ROLLS:
Each with In/Out Adjustment and Indicators located on both end.
TIE ROD BED ADJUSTMENT to put slight bow in bed.

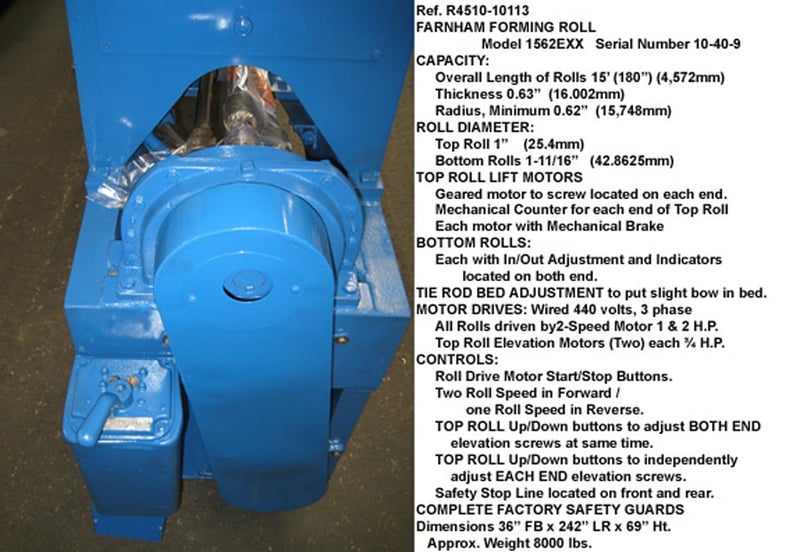

MOTOR DRIVES: Wired 440 volts, 3 phase
All Rolls driven by 2-Speed Motor 1 & 2 H.P. 440 volts
Top Roll Elevation Motors (Two) each 2 & ¾ H.P. 440 volts

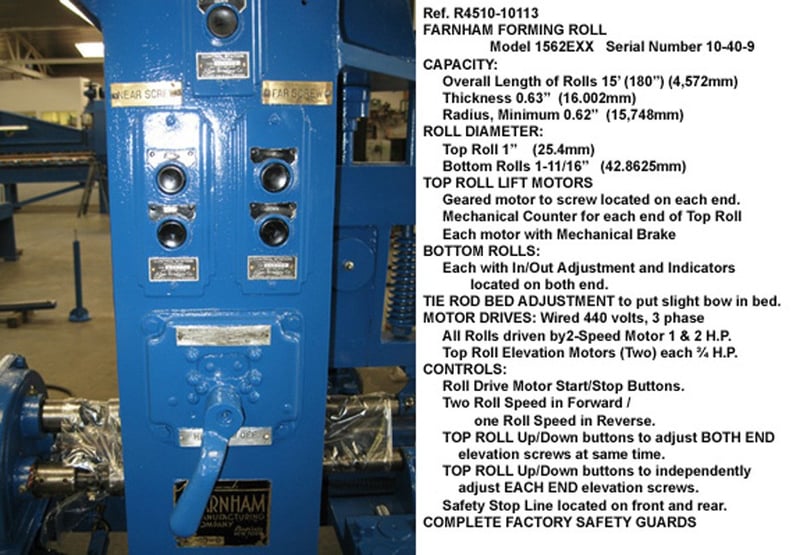

CONTROLS:
Roll Drive Motor Start/Stop Buttons.
Two Roll Speed in Forward/ one Roll Speed in Reverse.
TOP ROLL Up/Down buttons to adjust BOTH END elevation screws at same
time.
TOP ROLL Up/Down buttons to independently adjust EACH END elevation
screws.
Safety Stop Line located on front and rear.
COMPLETE FACTORY SAFETY GUARDS
Dimensions 36" FB x 242" LR x 104" Ht. Approx. Weight 8000 lbs
Model 1558-E
SPECIFICATIONS
CAPACITY:
Overall Length of Rolls 15’ (180")(4,572mm)
Radius, Minimum 0.6250" (15.875mm)
Thickness 0.60" (15.24mm)
ROLL DIAMETER:
Top Roll 1" (25.4mm)
Bottom Rolls 1-11/16" (42.8625mm)
TOP ROLL LIFT MOTORS
Geared motor to screw located on each end.
Mechanical Counter for each end of Top Roll
Each motor with Mechanical Brake
BOTTOM ROLLS:
Each with In/Out Adjustment and Indicators located on both end.
TIE ROD BED ADJUSTMENT to put slight bow in bed.
MOTOR DRIVES: Wired 440 volts, 3 phase
All Rolls driven by 2-Speed Motor 1 & 2 H.P. 440 volts
Top Roll Elevation Motors (Two) each 2 & ¾ H.P. 440 volts
CONTROLS:
Roll Drive Motor Start/Stop Buttons.
Two Roll Speed in Forward/ one Roll Speed in Reverse.
TOP ROLL Up/Down buttons to adjust BOTH END elevation screws at same
time.
TOP ROLL Up/Down buttons to independently adjust EACH END elevation
screws.
Safety Stop Line located on front and rear.
COMPLETE FACTORY SAFETY GUARDS
Dimensions 36" FB x 242" LR x 104" Ht. Approx. Weight 8000 lbs
