FANUC Servo Motor A06B-0315-B003 - Variable 2000 RPM

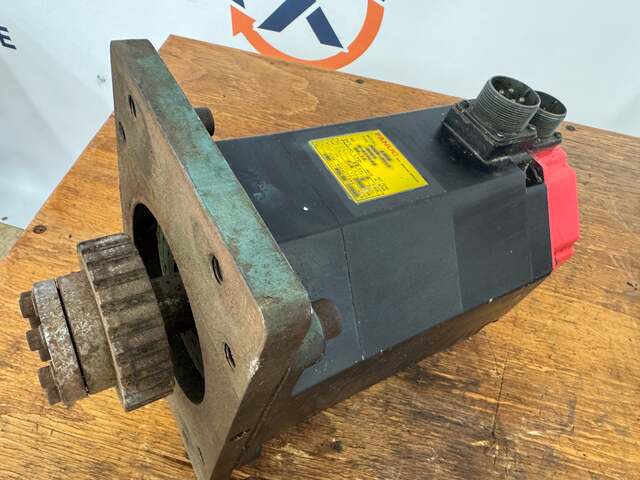

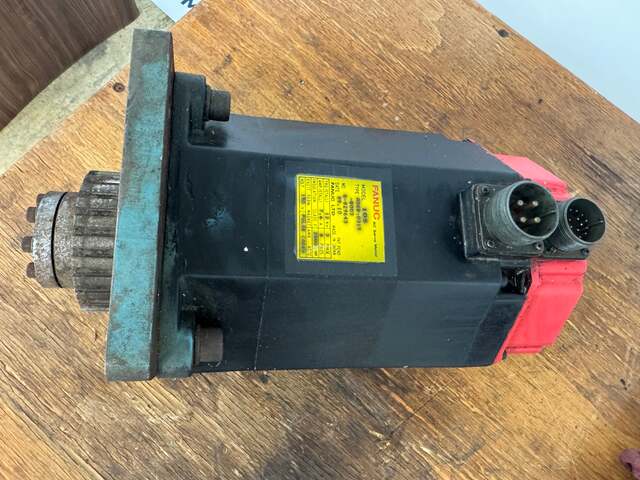

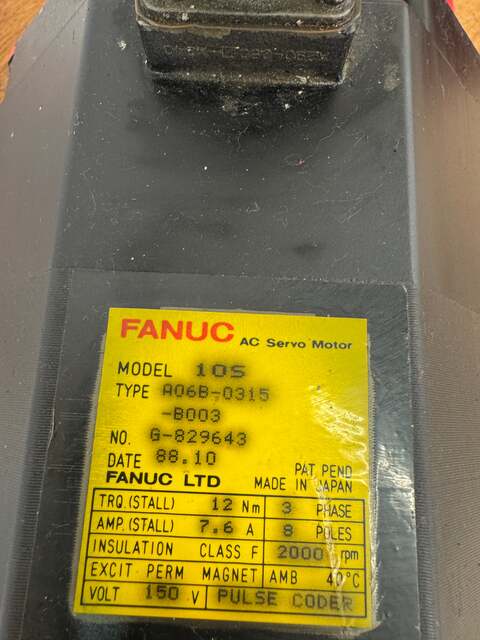

The Fanuc A06B-0315-B003 is an AC servo motor from the Model 10S series, manufactured by Fanuc Ltd. in Japan. This unit carries serial number G 829643 with a manufacture date of October 1988. The motor is rated at 150 volts, 3 phase, with 8 poles and operates at 2000 rpm. Stall torque is rated at 12 Nm with stall current of 7.6 amps. The excitation is permanent magnet type, and the windings carry a Class F insulation rating with an ambient temperature rating of 40 degrees C. Integrated into the rear of the motor is a Fanuc pulse coder providing position and velocity feedback for closed loop servo control. The 10S series motors were widely deployed across legacy Fanuc CNC systems including System 6, System 10, System 11, and early System 15 platforms, used as feed axis drives on machining centers, turning centers, grinders, and EDM equipment. The straight shaft output and red cap housing are characteristic of this generation of Fanuc AC servo motors. The nameplate indicates Patent Pending status at the time of manufacture. This motor is commonly paired with Fanuc velocity control units and servo amplifier modules from the A06B and A20B series. Suitable as a direct replacement or spare for installed Fanuc 10S applications, or for rebuilders and repair facilities servicing legacy CNC machine tools. Identification is based on direct nameplate inspection. Specifications listed reflect data printed on the motor rating plate.

Stock # 0226-136
