Fanuc Servo Amplifier Unit A06B-6089-H105

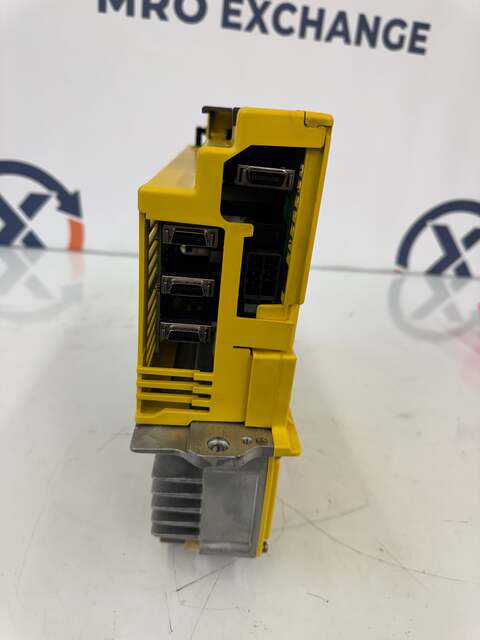

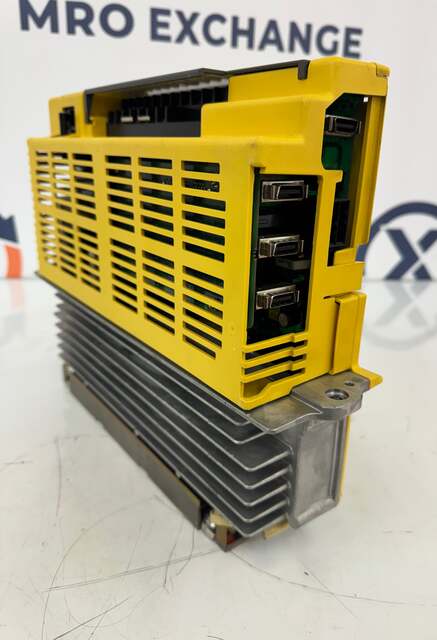

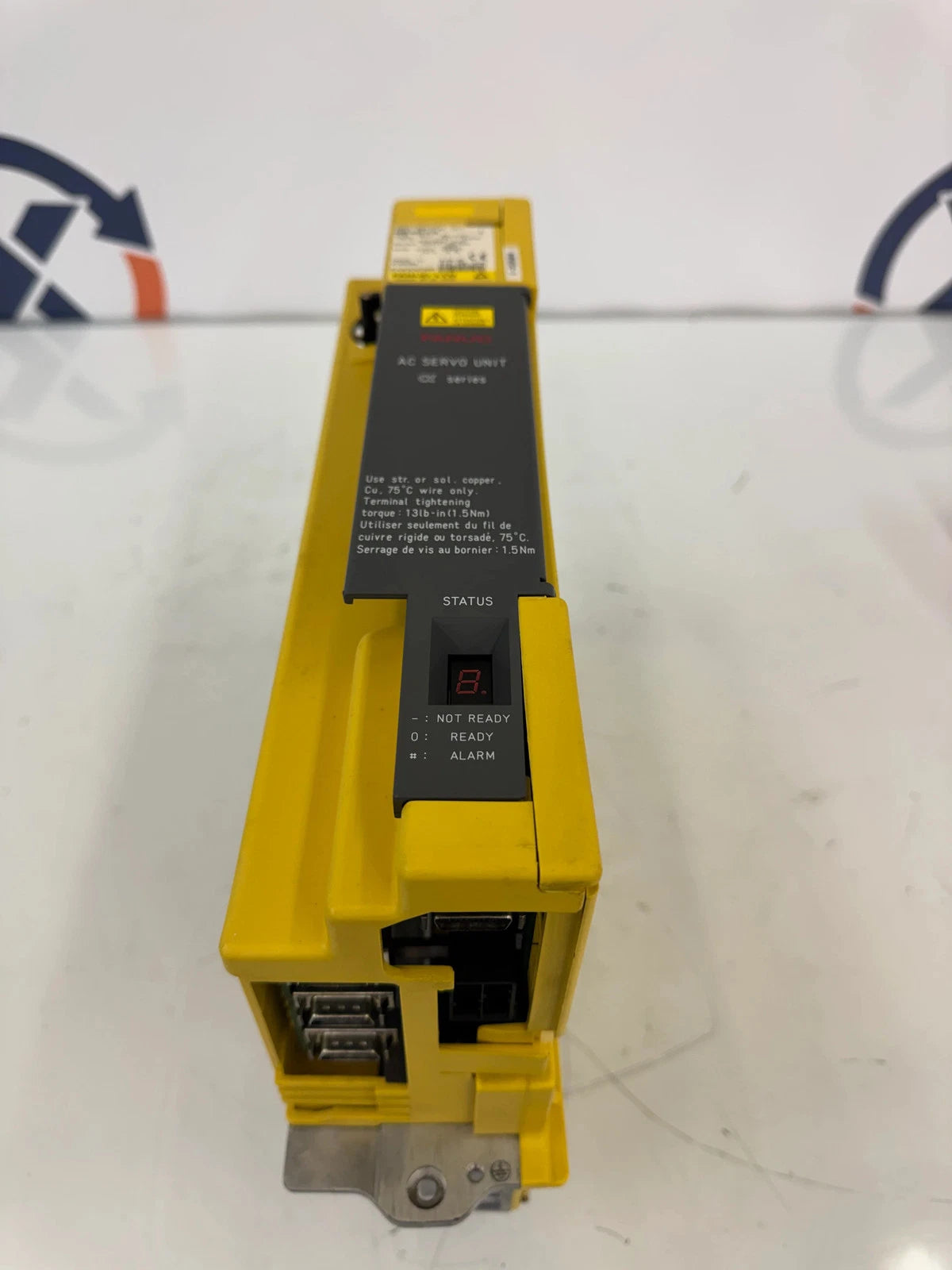

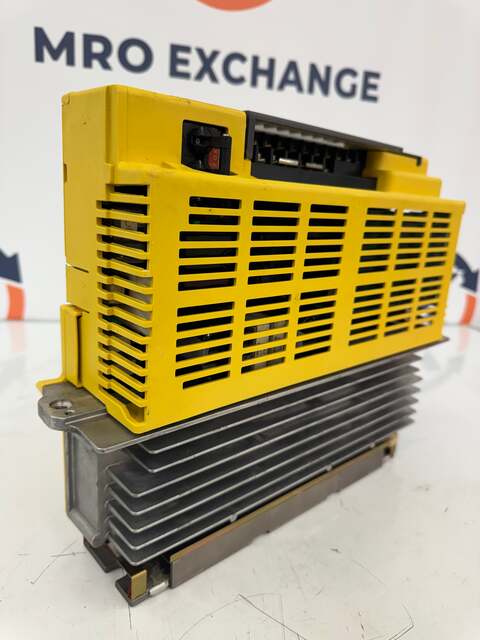

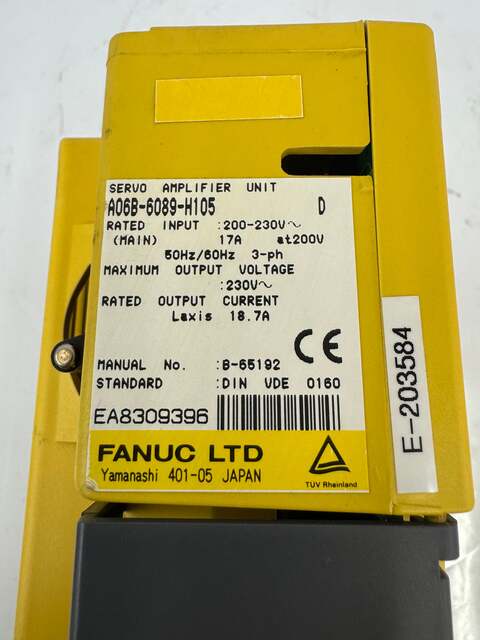

This listing is for a Fanuc Servo Amplifier Unit, type A06B-6089-H105, revision D, serial number EA8309396, manufactured by Fanuc Ltd, Yamanashi, Japan. The A06B-6089-H105 is a single-axis AC servo amplifier from the Fanuc Series Alpha series drive lineup, designed for use with Fanuc CNC controls in machine tool axis drive applications. Rated input is 200 to 230V AC at 17A, 50/60 Hz, 3-phase. Maximum output voltage is 230V AC. Rated output current for the L axis is 18.7A. The unit references manual number B-65192 and conforms to DIN VDE 0160 standard. The amplifier carries CE and TUV Rheinland certifications. The unit is constructed in the standard Fanuc yellow housing with an integrated aluminum fin heatsink on the lower section for thermal management. A circuit breaker is visible on the top of the unit. This servo amplifier is a direct replacement or spare for Fanuc CNC machine tools utilizing the A06B-6089-H105 single-axis alpha servo drive. Buyers should verify axis configuration, motor compatibility, and CNC system interface requirements prior to purchase.

Stock # 0226-311
