Fanuc DC Servo Motor A06B-0653-B005#0008 - Variable 37 NM

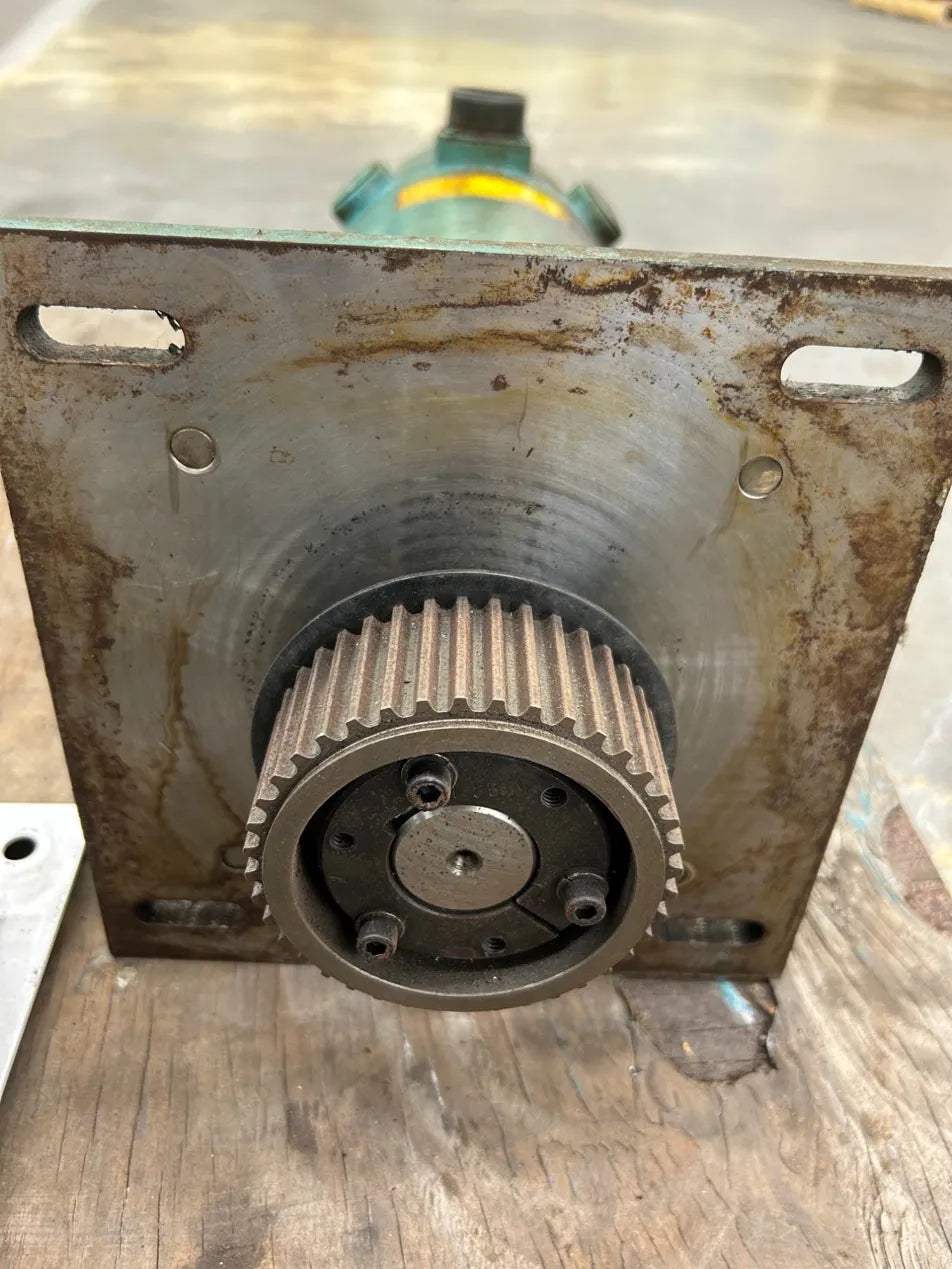

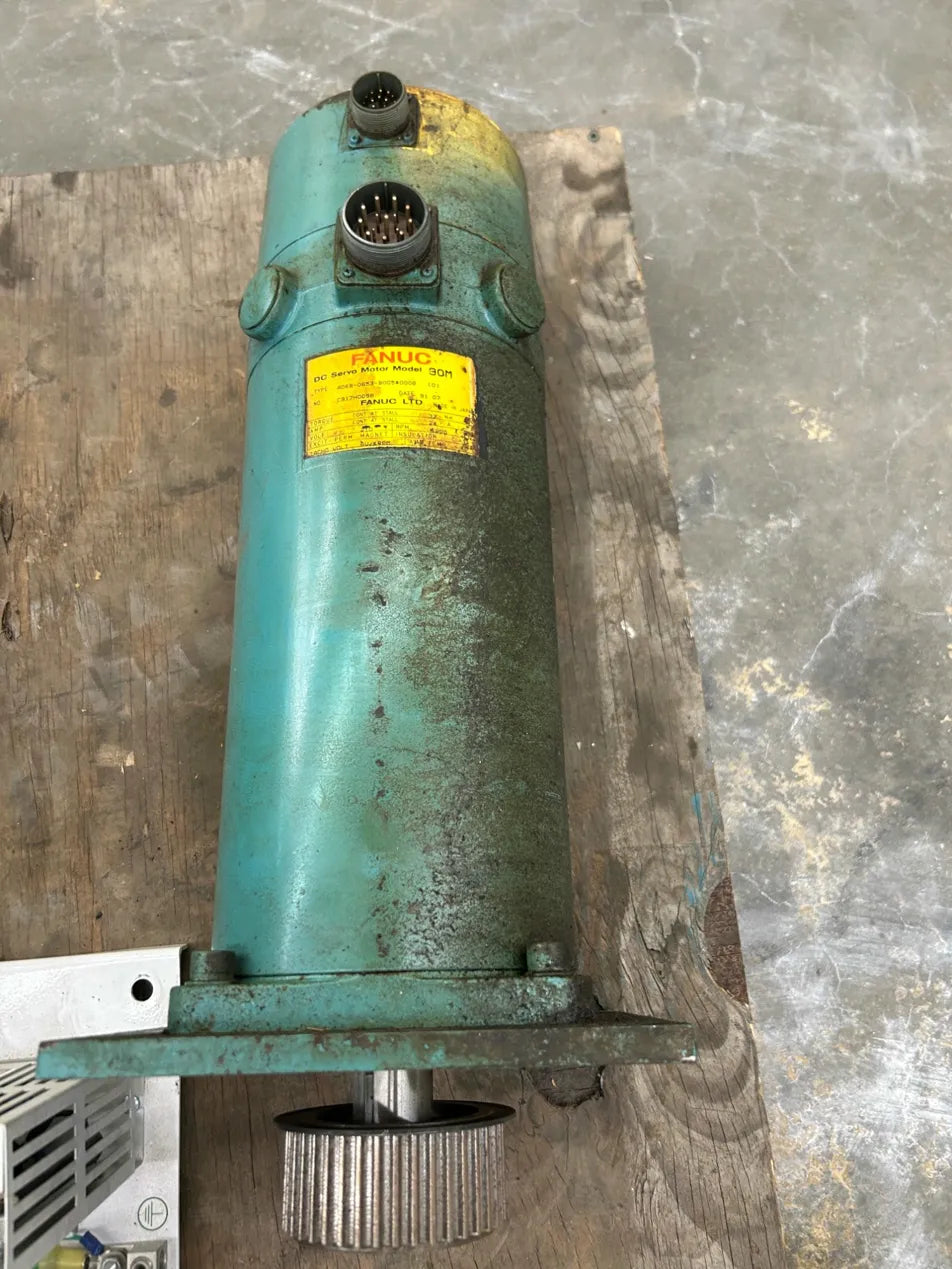

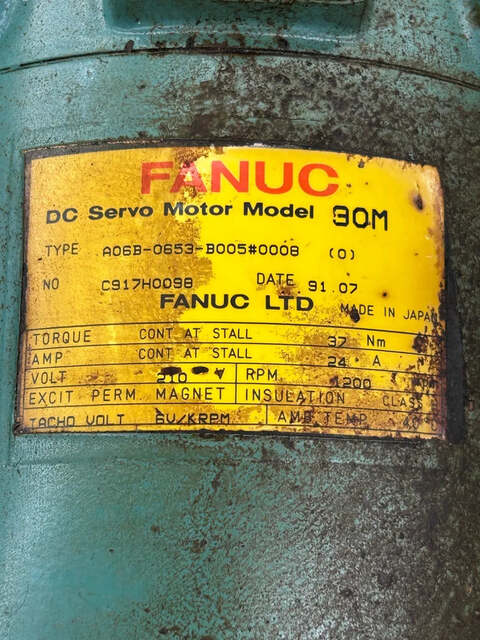

Used in CNC machining centers and industrial automation systems, the Fanuc DC Servo Motor Model 30M is a permanent magnet DC servo motor designed for high-torque axis drive applications. This unit carries part number A06B-0653-B005#0008, indicating a keyed shaft configuration with tacho generator feedback. Nameplate data confirms a continuous stall torque of 37 Nm, a continuous stall current of 24 A, and a rated voltage of 210 VDC. Rated speed is 1200 RPM. The tacho generator output is rated at 6V per 1000 RPM. Excitation is by permanent magnet. Insulation is Class H, and the ambient temperature rating is 40 degrees C. The motor is manufactured by Fanuc Ltd. and made in Japan. Serial number C917H0098 and date code 91.07 are visible on the nameplate. Two multi-pin circular connectors are present at the rear of the motor body. A timing belt pulley is installed on the output shaft. The motor mounts to a steel flange plate visible in the photos. The A06B-0653 series is a well-established platform in legacy Fanuc 0, 6, 10, 11, and 15 series CNC control applications.

Stock # 0226-745
