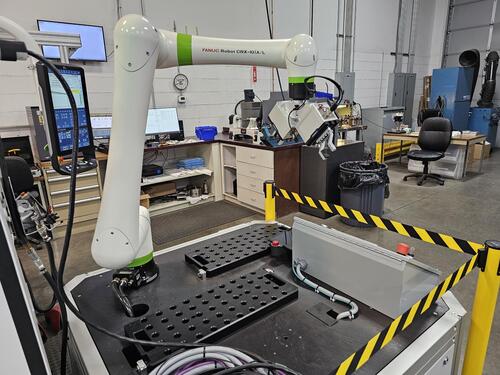

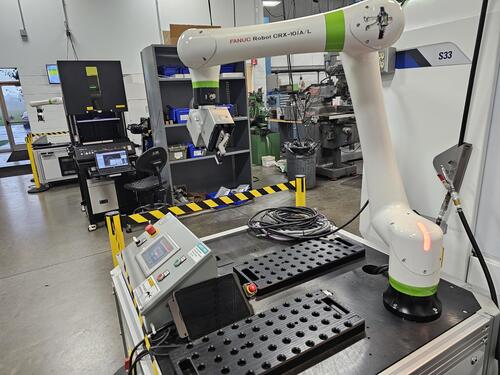

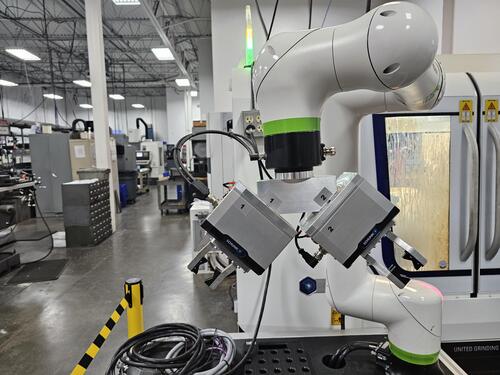

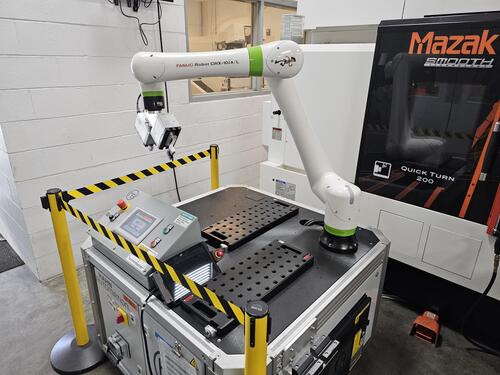

Fanuc CRX-10i-A/L, 6-Axis cobot, 22.05 lb. payload, 55.83" reach, long reach arm, floor, inverted, angled mounting, IP67, 2022

Maximum Payload: 22.05 Lbs. (10 kg)
Maximum Reach: 55.83″ (1,418 mm)
Controlled Axes: 6
Repeatability: ±0.0016″ (±0.04 mm)
J1 Motion Range: 360°
J2 Motion Range: 360°
J3 Motion Range: 540°
J4 Motion Range: 380°
J5 Motion Range: 360°
J6 Motion Range: 380°
J1 Maximum Speed: 120°/Second
J2 Maximum Speed: 120°/Second
J3 Maximum Speed: 180°/Second
J4 Maximum Speed: 180°/Second
J5 Maximum Speed: 180°/Second
J6 Maximum Speed: 180°/Second
Maximum Collaborative Speed: 39.37″/Second (1,000 mm/Second)
J4 Allowable Wrist Moment: 34.8 N·m
J5 Allowable Wrist Moment: 26 N·m
J6 Allowable Wrist Moment: 11 N·m
Mounting Configuration: Floor, Inverted, Angled
Robot Protection Rating: IP67
Input Voltage: 100–120/200–240 VAC
Phase: Single Phase
Frequency: 50/60 Hz
Input Power Capacity: 1.5 kVA
Robot Weight: 88.18 Lbs. (40 kg)
Equipped With:
– Long Reach Arm
– Underflip Motion
– Manual Guided Teaching
– Contact Detection
