Fanuc CNC Operator Panel Series 18i-TB

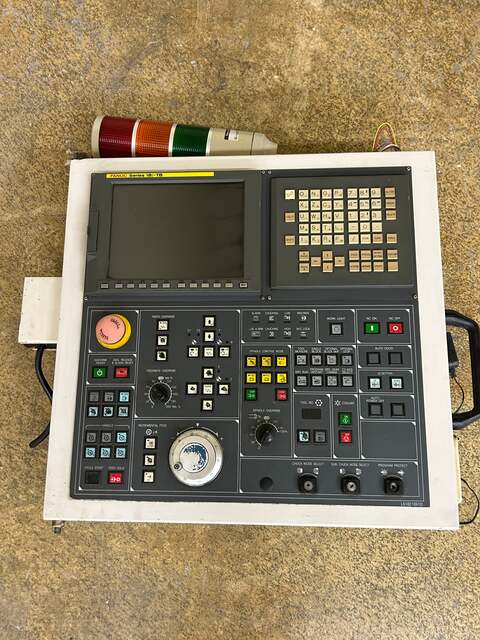

The Fanuc Series 18i-TB is a mid-range CNC turning control designed for high-production lathe and rotating part applications. This listing is for a complete machine operator panel assembly incorporating the Fanuc Series 18i-TB integrated LCD display unit. The panel includes a full MDI keyboard, manual pulse generator handwheel, feedrate override dial, spindle override dial, rapid override switches, cycle start, feed hold, E-stop, and a comprehensive array of machine function pushbuttons including spindle control mode, chuck mode select, sub chuck mode select, work light, NC on/off, coolant, tool number, dry run, single block, optional block skip, and program restart controls. A three-color stack light (red, amber, green) is present and resting on top of the panel assembly. The panel also includes a built-in 120V AC outlet on the side and a carrying handle, consistent with a portable or pendant-style operator station configuration. Panel label L61821061D is visible on the front overlay. The Fanuc 18i-TB platform supports up to two-path turning with high-speed PMC and nano interpolation. This series is compatible with a wide range of CNC lathes and turning centers produced during the late 1990s and 2000s.

Stock # 0226-642
