FANUC A06B-6089-H106 Spindle Amplifier

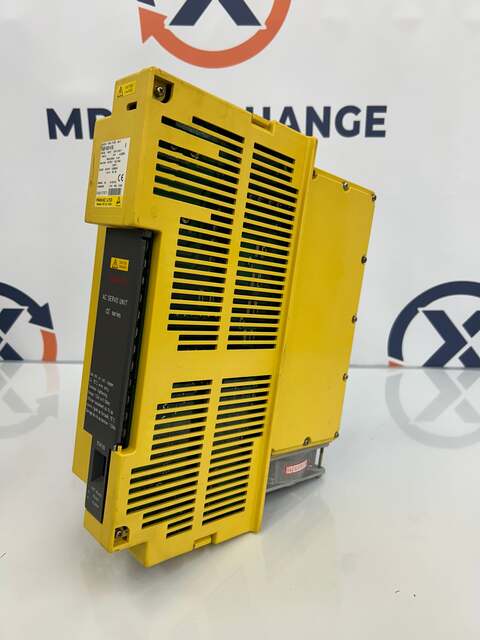

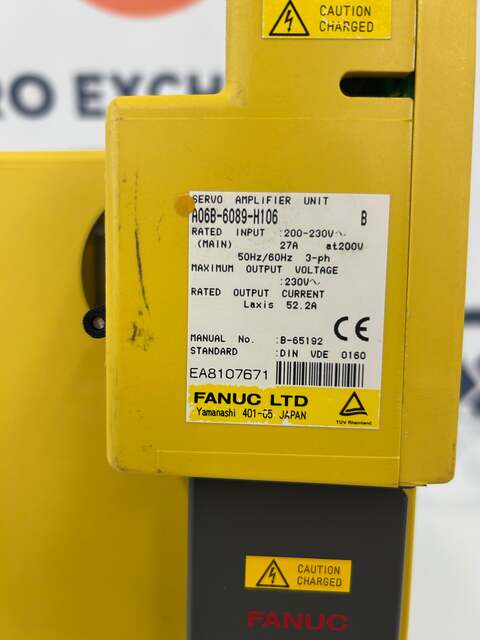

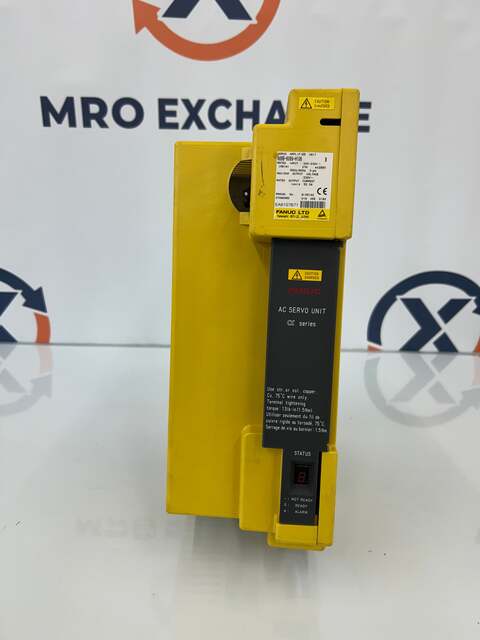

The Fanuc A06B-6089-H106 is a Servo Amplifier Unit from the Fanuc Alpha Series, designed for multi axis CNC machine tool control. The nameplate identifies it as a Servo Amplifier Unit with manual reference number B-65192 and standard compliance to DIN VDE 0160. Serial number EA8107671 is visible on the unit. Rated main input is 200 to 230V AC at 27A, 50/60Hz, 3 phase. Maximum output voltage is 230V AC. Rated output current per axis is 52.2A, configured as a 6 axis amplifier (L axis) within the H106 designation of this product family. The unit bears the CE mark and TV Rheinland certification, manufactured by Fanuc Ltd. in Yamanashi 401 05, Japan. The A06B-6089-H106 is commonly deployed in Fanuc 0, 15, 16, 18, and 21 series CNC controls and integrates with Fanuc Alpha series AC servo motors over the FSSB (Fanuc Serial Servo Bus) interface. Typical applications include vertical and horizontal machining centers, CNC lathes, multi axis turning centers, and industrial robotics where coordinated multi axis motion is required. The module construction features the standard yellow Fanuc enclosure with integrated heatsink and front mounted status indicators and connectors. Search relevant terms include Fanuc Alpha servo amplifier, A06B 6089 H106, 6 axis servo amp, Fanuc SVU, FSSB amplifier, and Fanuc CNC servo drive replacement.

Stock # 0226-075
