Fanuc A06B-0158-B075#7008 Servo Motor 5 HP 2000 RPM

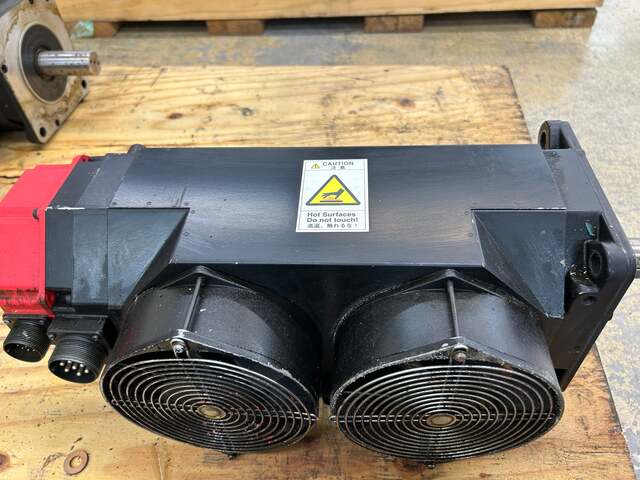

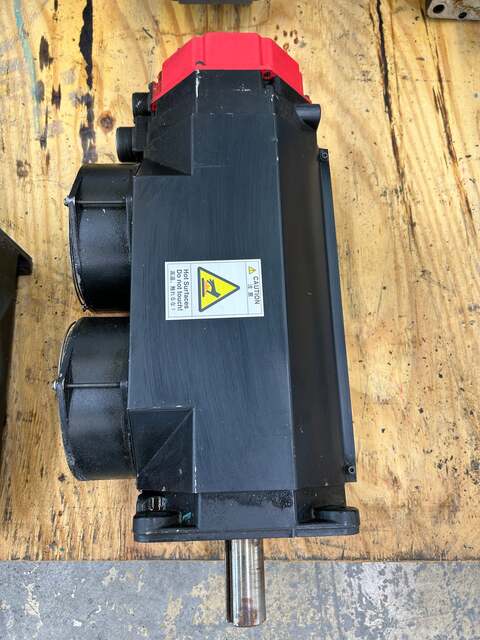

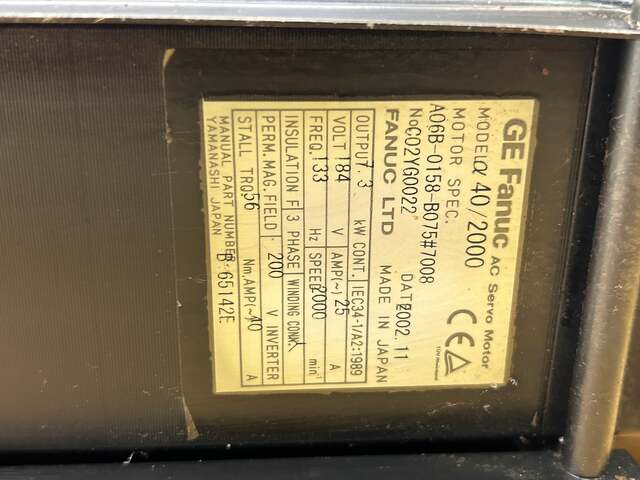

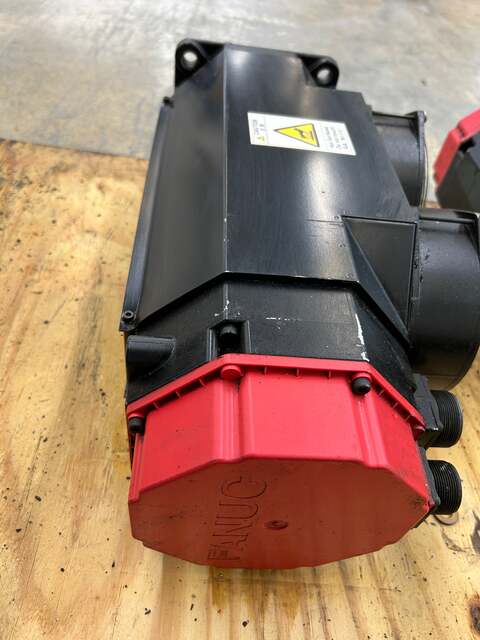

The GE Fanuc A06B-0158-B075#7008 is an AC servo motor from the Alpha 40/2000 series, manufactured in Yamanashi, Japan with a nameplate date of 2002.11. Manual part number B-65142E. Serial number C02YG0022. This motor is rated for 7.3 kW continuous output, 184 V at 3 phase winding connection, 25 A, 133 Hz, with a maximum speed of 2000 min¹. Stall torque is rated at 56 Nm with a 10 A stall current at 200 V inverter input. Insulation class is F. The motor uses permanent magnet field construction and carries CE marking with TV Rheinland certification per IEC34 1/A2:1989. The Alpha 40/2000 frame is commonly fitted to small and medium machine tools driven by Fanuc A06B 6079 H1xx and A06B 6096 H1xx series axis drives, and is typically equipped with an Alpha pulse coder for absolute position feedback. The motor features a keyed straight shaft and twin radial cooling fans mounted on the front housing. Applications include CNC milling centers, machining centers, and turning centers where high torque AC servo motors are required for spindle or feed axis control. The unit ships as pictured. Specifications listed above are sourced from the visible nameplate data and Fanuc published documentation for the A06B-0158-B075 series.

Stock # 0226-102
