Fanair AG #L300/2, Tube Axial Fan

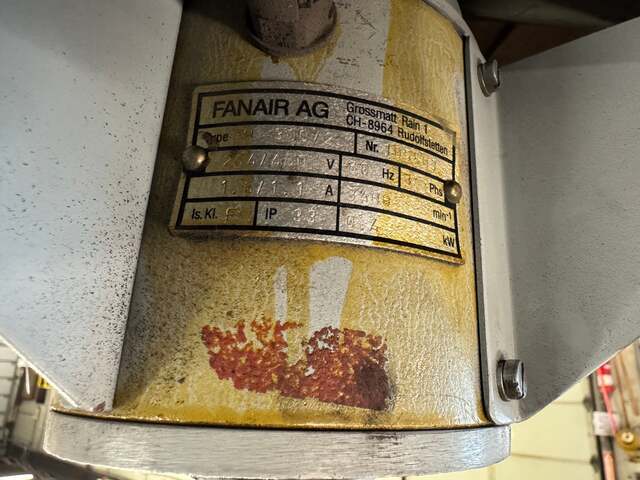

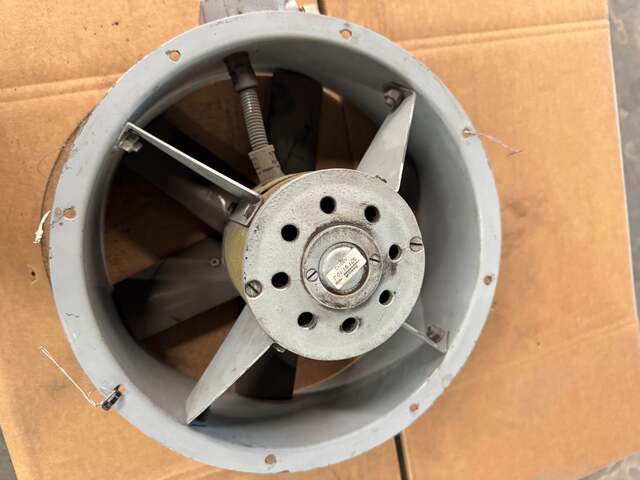

Used in industrial ventilation and machine cooling applications, this Fanair AG Type L300/2 is a 300mm (12 inch) direct drive tube axial fan built by Swiss manufacturer Fanair AG, headquartered in Rudolfstetten, Switzerland (CH-8964). The nameplate identifies the unit as operating on 264/460V, 60Hz, 3-phase power with a current draw of 1.6/1.1A. Rated output is approximately 0.4 kW. Motor speed is listed at approximately 3400 RPM. Insulation class is F and enclosure rating is IP 33 per nameplate data. The fan features a stamped steel flanged cylindrical housing with a multi-blade direct-drive impeller. Six blades are visible, consistent with a low-pressure axial airflow configuration. Lead wire exits through a conduit fitting mounted to the motor hub. The housing is configured for inline duct mounting via a bolt-flange pattern on the inlet face. Serial number is partially visible on the motor hub label; full serial requires direct inspection. The unit shows surface wear, discoloration, and corrosion on the motor body consistent with prior installation in a production environment. No box or documentation is included. Voltage, full serial number, and output kW value should be verified against nameplate before installation, as portions of the nameplate are obscured in available photos.

Stock # 0526-02534
