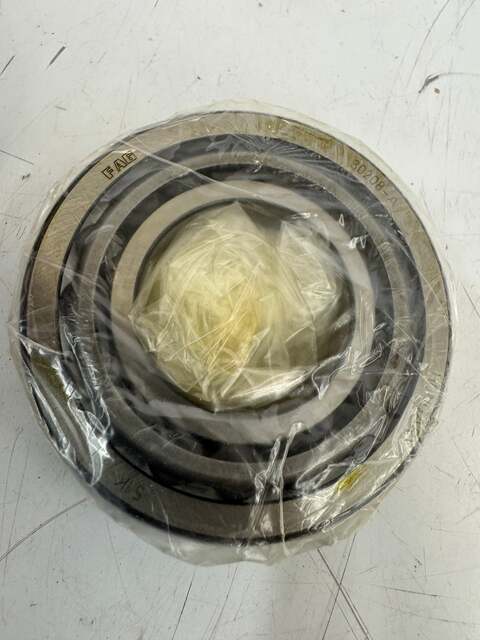

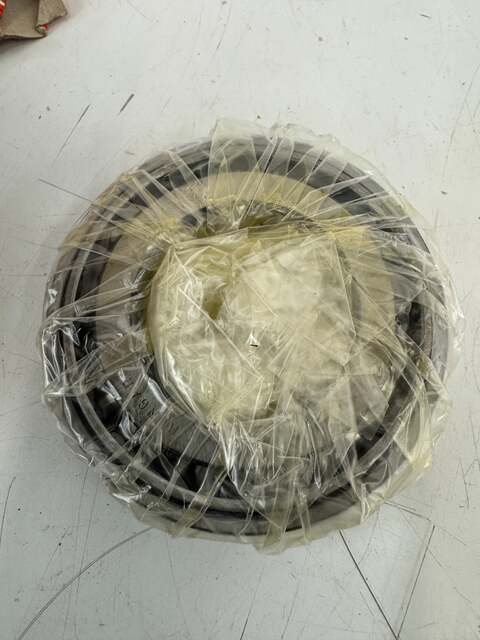

FAG 30208-A Tapered Roller Bearing - 40mm ID x 80mm OD x 19.75mm Width

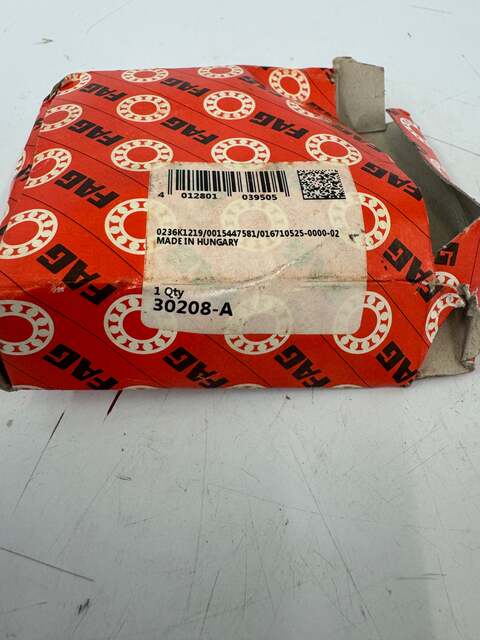

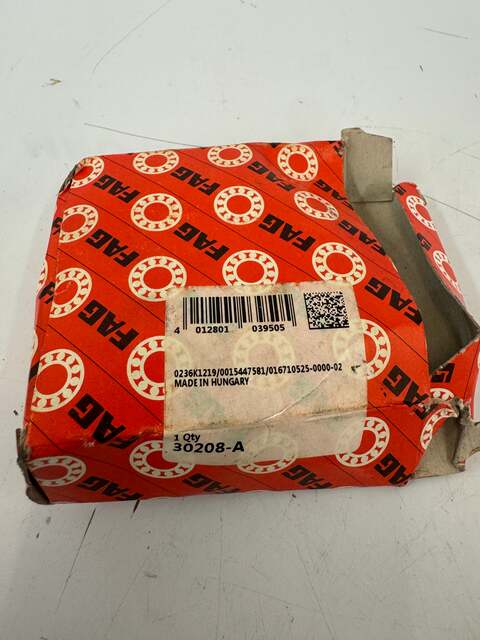

The FAG 30208-A is a single row metric tapered roller bearing produced by Schaeffler Group. This unit carries a 40 mm bore, 80 mm outside diameter, and 19.75 mm overall width, conforming to DIN ISO 355 and DIN 720 main dimensions for the 302 series. The barcode label identifies the unit as made in Hungary, with package markings 0236K1219 and 0015447581 along with EAN 4012801039505. The bearing is a separable design consisting of an inner ring with cage and roller set (cone) and a separate outer ring (cup), allowing the two components to be mounted independently in mirror image with a second tapered roller bearing in X, O, or tandem arrangement. Conical raceways and tapered rollers allow the unit to accept combined radial and axial loads, with axial capacity in one direction. Published FAG catalog values include a dynamic radial load rating of 61,000 N, static radial load rating of 67,000 N, fatigue limit load of 7,600 N, limiting speed of 9,600 rpm, and reference speed of 5,900 rpm. The cage retains the rollers in a window arrangement. Common applications include gearboxes, wheel hubs, pumps, electric motors, conveyor drives, and general industrial machinery requiring rigid shaft guidance under combined loading. Sold as a single bearing, factory packaged in original FAG box with sealed label intact. Cross references include 30208, 30208JR, and 30208XL designations.

Stock # 0226-255
