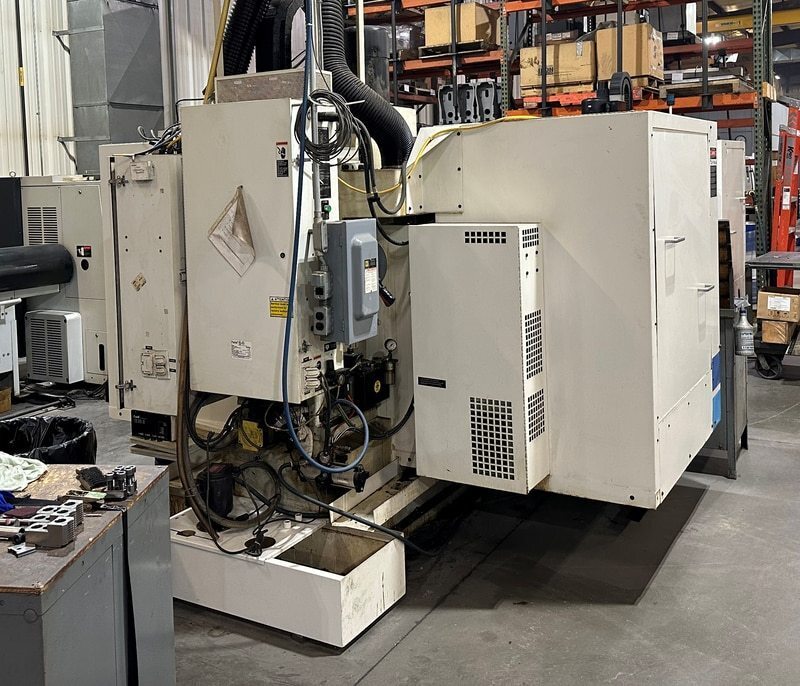

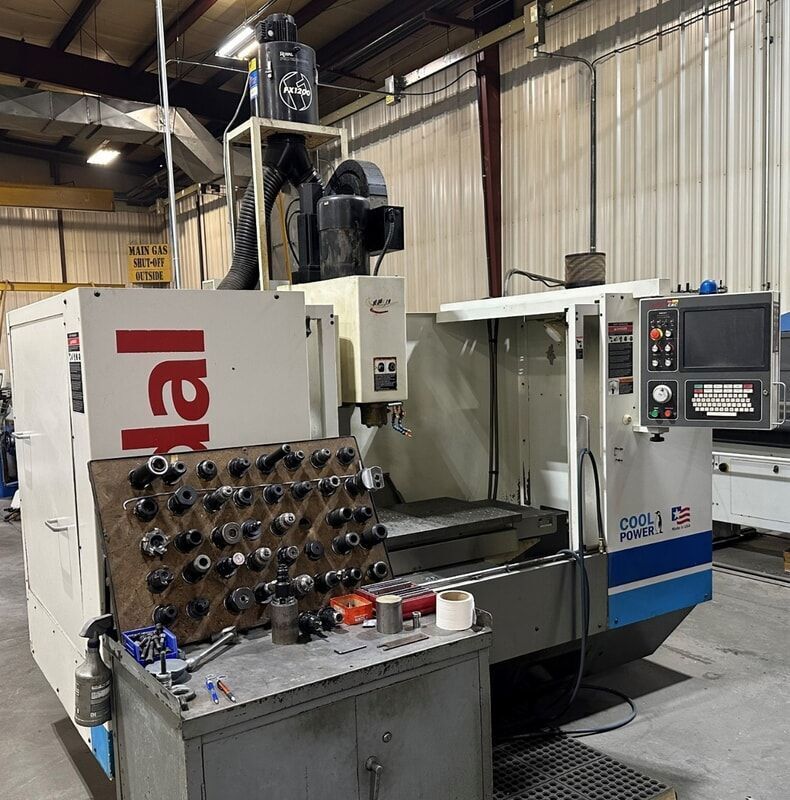

Fadal #VMC4020HT, 40" X, 20" Y, 20" Z, 10000 RPM, 21 automatic tool changer, 48" x20" table, 22.5 HP, Cat 40, 2004

Year Built - 2004
Machine On Time - 3,308 Hours
Machine Run Time - 539 Hours
SPECIFICATIONS:

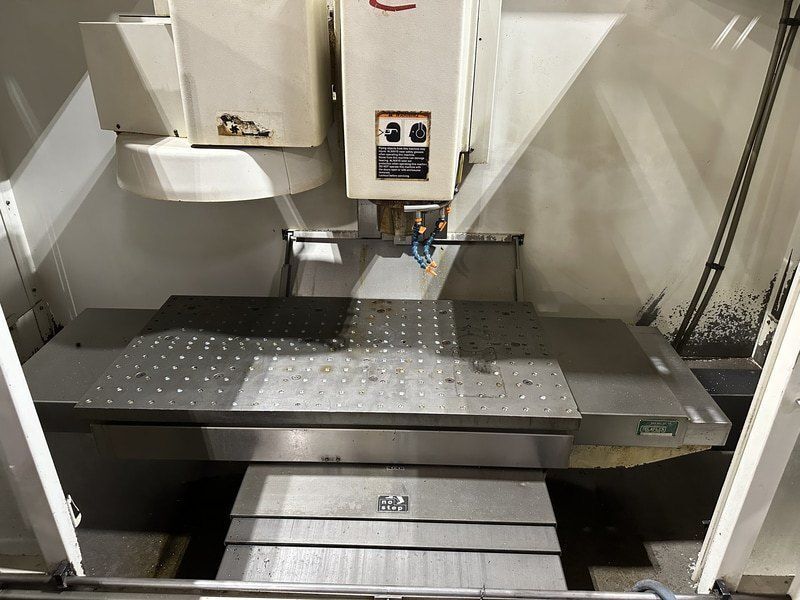

Table:
- Size............48" x 20"
- Load Capacity - Maximum............3,966 Lbs.
- T-Slots............5 x 0.70" x 3.75"
- Floor to Table Surface............30.98"
Travels:
- X-Axis............40"
- Y-Axis............20"
- Z-Axis............20"
Cutting Feed Rate (X/Y/Z)............0.0098 - 400 ipm (600 ipm at 150%)
Rapid Traverse Rates (X/Y/Z)............900 ipm (X/Y), 700 ipm (Z)
Spindle:
- Speeds............10 - 10,000 RPM
- Taper............CAT 40
- Motor Power............22.5 HP
- Spindle Nose to Table............4.01" - 24.01"
- Spindle Center to Column Ways............20"

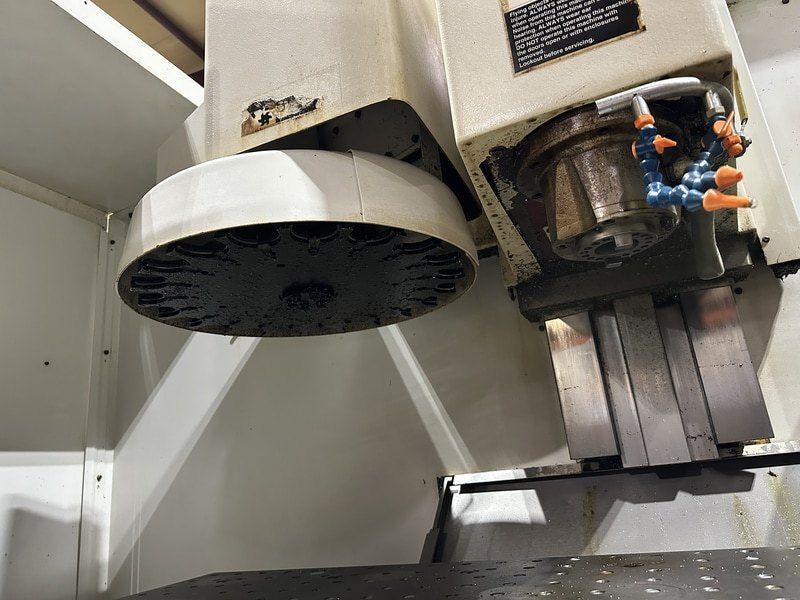

Automatic Tool Changer Positions............21
Tool Diameter - Maximum............2.99" (5.98" without adjacent tools)
Tool Length - Maximum............15"
Tool Weight - Maximum............16.3 Lbs.
Ball Screw Size - Diameter............1.57" (X/Y/Z)
Air Pressure Requirement (Momentary)............116 psi
Electrics............240V
Dimensions - Approximate............117"L x 88"W x 110"H
Weight - Approximate............11,500 Lbs.
EQUIPPED WITH:
Coolant Filtration System

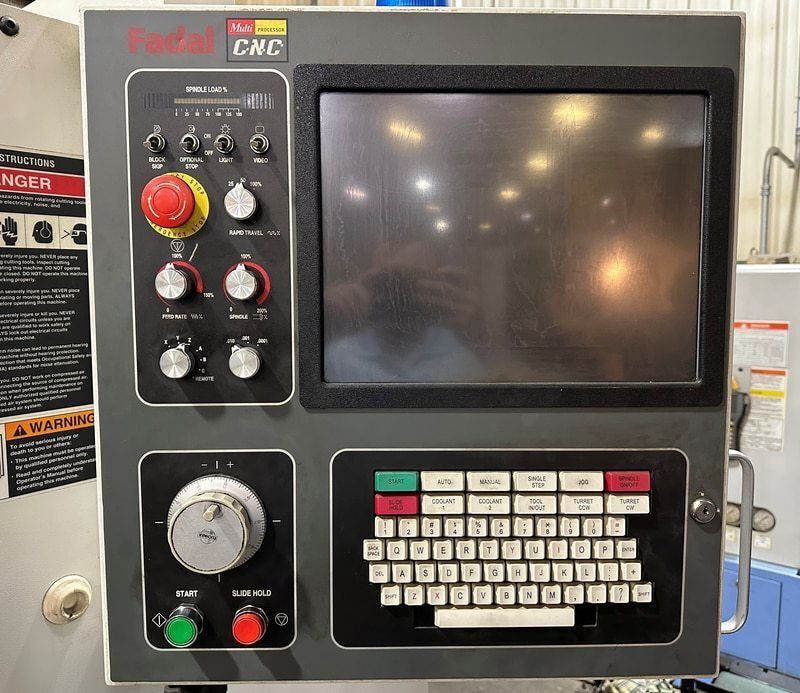

Fadal Multi Processor CNC Control
*Preliminary specifications, pending confirmation
