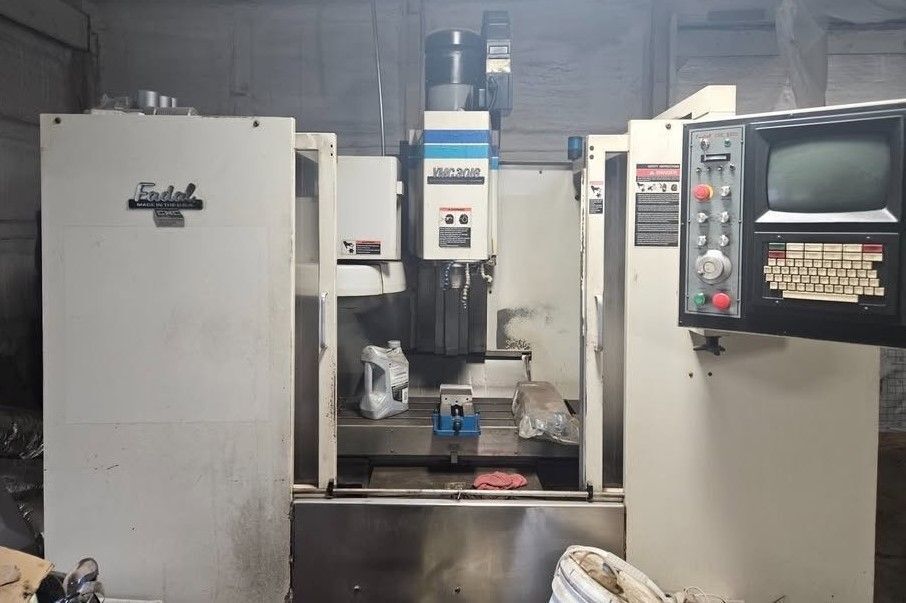

Fadal #VMC-4020, CNC Vertical Machining Center, 40" X, 20" Y, 20" Z, 48" x 20" table, 20 HP, 10,000 RPM, CAT 40, 21 automatic tool changer, 1993

$9,975 USD

Request Formal Quote

Up for sale is a solid 1993 Fadal VMC 4020 Vertical Machining Center. This machine was purchased by its current owner in 2019 and has been sitting safely in dry storage, completely unused since then.
Key Features & Modifications:
Generous Travels: 40" X-axis x 20" Y-axis x 20" Z-axis travel with rigid box ways.

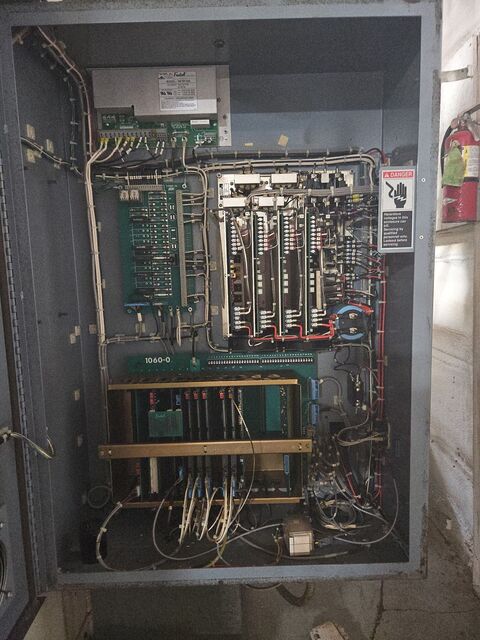

5-Axis Ready: Built from the factory as a 5-axis configuration. While the physical 4th and 5th axis rotary mechanics are missing, all internal wiring and expensive factory controller cards remain fully intact in the electronics cabinet.
Internet/Network DNC Capability: Professionally updated to interface with a custom-attached Windows 95 PC data station, allowing you to seamlessly download files directly from the network or internet, escaping the classic, tedious RS-232 serial limitations.
Taper: CAT 40 Spindle Taper.
Tool Changer: 21-Position Umbrella Automatic Tool Changer (ATC).
Condition Notes:
Machine is structurally complete and was fully operational when installed. It was a prototyping machine, and we bought it in 2019 to start up a new machine shop, but then Covid hit and weve turned it on, but never actually run parts on it. It is being sold exactly as pictured. Buyers are highly welcome to coordinate inspection. Perfect starter machine or high-capacity addition for a garage shop or growing commercial outfit looking for cheap, reliable American iron.
Sold AS-IS, Where-IS. Local pickup or freight carrier pick up must be scheduled by the buyer.
1993 FADAL VMC-4020
SPECIFICATIONS:
X......... 40"
Y......... 20"
Z......... 20"
Power..... 20 hp
RPM....... 10,000 RPM
# ATC..... 21
Taper..... CAT-40
Table-W... 20"
Table-L... 48"
