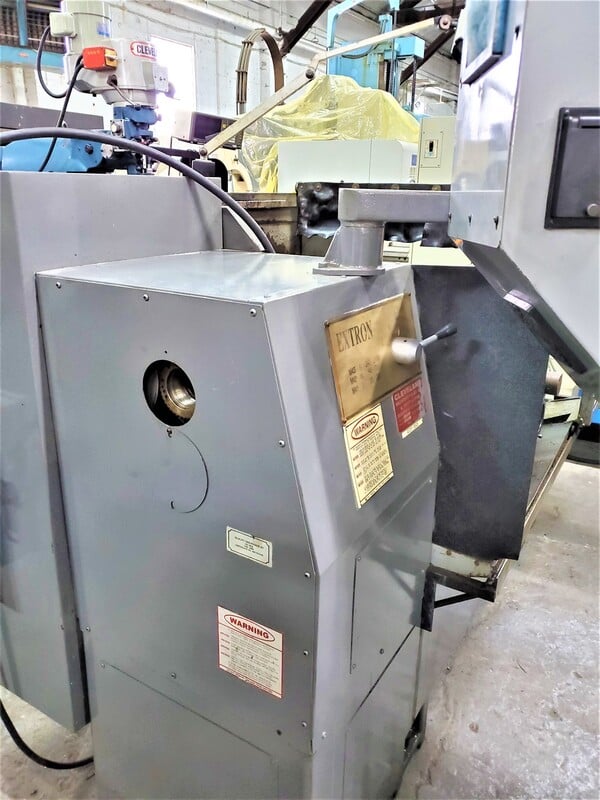

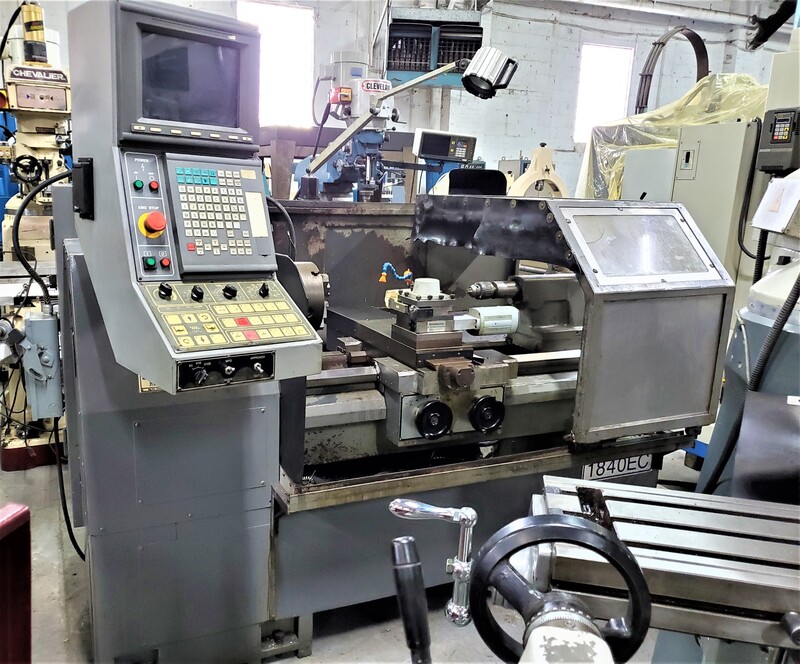

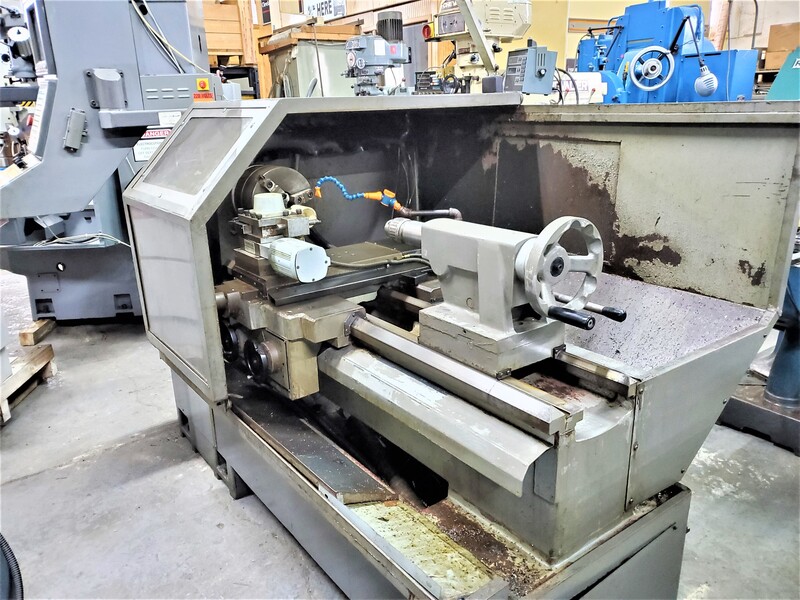

Extron #1840EC, CNC lathe, 3-Axis, 18-1/8" swing, 9-1/2" swing over cross slide, 40" centers

MACHINE FEATURES:
SWING OVER BED 18-1/8"
SWING OVER CROSS-SLIDE 9-1/2"
DISTANCE BETWEEN CENTER 40"
CROSS SLIDE (X) TRAVEL 9-1/2"
LONGITUDINAL (Z) TRAVEL 31-1/4"
SPINDLE NOSE & TAPER D1-6 / #6
SPINDLE BORE DIAMETER 2-1/4"
TAILSTOCK DIAMETER 2-3/8"
TAILSTOCK TRAVEL & TAPER 6" / M.T.#4

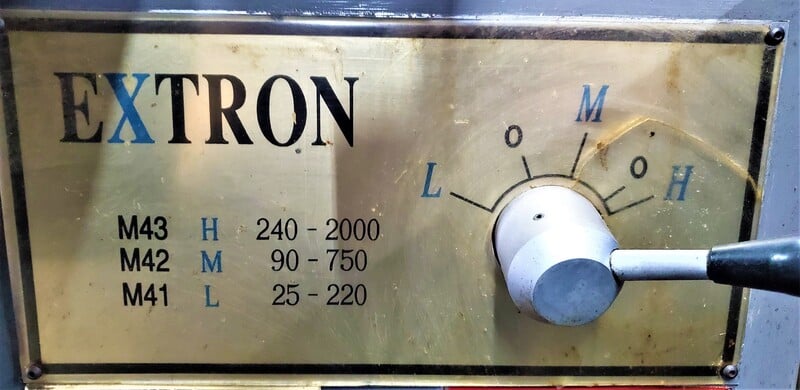

SPINDLE SPEED 3 STEPS 25-2000 R.P.M.
SPINDLE MOTOR 3 PHASE 220 V, 7-1/2 HP.
DRIVE MOTOR AC SERVO 400 W
HEAD STOCK LUBRICATION MOTOR 1/8 HP
COOLANT PUMP MOTOR 1/8 HP
FEED RATES 140 IPM.
RAPID TRAVEL (X, Z-AXIS) 200 IPM.
WEIGHT 5,400 LBS.
FLOOR SPACE 104" X 48" X 73"
HARDWARE: SPECIFICATIONS:
HARDWARE UNIT PC BASED HARDWARE
SERVO SYSTEM PANASONIC AC SERVO
CPU INTEL 486 DX4-100

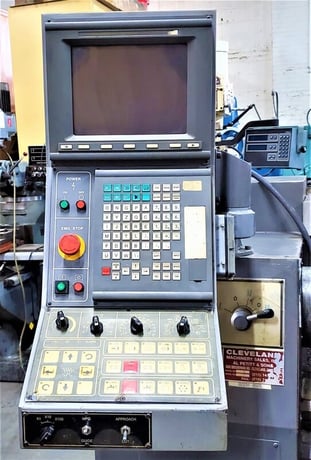

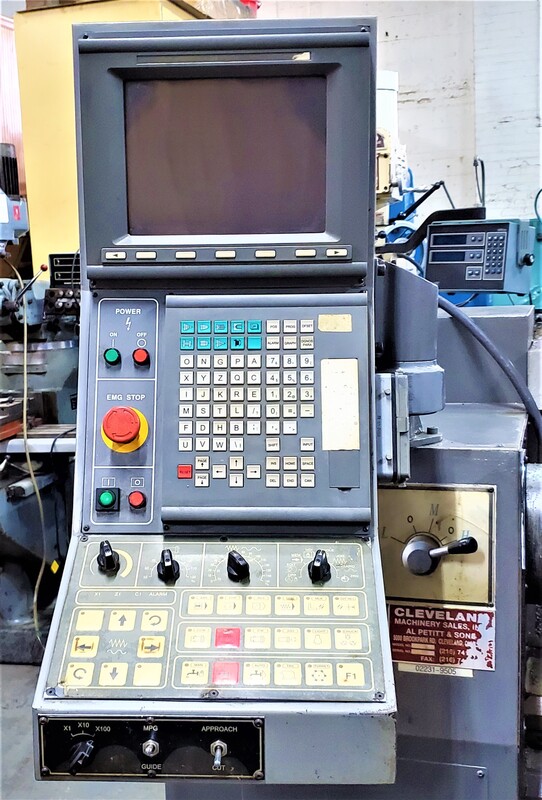

DISPLAY 10.4" COLOR LCD
OPERATING KEYS FULL TEXT KEYS &
HARD DISK 2.1 GB
SYSTEM MEMORY 8 MB
SWITCHING POWER 250 W
CONTROLLED AXES 3
SPINDLE 1
MPG PORTS 2 FOR X & Z AXIS
RS232 19200 BAUD RATE
STANDARD PANELS OPERATORS &
SOFTWARE: SPECIFICATIONS:
LANGUAGES ENGLISH
PROGRAMMING G/M CODE
OPERATING MODES MEM / MDI
OVERRIDE CUTTING 0 ~ 150%
COMPENSATION TOOL GEOMETRY /
CONTROL FUNCTION EMERGENCY STOP
