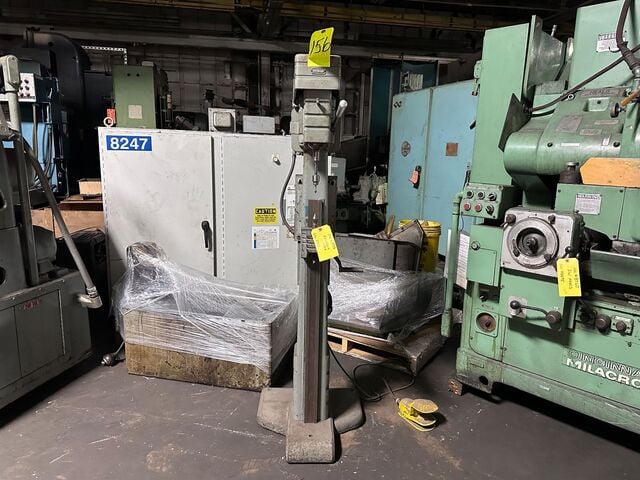

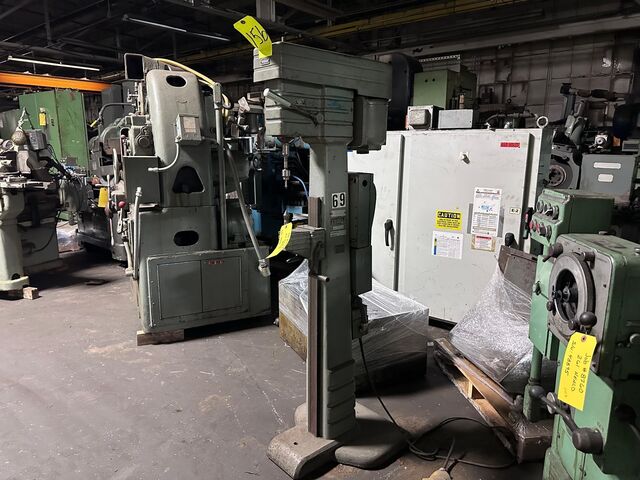

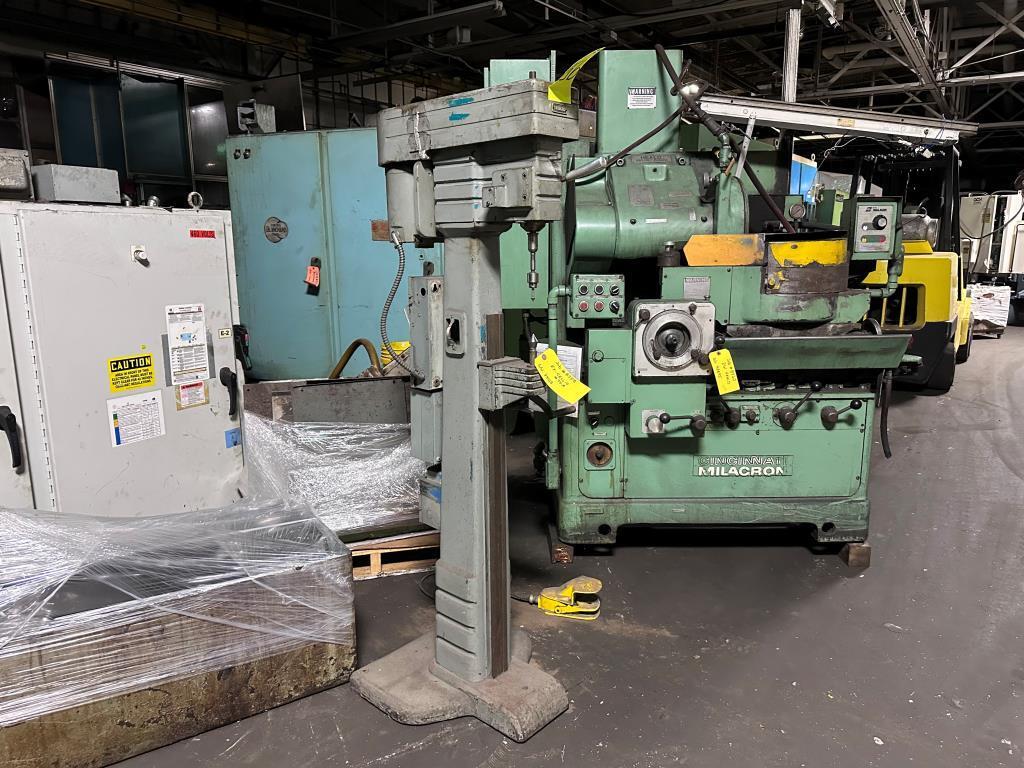

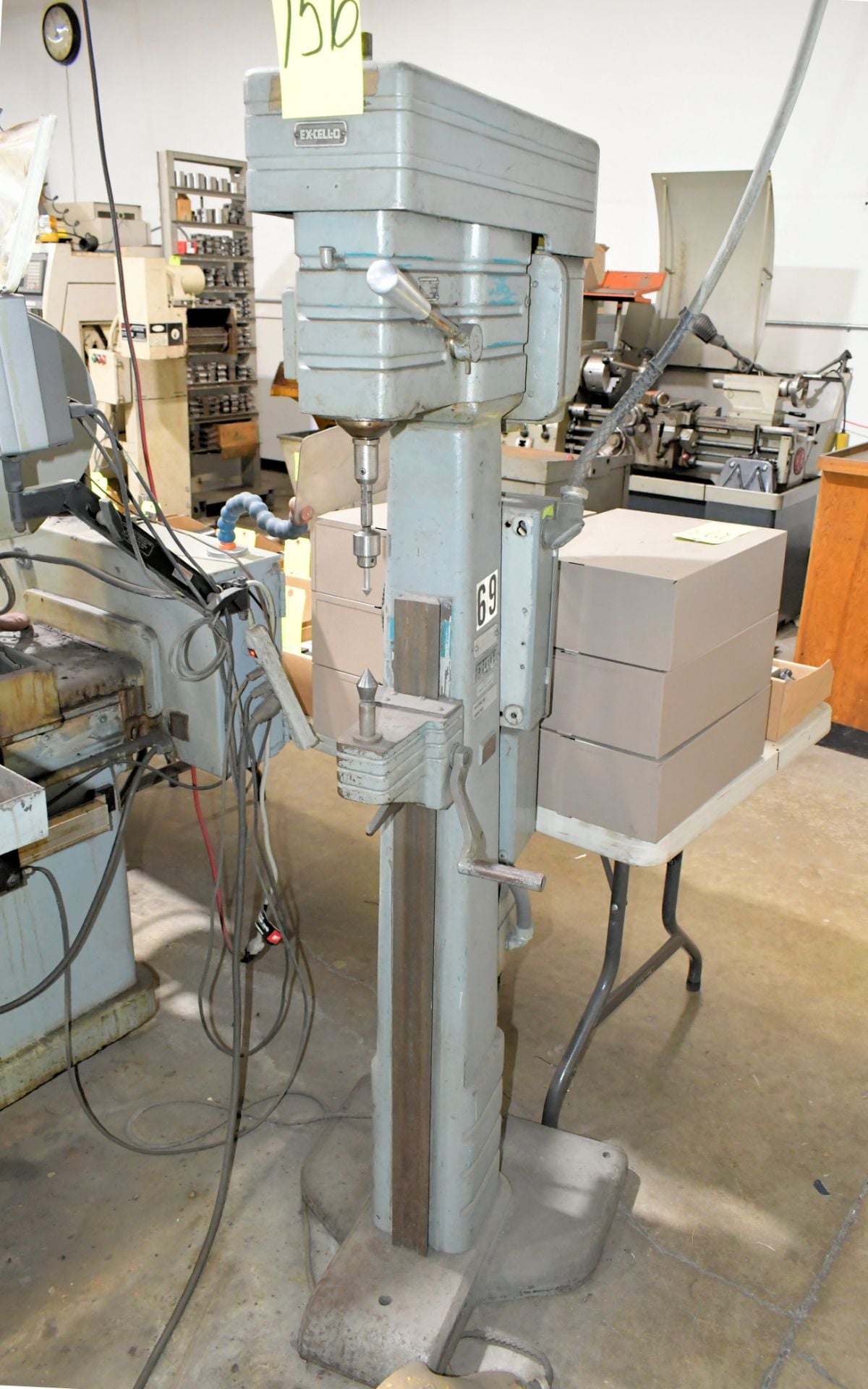

Ex-Cell-O #74-A, center lapping Machine, 10" diameter x 36" L work Size, 15/16" centers, 1" diameter lapping Stone, 1 HP, 1800 RPM, 1974

Excello 74-A Lapper, 10" Work Diameter, 36" Max Length Work

74-A EXCELLO MODEL CENTER LAPPING MACHINE

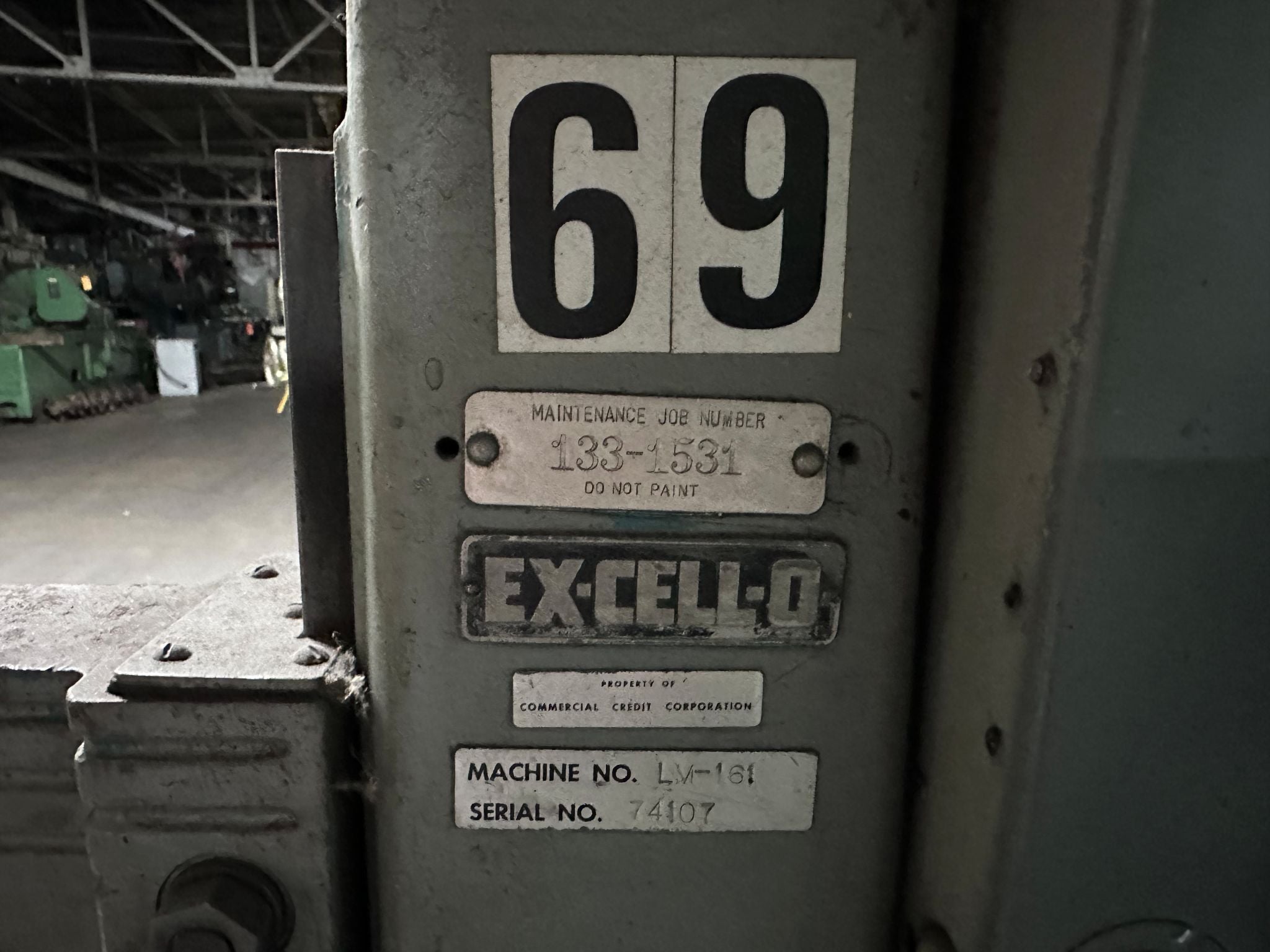

S/N 74107 Year: 1974
STANDARD SPECIFICATIONS
Maximum diameter of work.................... 10"
Maximum length of work...................... 36"
Maximum diameter of centers................. 15/16"
Maximum diameter of lapping stone........... 1"
Lapping stone shank size.................... 1/2"
Distance – center to column................. 5 1/4"
Lapping spindle speeds........... 665, 1280, 2300, 4300 RPM
Maximum stroke of lapping spindle........... 1 1/2"
Maximum stroke of dressing diamond.......... 1 1/4"
Vertical adjustment of dresser.............. 1 1/2"
Motor............................ 1 HP / 1800 RPM
Overall height.............................. 68"
Floor space................................. 20 1/2" x 26"
Approximate weight.......................... 1,500 lbs.
Machine is equipped with dresser, motor and electrical controls.
Specifications are deemed accurate, however, subject to verification or prior sale.
