Description

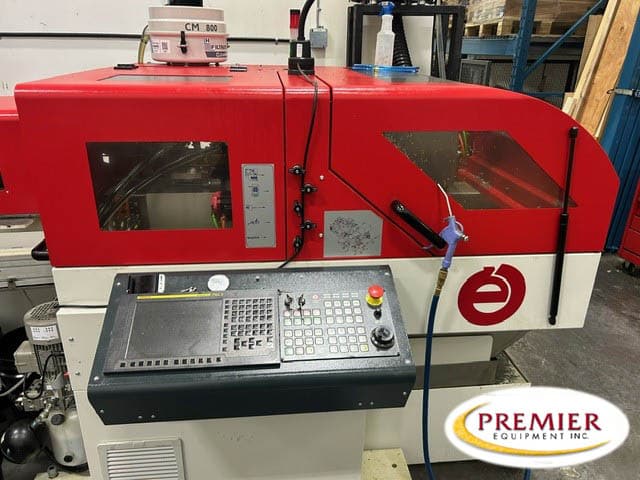

Esco Escomatic NM8-Flexi CNC Multi-Axis Lathe
Specifications (subject to buyer verification):
Turning
Max. material diameter 8 mm
Work piece length standard 150 mm
Number of tools 4 (2 simultaneously)
Max. toolhead speed 8’000 min-1
Front machining unit (DUF)
Number of powered tools axial 3
Max. drilling diameter 6 mm
Max. tapping capacity M5
Max. drilling speed 12’000 min-1
Number of powered tools lateral (option) 1 bis 3
Max. drilling/milling speed 4’000 min-1
Back machining unit (DUA)
Max. speed of counter spindle 10’000 min-1
Number of fixed tools axial 4
Max. drilling diameter 6 mm
Max. tapping capacity M5
Number of powered tools axial 4
Number of powered tools lateral 2
Max. drilling speed 15’000 min-1
Max. drilling diameter lateral tool 5 mm
Max. tapping capacity lateral tool M4
C-Axis
Resolution/Increment 0.001 °
Numerical control
CNC control FANUC Oi-TF
Max. number of controlled axes 8
Number of spindles 3
Measuring system resolution 0.001 mm
Rapid feed 40 m/min
Technical features
Coolant/cutting fluid Oil
Tank capacity 200 l
Flow rate of the pump 45 l/min
Max. system pressure 8 bar
Chips container capacity 100 l
Installed power 8 kVA
Compressed air consumption 11 m3/h
Compressed air pressure 5 bar
Dimensions
Length x Width x Hight 2’800 x 1’650 x 1’850 mm
L x W x H with coil reel 4’000 x 1’650 x 1’850 mm
Net weight 1’800 kg
Gross weigth 2’000 kg
Average sound pressure level 69.8 dB
Average sound power level 87.3 dB
Equipped With (subject to buyer verification):
Fanuc Series Oi-TF Plus CNC Control
