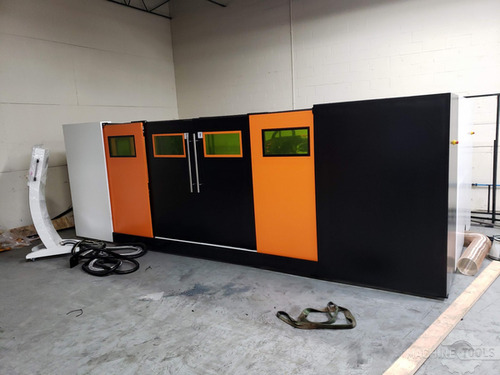

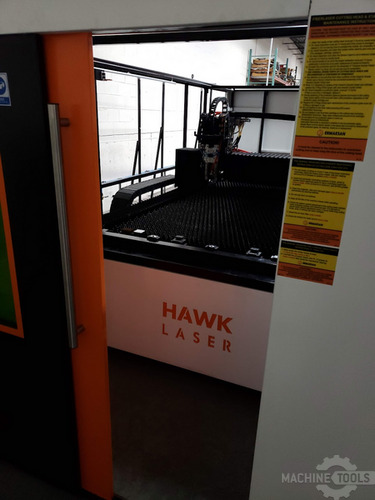

Ermaksan #FiberMak-Hawk, Laser Cutter, 5' width x 10' L Sheet Size, 0.625" Cut capacity, 6160 lbs. Load capacity, 1 kW Power

Spec

Sheet-W: 5′
Sheet-L: 10′
Wattage: 1 kw
Control: CNC (Beckhoff)
TECHNICAL SPECIFICATIONS HAWK 2000.3×1.5 RESONATOR Watt YGL 2000 POWER RANGE % 10-105 LASER BEAM QUALITY rad 3-Feb POWER STABILITY % 1 PULSE FREQUENCY/RANGE kHz 10 LASER WAVE LENGTH nm 1070 +/-5 FIBER CABLE DIAMETER um 100 EXCITATION – Laser Diode COOLING WATER FLOW RATE l/min 16 CUTTING CAPACITIES – – – Mild Steel in 0.625 Stainless in .315″ Aluminum in .250″ Copper in .197″ Brass in .157″ Galvanized in .157″
WORKING AREA in 60″ x 120″ MAX. LOAD CAPACITY lbs 6,160 MACHINE AXES – 4 (X, Y, Z, U) AXIAL MOVEMENTS – – – X, U Axis/ Servo in 120″ Y Axis/ Servo in 60″ Z Axis/ Servo in 4
ACCELERATION – – – X, U Axis/ Servo G 1 Y Axis/ Servo G 1 Z Axis/ Servo G 1
MAX. AXIS SPEEDS – – – Combined IPM 4,176 Single Axis IPM 2,955
POSITIONING ACCURACY in .004″ REPETITION ACCURACY in .002″ AUXILARY GASES – – – Oxygen – 0.5 – 6 Bar Nitrogen – 0.5 – 25 Bar Dry Air – 0.5 – 25 Bar
CUTTING HEAD – Precitec LightCutter CNC – Beckhoff 2215 CAD/CAM SOFTWARE – Lantek Expert CUT NETWORK CONNECTION – Ethernet AVERAGE CONSUMPTION kW 12 MACHINE DIMENSIONS in 201″ x 104″ x 71″ MACHINE WEIGHT lbs 9,000

Description

Brand – ERMAKSAN Model – FIBERMAK HAWK Type – Laser Cutters Condition – Used – Excellent
