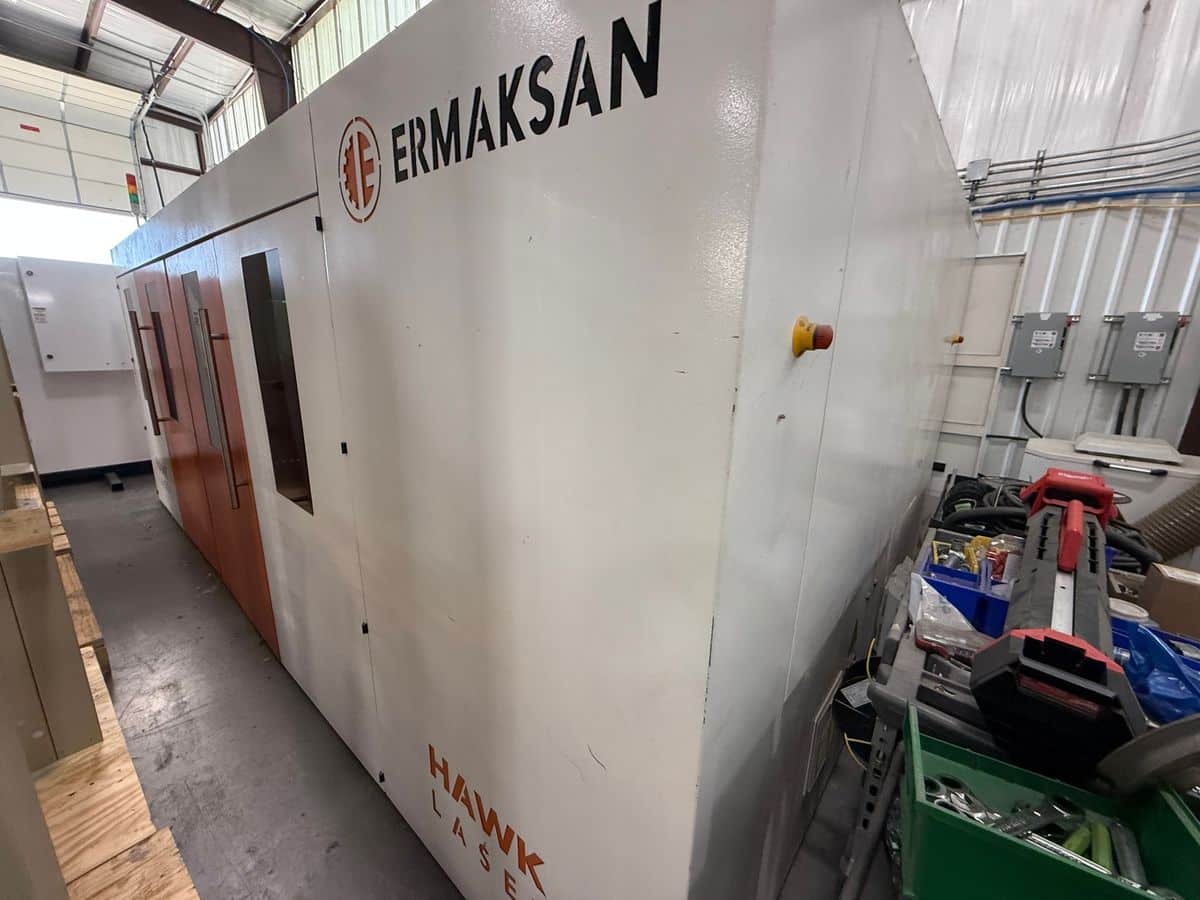

Manufacturer: Ermaksan
Model: FIBERMAK-HAWK
Year: 2022
Watt: 2000
Stock # 171250029
Price: $185,000 USD
1 / 7
Click to zoom in
1 / 7
For Sale by Equipment Hub
Surplus Record Dealer Since 2014
Location: Decatur, GA
Contact Drake Denham
Phone Number: 770...> Show Phone Number 770-621-0495
Let the seller know you found their listing on Surplus Record!
$185,000 USD
Description
General Info
Stock #: 171250029
Location: OK
Brand: ERMAKSAN
Model: FIBERMAK HAWK
Year: 2022
Approx. Shipping Weight: 18,000 LBS
Approx. Shipping Dimensions: 339"L x 118"W x 103"H
Loading Fee: Rigging Required

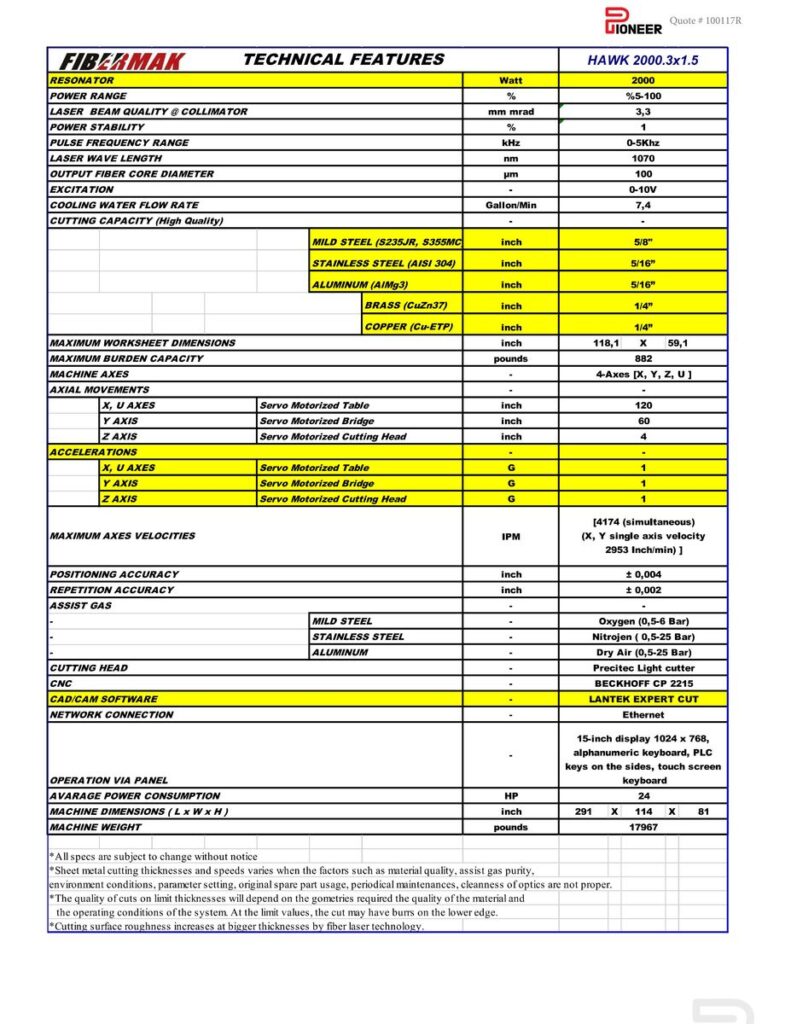

Specifications
Table Size: 5' x 10'
Maximum Worksheet Dimensions: 118.1" x 59.1"
Maximum Workpiece Weight: 882 LBS
X-Axis Travel (Servo Motorized Table): 120"
Y-Axis Travel (Servo Motorized Bridge): 60"
Z-Axis Travel (Servo Motorized Cutting Head): 4"
U-Axis Travel (Servo Motorized Shuttle Table): 120"
Mild Steel (S235JR, S355MC) Capacity: 5/8"
Stainless Steel (AISI 304) Capacity: 5/16"
Aluminum (AlMg3) Capacity: 5/16"
Brass (CuZn37) Capacity: 1/4"
Copper (Cu-ETP) Capacity: 1/4"
Resonator: 2000 Watt
Equipped With

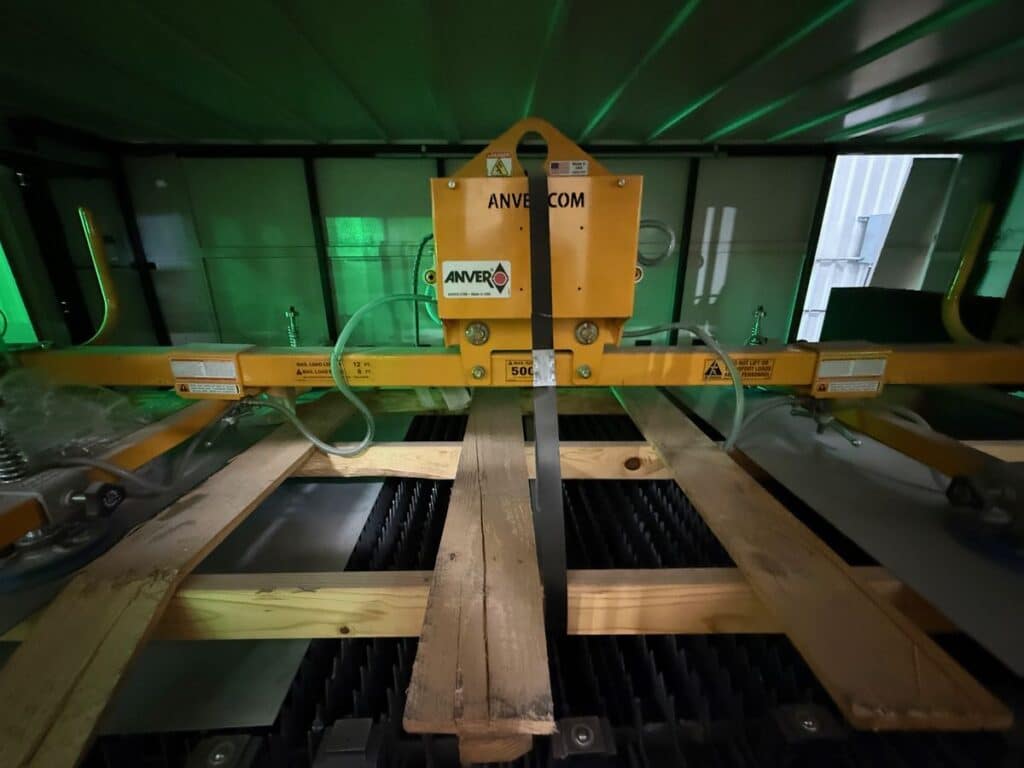

Precitec Light Cutter Head w/ Auto Focus, BECKHOFF CP 2215 Stand Alone and Mobile Controller, 15" Touch Screen, LANTEK Expert Cut Nesting Software, Ethernet Connection, Anver Vacuum Lift included.
Additional Info
Machine is under power and available to demo.
Stock #: 171250029
Location: OK
Brand: ERMAKSAN
Model: FIBERMAK HAWK
Year: 2022
Approx. Shipping Weight: 18,000 LBS
Approx. Shipping Dimensions: 339"L x 118"W x 103"H
Loading Fee: Rigging Required
Specifications
Table Size: 5' x 10'
Maximum Worksheet Dimensions: 118.1" x 59.1"
Maximum Workpiece Weight: 882 LBS
X-Axis Travel (Servo Motorized Table): 120"
Y-Axis Travel (Servo Motorized Bridge): 60"
Z-Axis Travel (Servo Motorized Cutting Head): 4"
U-Axis Travel (Servo Motorized Shuttle Table): 120"
Mild Steel (S235JR, S355MC) Capacity: 5/8"
Stainless Steel (AISI 304) Capacity: 5/16"
Aluminum (AlMg3) Capacity: 5/16"
Brass (CuZn37) Capacity: 1/4"
Copper (Cu-ETP) Capacity: 1/4"
Resonator: 2000 Watt
Equipped With
Precitec Light Cutter Head w/ Auto Focus, BECKHOFF CP 2215 Stand Alone and Mobile Controller, 15" Touch Screen, LANTEK Expert Cut Nesting Software, Ethernet Connection, Anver Vacuum Lift included.
Additional Info
Machine is under power and available to demo.
General Info
- Stock #: 171250029
- Location: OK
- Brand: ERMAKSAN
- Model: FIBERMAK HAWK
- Year: 2022
- Approx. Shipping Weight: 18,000 LBS
- Approx. Shipping Dimensions: 339″L x 118″W x 103″H
- Loading Fee: Rigging Required
Specifications
- Table Size: 5′ x 10′
- Maximum Worksheet Dimensions: 118.1″ x 59.1″
- Maximum Workpiece Weight: 882 LBS
- X-Axis Travel (Servo Motorized Table): 120″
- Y-Axis Travel (Servo Motorized Bridge): 60″
- Z-Axis Travel (Servo Motorized Cutting Head): 4″
- U-Axis Travel (Servo Motorized Shuttle Table): 120″
- Mild Steel (S235JR, S355MC) Capacity: 5/8″
- Stainless Steel (AISI 304) Capacity: 5/16″
- Aluminum (AlMg3) Capacity: 5/16″
- Brass (CuZn37) Capacity: 1/4″
- Copper (Cu-ETP) Capacity: 1/4″
- Resonator: 2000 Watt
Inquire Further with Equipment Hub!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!

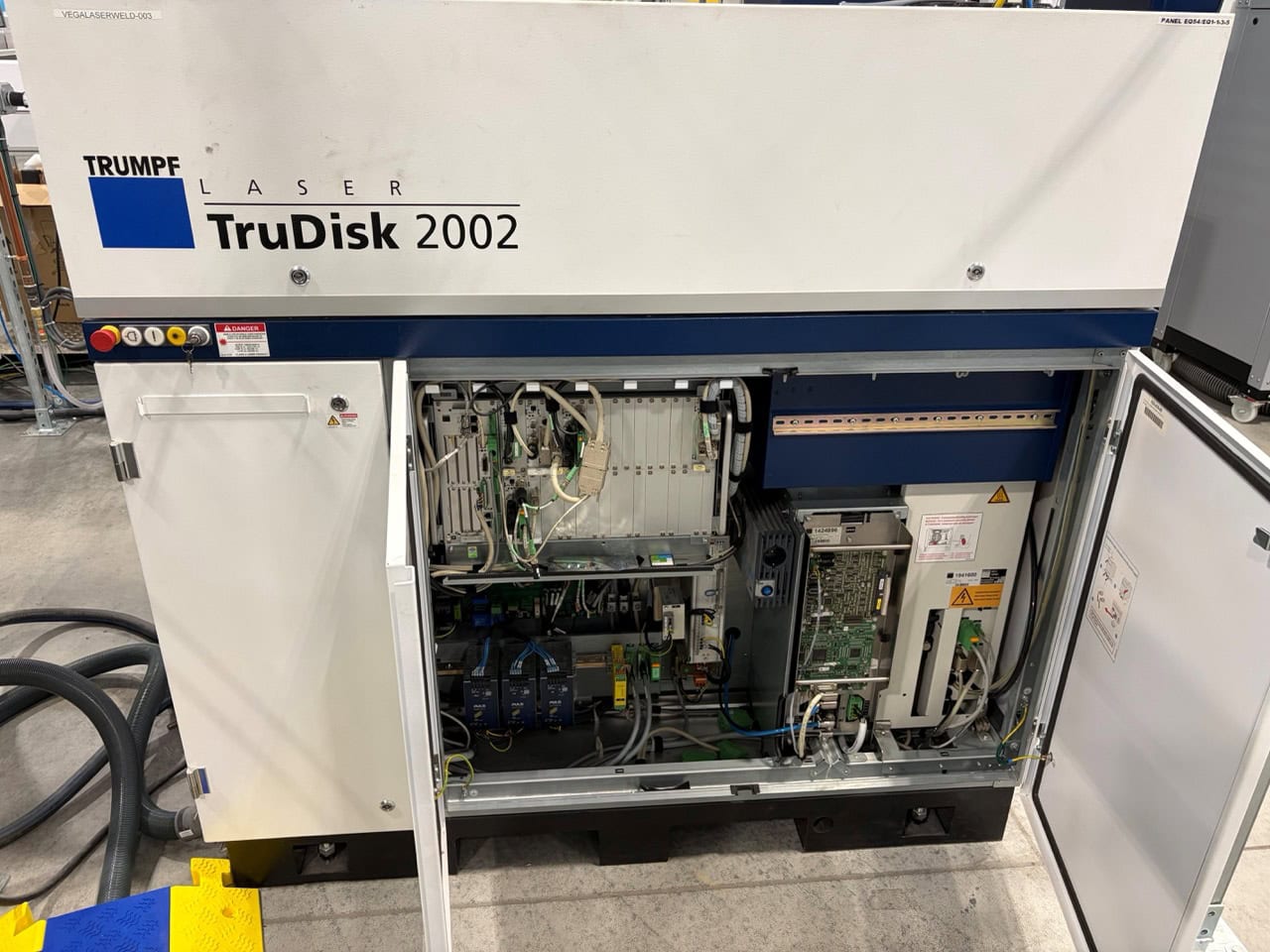

Trumpf #TruLaser-Cell-3010, Fiber Laser, 2000 watt, 43.3" x26" table, 39.4" X, 19.7" Y, 15.7" Z, 120° B-Axis, 460 V., 3 Ph., 2011
