Ermak USA #Hawk, 1000 watt laser, 5' x 10', Beckhoff CP 2215 CNC Control, 2022

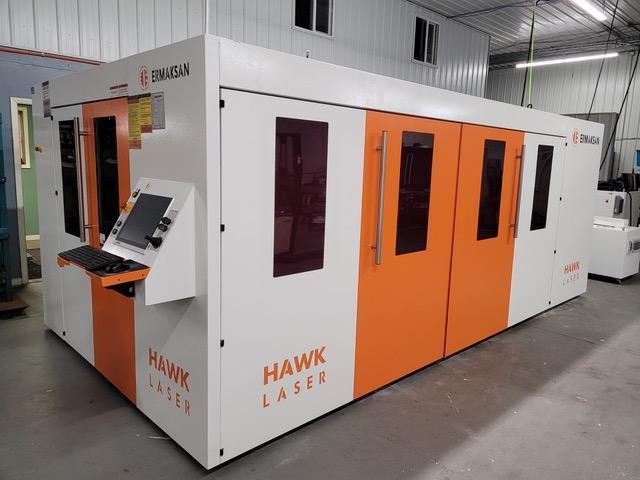

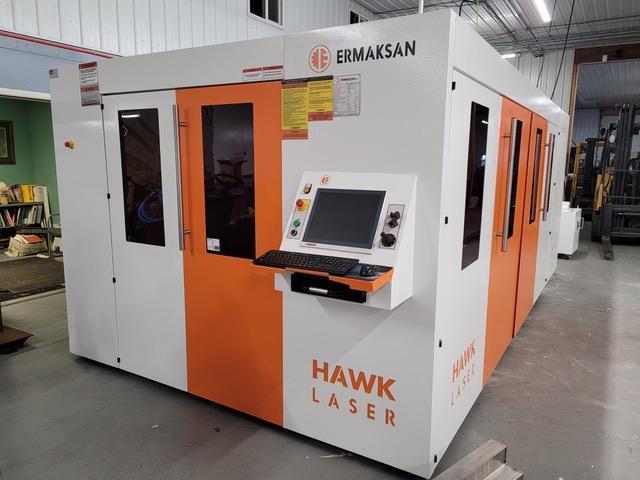

2022 Ermak USA Hawk 1000 kw CNC Fiber Laser Cutter 5' x 10'
1000 Watt Resonator
Power Range: 10-105%
Laser Beam Quality @ Collimator: MM Mrad 1-2
Power Stability: 1-3%
Pulse Frequency Range: 5 kHz
Laset Wave Length: nm 1070 +/-5
Output Fiber Core Diameter: 50
Excitation: Laser Diod
Cooling Water Flow Rate: 4.2 Gallons Per Minute
Cutting Capacity:
Mild Steel (S235JR, S355MC) 5/16"
Stainless Steel (AISI 304) 5/32"
Aluminum (AIMg3) 1/8"
Brass ( CuZ2n37) 5/64"
Copper (Cu-ETP) 5/64"
Max Worksheet: 118.1" x 59.1"
Max Table Weight: 661 Lbs
Machine Axis: 4-Axes (X, Y, Z & U)
Assist Gas:
Mild Steel-Oxygen (0,5-6 Bar)
Stainless-Nitrogen (0,5-25Bar)
Aluminum-Dry Air (0,5-25 Bar)
Cutting Head: Precitec Mini Cutter
CNC Control: Beckhoff CP 2215
CAD/CAM Software: Lantek Expert Cut
Network: Ethernet

Machine Dimensions: 201 x 104 x 71" @ 11684 Lbs

SEE ATTACHED PDF BELOW FOR MORE INFORMATION ON ERMAK USA AND THE LASER
