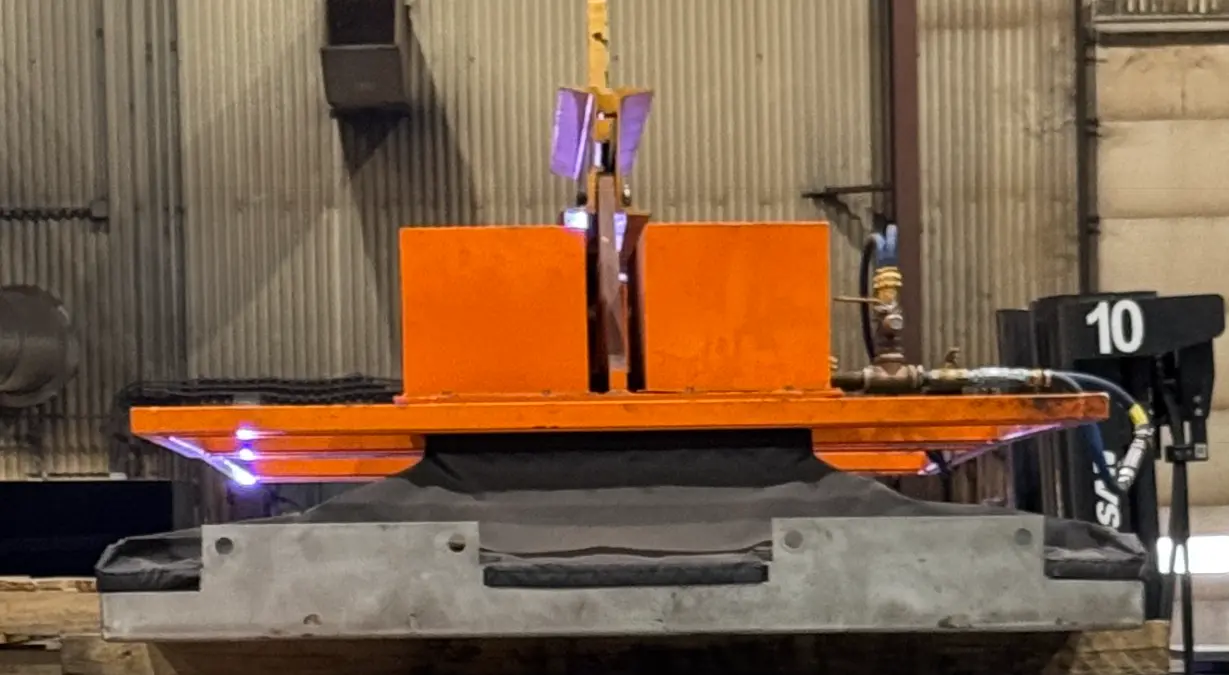

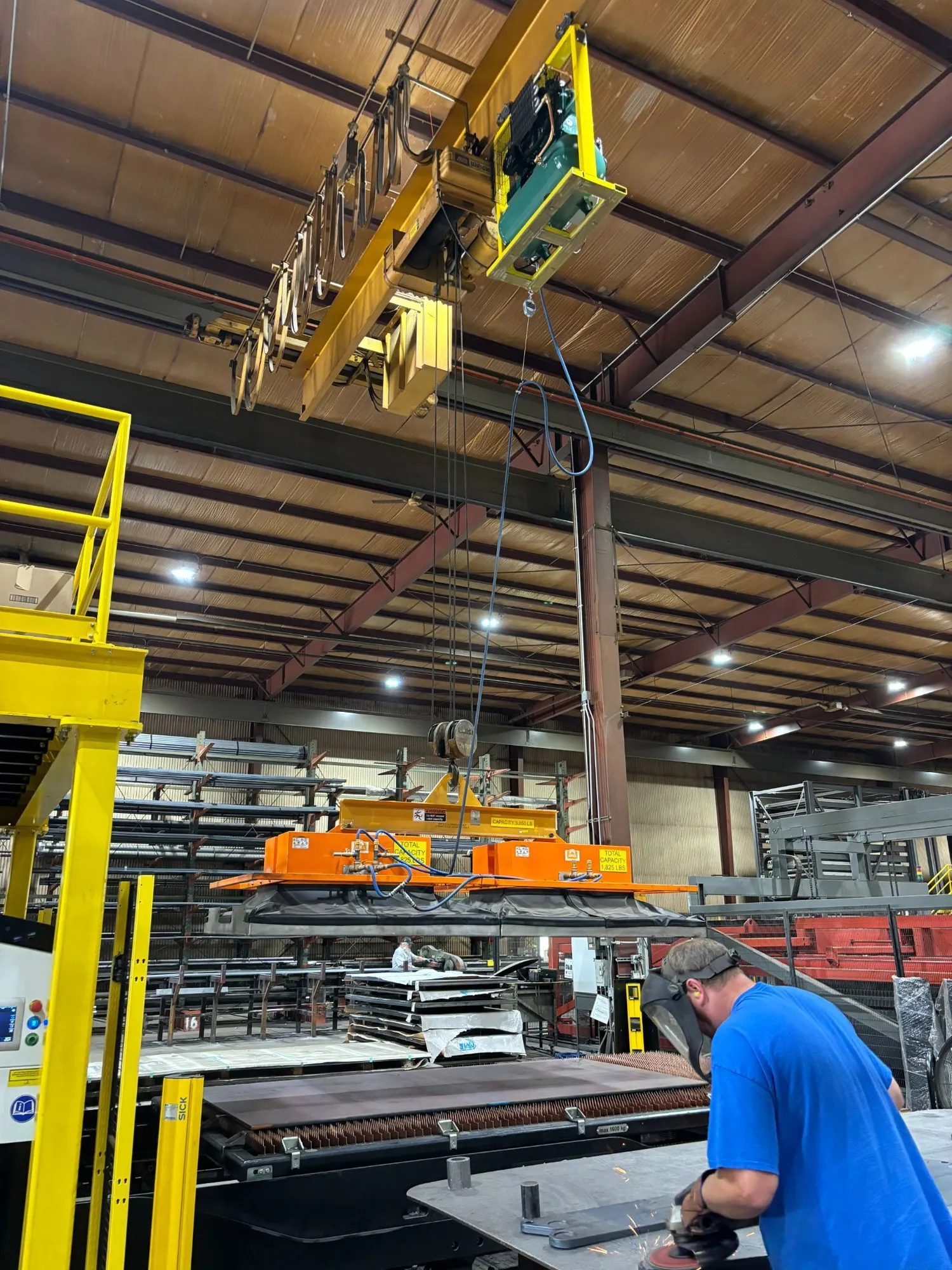

Description To lift 60” x 120” steel sheets that are up to 1.75” thick, from a stack to a cutting table, and provide 100% removal of cut parts and skeleton of sheets which are 60” x 120”, we are pleased to offer the following: One (1) Eriez Air Powered, Full Coverage, Permanent Lift Magnet System with the following specs: -Overall Size: 60” x 120” -Modular design with (2) 60”x60” units, can unhook 1 unit to be used separately if desired -3/16” thick stripper pan construction -Dust Boot between magnet plate and stripper pan -Steel Covers to protect pneumatic cylinders and plumbing -Assembly to a single lift point -Total max system lift capacity: 3,650lbs on 3/8” and thicker steel Sheet, max thickness to be lifted is 1.75” -All cylinders plumbed to a common manifold for one QD connection point -Estimated 3 CFM at 90 psi air pressure required -Pendant controls to be supplied by others -Estimated system weight: 5,850lbs.
Inquire Further with Forge Manufacturing Solutions!
