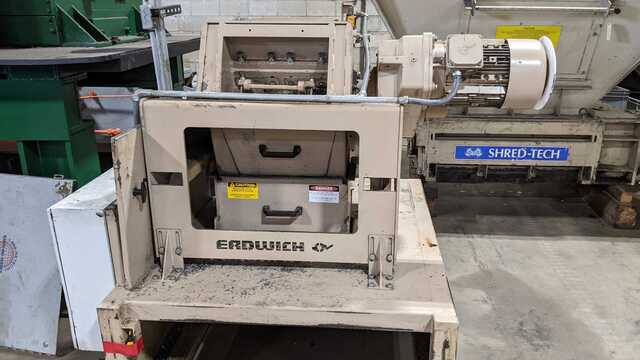

Erdwich #M600/1-400, single shaft shredder, 40 HP, 18 teeth

  Play Video

### **Technical Specifications**
#### **Motor Specifications**
- **Motor Power**: 40 HP (dual-motor configuration)
- **Power Requirements**: 480V, 60 Hz, 3-phase
- **Control System**: Integrated control panel with advanced motor controls
#### **Cutting Unit**
- **Number of Cutting Teeth**: 18 teeth (Approx)
- **Cutting Unit Dimensions**:
- Length: 402 mm
- Width: 502 mm
- Height: 298 mm
- **Cutter Design**: Shear cutting mechanism
- **Sizing Screen**: Integrated for material sizing and control
#### **Frame and Build**
- **Frame**: Heavy-duty steel frame
- **Mounting**: Shredder is mounted on a robust stand
- **Support Structure**: Elevated to facilitate material flow and handling
#### **Overall Dimensions**
- **Total Length A1**: 1381 mm
- **Total Length A2**: 1062 mm
- **Total Width B**: 633 mm
- **Total Height C1**: 578 mm
- **Total Height C2**: 792 mm
#### **Operational Features**

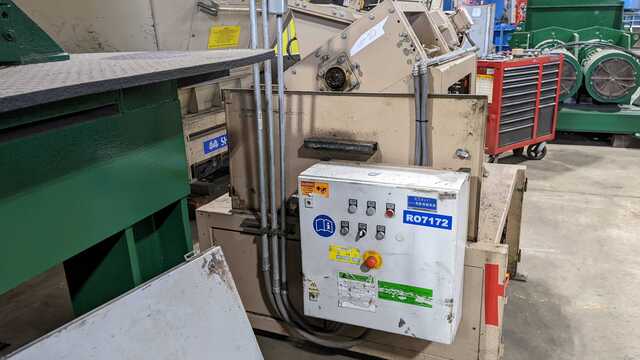

- **Control Panel**: Fully integrated control panel for automated and manual operations
- **Safety Features**: Emergency stop, safety switches on the hopper and frame
- **Shredding Speed**: Low-speed, high-torque for efficient shredding with minimal wear
---
### **Applications**
This shredder is specifically designed for:
- **Steel Chips**: Ideal for processing steel chips from machining operations
- **Recycling**: Suitable for various metals and industrial waste
- **Waste Management**: Perfect for heavy-duty recycling tasks requiring precision and durability
---

Request More Information from Seller
