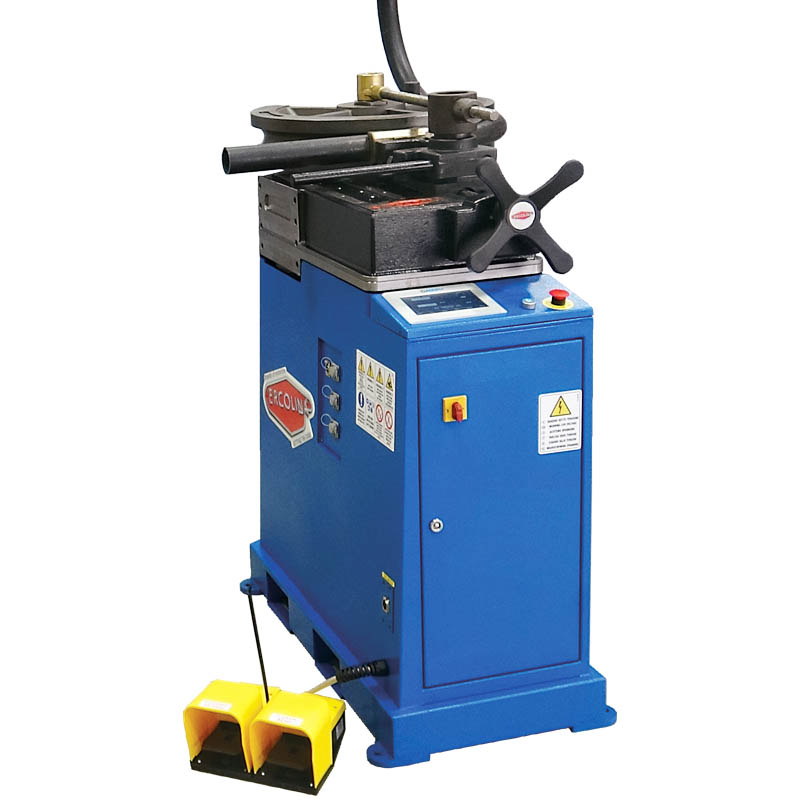

3" Ercolina #TB80 Top Bender, 3" tube, 2-1/2" Schedule 40 pipe, vari-bend speed, #1425010

Description

TB80 Top Bender with 3″ Tube or 2-1/2″ Schedule 40 Pipe Capacity. Control offers Multiple Program Storage with Individual Bend Angle and Springback Memory, Variable Bend Speed

SKU #1425010

Ercolina’s TB80 Top Bender is ideal for producing consistent quality bends in pipe, tube, squares, solids and other profiles with auto tune.

Key Features

• Mild steel tube capacity 3″
• Pipe capacity 2-1/2″ Sch. 40 Grade B A53
• Maximum CLR 16-1/2″
• Bend to CLR as small as 2D
• Touch screen control icon menu for easy access to auto and manual operating modes, programming (inch or metric), system diagnostics and multiple language capability
• Quick-change tooling system with multiple radii available
• Digital display of bend angle and bend speed
• Bend any angle to 180° with independent material springback and speed compensation for each bend
• Foot pedal control of bend and return functions
• Swing away counterbending die vise for easy material handling
• Counterbending die vise position monitored electronically for accuracy and repeatability
• Heavy-duty steel gear case, right or left bend capable
• No hydraulic components for quiet operation
• Mandrel ready with optional accessory
• Two axis positioning table for multiple and sequential bends available on special request
• On screen machine diagnostics
• All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.
