Emmegi #Welding/Cleaning, CNC Window Welding/Cleaning Production Line, 3500 mm x 2700 mm, 2016

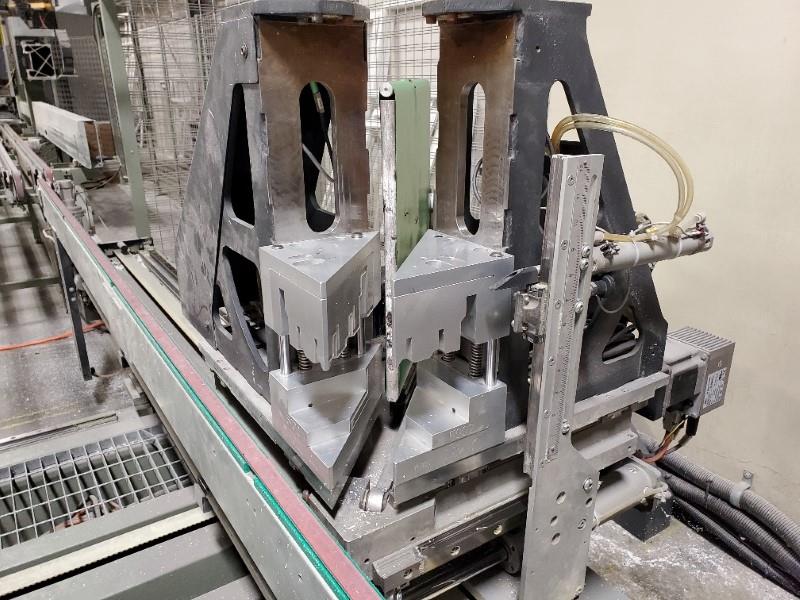

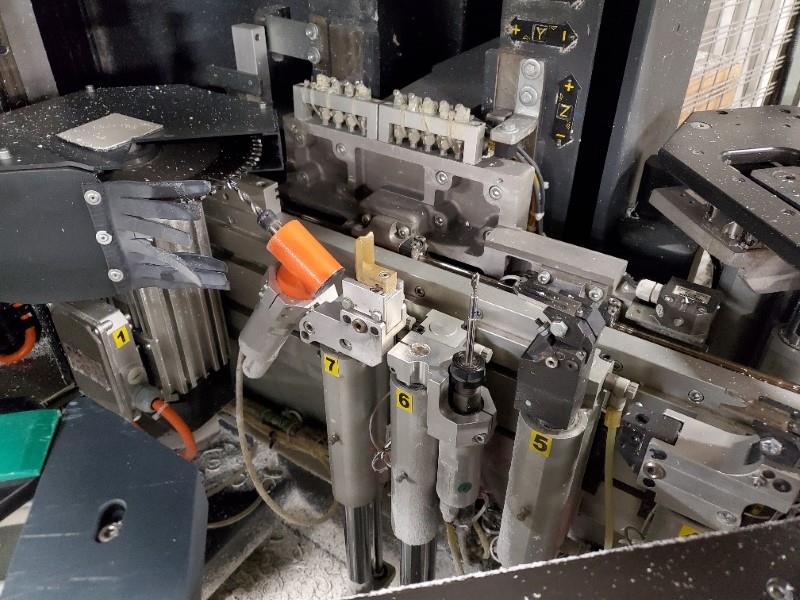

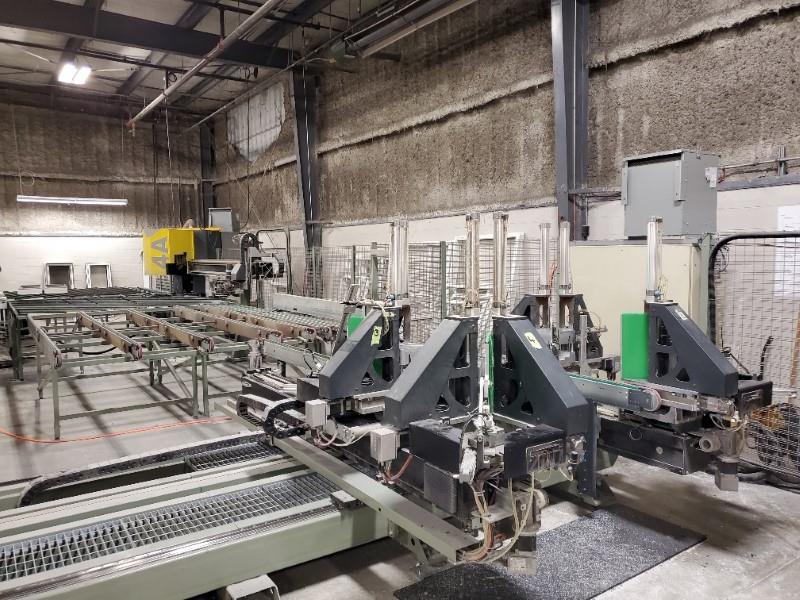

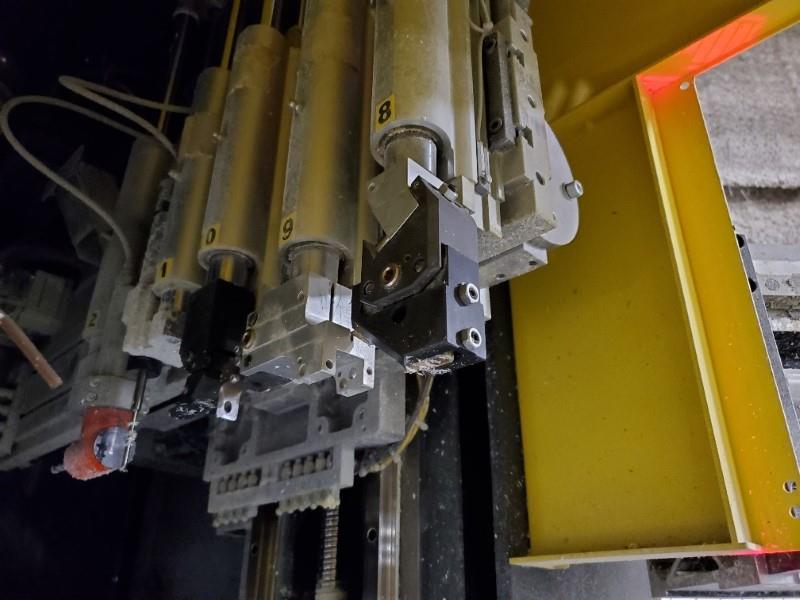

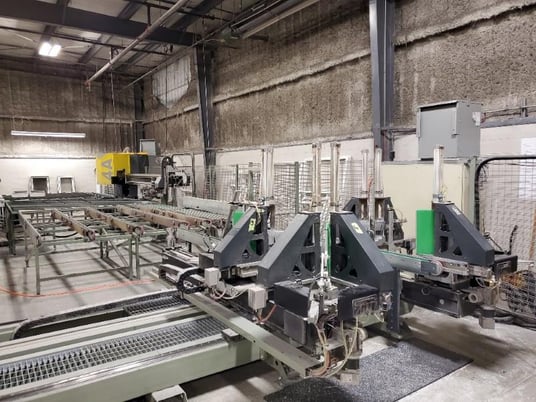

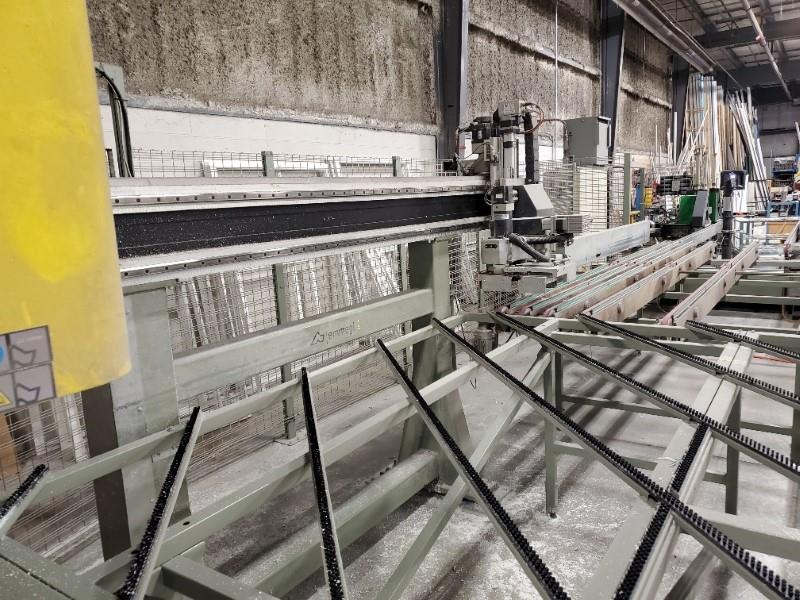

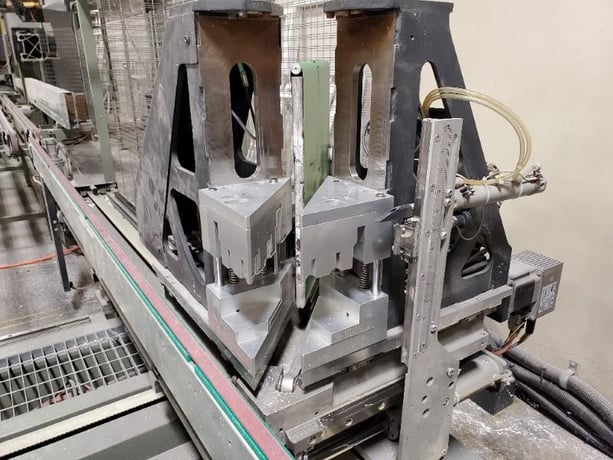

EMMEGI FUSION 4H DS / TRIMMER 4A CNC Window Welding/Cleaning Production Line - 3500 x 2700 mmGerman-engineered fully digital CNC cleaning and welding production line for PVC windows using seamless technology. Suited for mid to large production manufacturing environments and compatible with all PVC window profiles. Depending upon the product mix, up to 120 windows with one element per welding cycle can be welded in a diagonal or parallel joining process within an 8-hour shift. PC-based control technology with LCD process-reliable display of production and machine data with easy-to-operate intuitive menu navigation and the visual representation of machining processes on the touchscreen display. All cycle variables (times, speed, etc.) are programmable and can be preset in the machine. Window Welding/Cleaning Production Line Consists Of The Following Components:EMMEGI FUSION 4H DS Multi-Point (4-Head) Horizontal Welding Machine CNC simultaneous high-temperature welding of four corners at an angle of 90 with parallel welding feed. With electronic positioning of welding heads, PC control, Weld seam limitation of 2 mm, and automatic outfeed. Specifications: ● Working direction: Right to Left ● Line capacity: Standard 120 units / 8 hours shift. 1 unit = 1 frame + 1 sash ● Maximum dimensions of the frame with automatic unload: 3500 x 2700 mm ● Minimum dimensions of the frame with automatic unload: 400 x 350 mm ● Minimum dimensions of the frame with longitudinal frame loading device and door sill assembling: 400 x 430 mm ● Maximum profile height: 200 mm ● Minimum profile height: 35 mm ● Maximum width of the profile: 150 mmSeamless Working Area: ● Max. dimensions of frame with automatic unload - (Y-X): 3430 x 2630 mm ● Min. dimensions of frame with automatic unload - (Y-X) - Z Frame: 450 x 370 mm ● Min. dimensions of frame with automatic unload - seamless mode (Y-X) - L Frame: 420 x 300 mm ● Min. dimensions of frame with automatic unload - seamless mode (Y-X) - Door: 450 x 330 mm ● Min. dimensions of frame with longitudinal frame loading device and door sill assembling (Y-X mm) - Z Frame: 450 x 460 mm ● Min. dimensions of frame with longitudinal frame loading device and door sill assembling (Y-X mm) - L Frame: 420 x 410 mm ● Min. dimensions of frame with longitudinal frame loading device and door sill assembling (Y-X mm) - Door: 450 x 440 mm ● Maximum profile height: 110 mm ● Minimum profile height: 35 mm ● Maximum width of the profile - Frame: 115 mm ● Maximum width of the profile - Door: 130 mm ● Positioning speed X-Axis : 50 (m/Min) ● Positioning speed Y-Axis: 40 (m/Min)Dimensions: 7500 x 5900 x 1800Weight: 3500 kG ( Lbs)EMMEGI Transport / Cooling Table The powered automatic table transports the elements from welding to cleaning positions during which time the welds are allowed to "cool".EMMEGI TRIMMER 4A CNC Corner CleanerCNC corner cleaning
