For Sale by Asset Exchange Corporation
Surplus Record Dealer Since 2004
Location: Elk Grove Village, IL
Contact Gregg/Mark
Phone Number: 773...> Show Phone Number 773-866-9600
Let the seller know you found their listing on Surplus Record!
Description
Overview
Specifications
| Type: | Machining Centers, 5 Axis |
| Manufacturer: | SATELLITE XT 15500 |
| Model: | SATELLITE XT 15500 |
| Year: | 2014 |
| Stock #: | 55523 |
| Status: | For Sale |
Specifications
| X | 610" | 15,494 mm |
| Y | 43" | 1,092.2 mm |
| Z | 27" | 685.8 mm |
| # Axis | 5 | 5 |
| RPM | 24,000 RPM | 24,000 RPM |
| Weight | 47000 | 47000 |

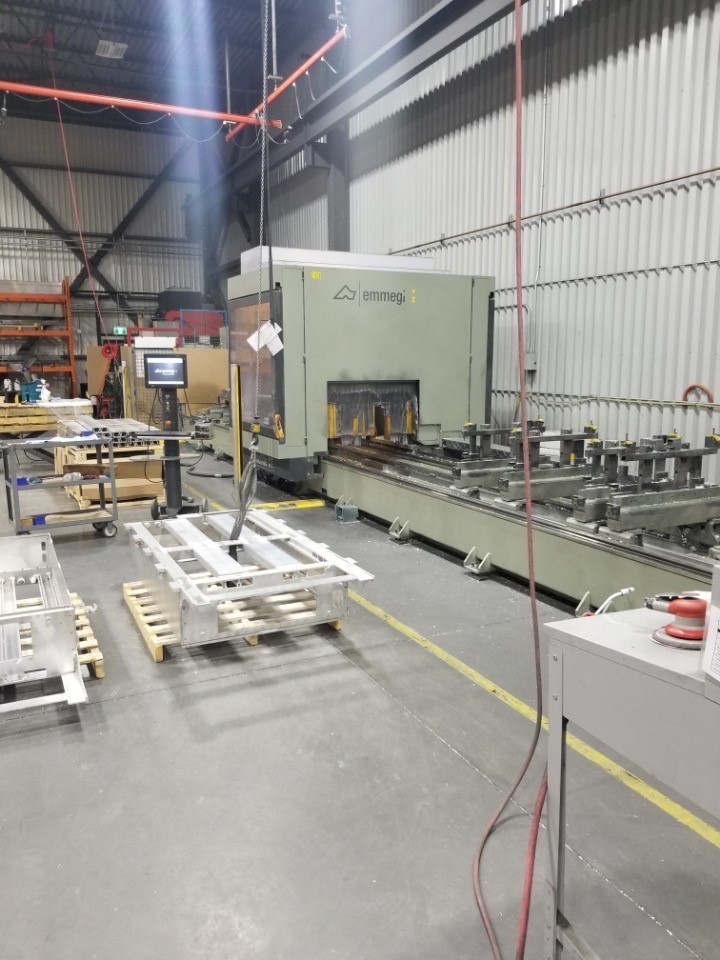

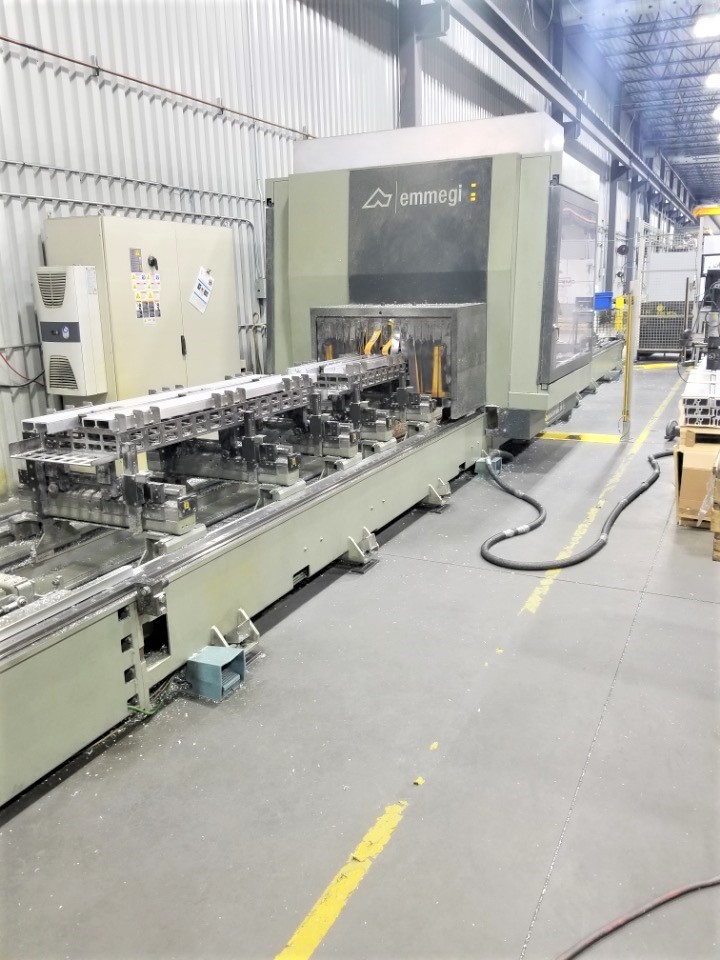

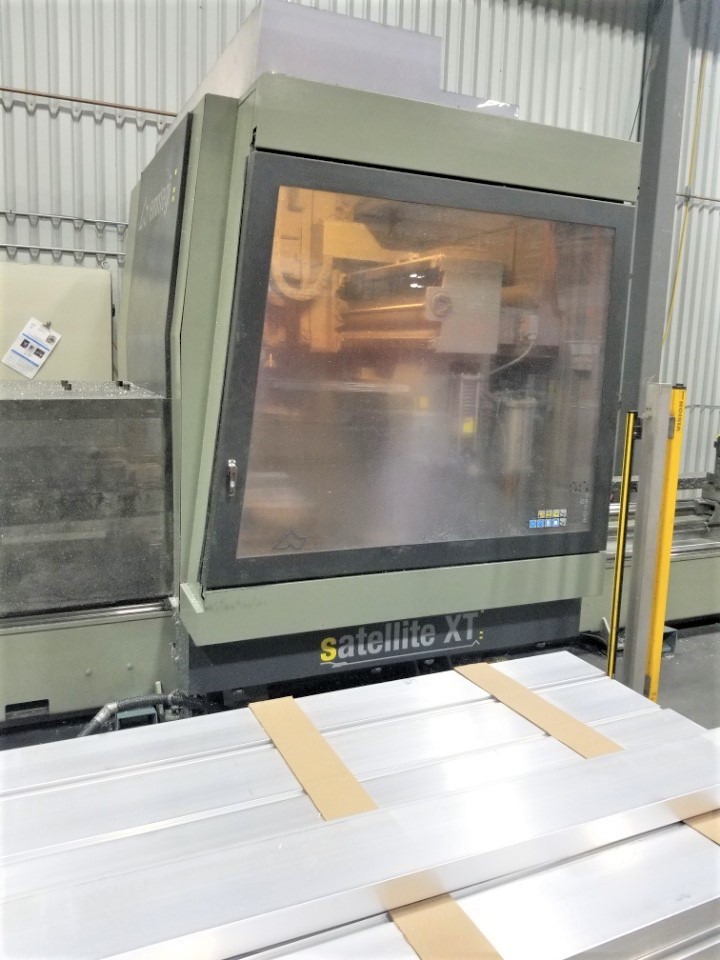

EMMEGI Satellite XT 5 Axis Mobil Gantry Type Machining Center
Specifications:
X Axis Working Traverse: 15,500 Mm, 610.2"
Y Axis Working Traverse: 1,100 Mm, 43.3"
Z Axis Working Traverse: 655 Mm, 25.7"
B Axis Vert/Horiz. Slewing 0 Deg + 90 Deg
C Axis Vert. Axis Slewing 0 Deg + 360 Deg
X Axis Positioning Speed 75 M/Min
Y Axis Positioning Speed 60 M/Min
Z Axis Positioning Speed 40 M/Min
B Axis Positioning Speed 3240 Deg/Min
C Axis Positioning Speed 3,600 Deg/Min
Spindle Speed Up o 24,000 Rpm
Maximum Power 15 Kw
No. Of Tools 16
Max. Tapping Capacity, Rigid M12
Max. No. of Pneumatic Clamp 12
Max. No. Of Clamp per Area 6
