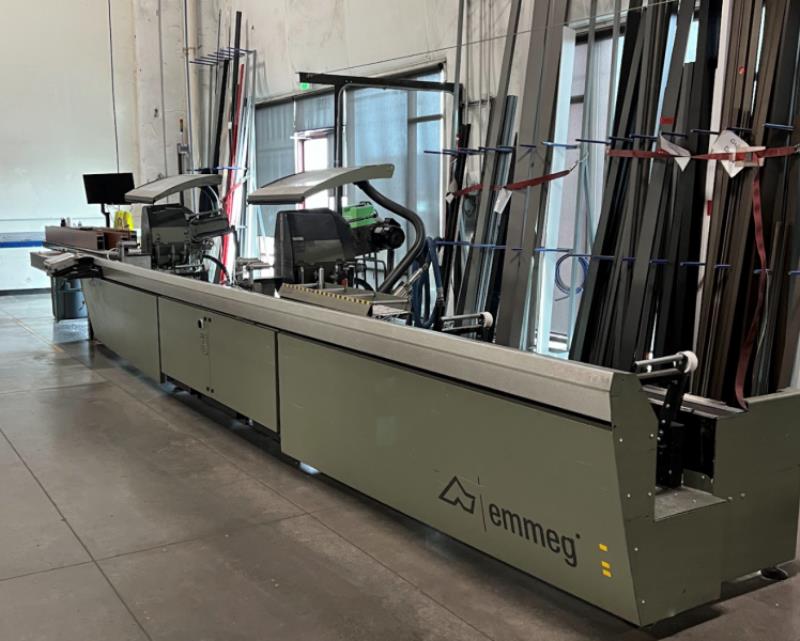

Emmegi #Precision-TS2-TU/6, automatic double end miter saw, 2016

Estimated monthly payment valid upon approved credit.

Request Formal Quote

EMMEGI PRECISION TS2 TU/6 Twin Head Double Miter Saw For Window Profile Fabrication - 6 Meter (20 ft)Twin-head cutting-off machine with 3 controlled axes with automatic movement of the mobile head and electronic management of all 45 (internal) to 15 (external) angles. Blades feed driven by hydro-pneumatic cylinders. Available with a useful cut of 5 m or 6 m in length. The ergonomic state-of-the-art control panel features a 10.4"; touchscreen display and fully customised software and is packed with functions developed in the Microsoft Windows ® environment specifically for this machine. Tilting of each head, up to 15 outward and 45 inward for both aluminium and PVC versions, is done by means of two circular guides placed on four pairs of steel casters. This patented solution makes it possible to eliminate obstructions in the cutting area, all to the benefit of profile positioning and clamping, Specifications: ● Cutting bed length: 6000 mm (20') ● Min. cutting length at 90: 375 mm (13-3/4") ● Min. cutting length tilted at 45: 375 mm ● Pivoting range inwards: 90 - 45 (up to 22.5 manual with digital display) ● Tilting range inwards pneumatically: 90 - 45 ● Saw blade diameter: 550 mm ● Saw blade speed: 2,250 RPM ● X-Axis positioning speed: 25 m/min. ● Number of blades: (2) ● Blade advancement: (8) Speed options ● Power output per motor: 4 kW (5.5 HP) ● Compressed air supply: 7 bar (95 PSI)Weight: 4244 Lbs. (1925 Kg)Dimensions: :24.75′ x 6.25′ x 5.25′ (7544 x 1905 x 1600 mm)Features: ● Capability for series production as well as for special applications ● Universal pivoting and tilting of both saw units allows cutting of high and wide profiles as well as every type of compound miter ● External-dimension cuts are possible for all cutting variants. Consequently, no complicated length calculations are necessary ● Pivoting range with digital angle display ● Functionality of Special Cuts PRO (extended cuts, short cuts, bevel cuts, "V" cuts) ● Functionality of semi-auto cuts SLICE (push cutting at variable angles & lengths) ● Safety hoods ● Pulsed coolant system ● Hydro-pneumatic saw feed ● Advanced Windows Computer ● (2) Vertical Pneumatic Clamps ● Workpiece Support - Moveable ● Chip Extraction System ● Roller table conveyor:: 10 x 15NOTE: The machine is in very good condition and ready for immediate shipment. NOTE: EX-FACTORY’s Logistic Department is experienced and set up to provide “Full Service Logistics"; from Suppliers to your Door. …Packaging, Container or Truck Loading, Freight, Insurance (door to door), US or Canadian Customs, Duty, and domestic shipping to your Plant Door.
