Elumatec #SBZ-151, 5-Axis CNC profile machining center, 24000 RPM, 34' bed length, 2016

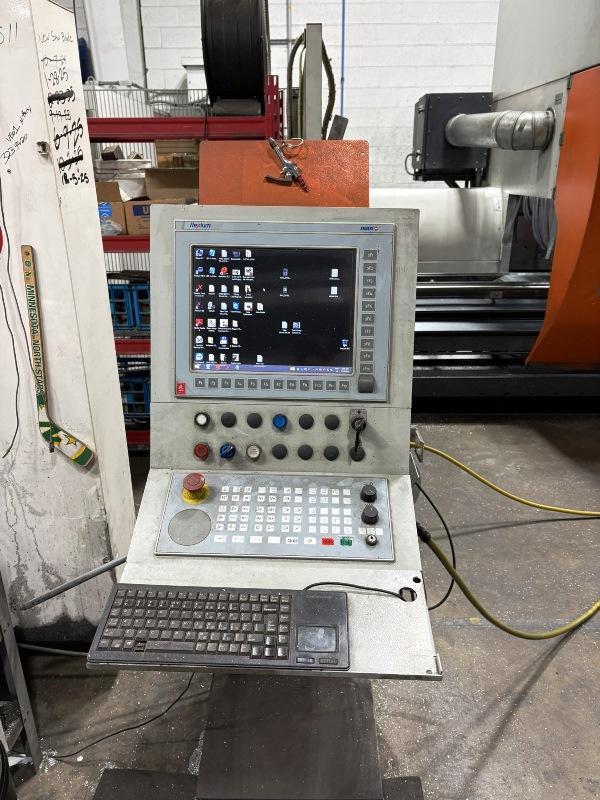

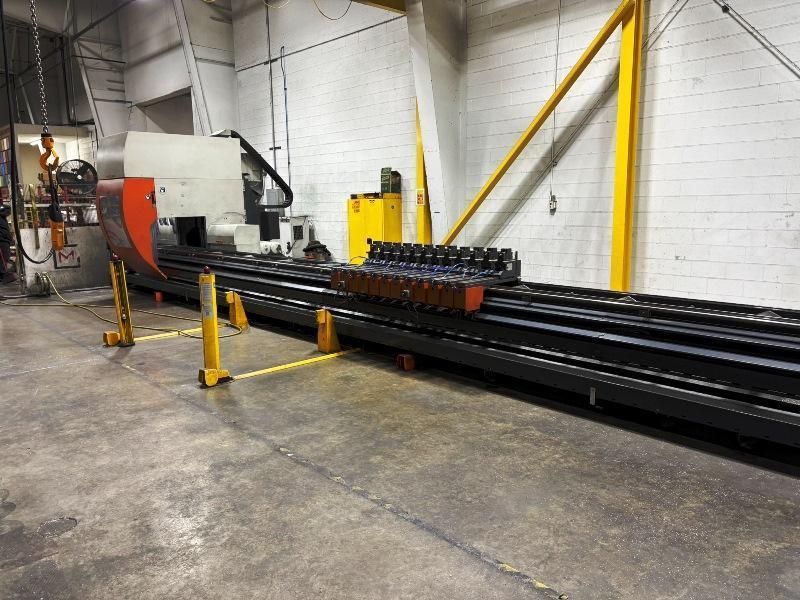

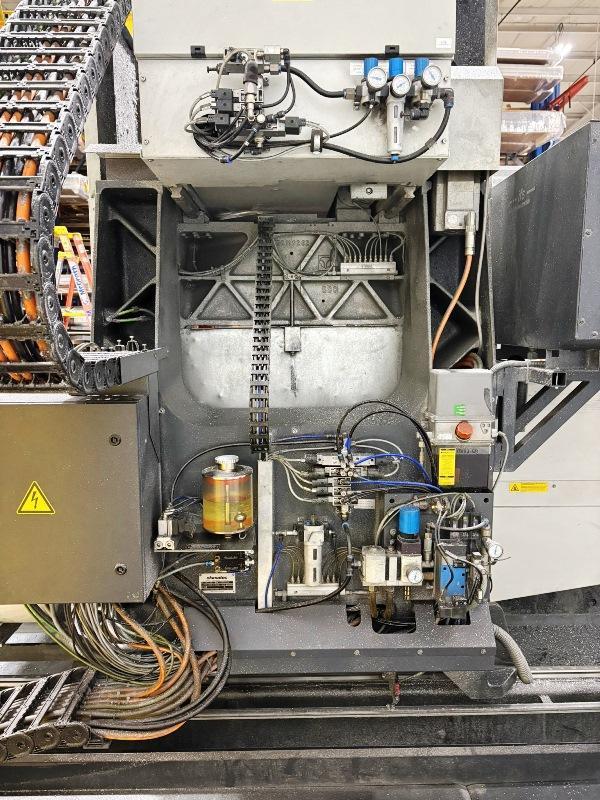

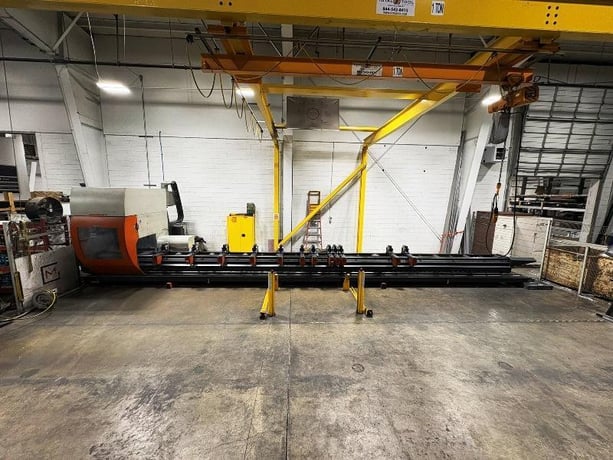

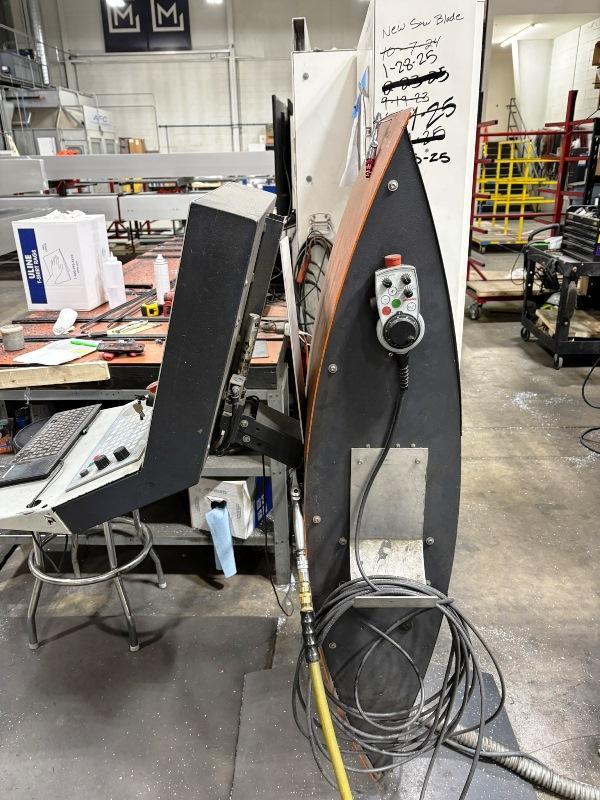

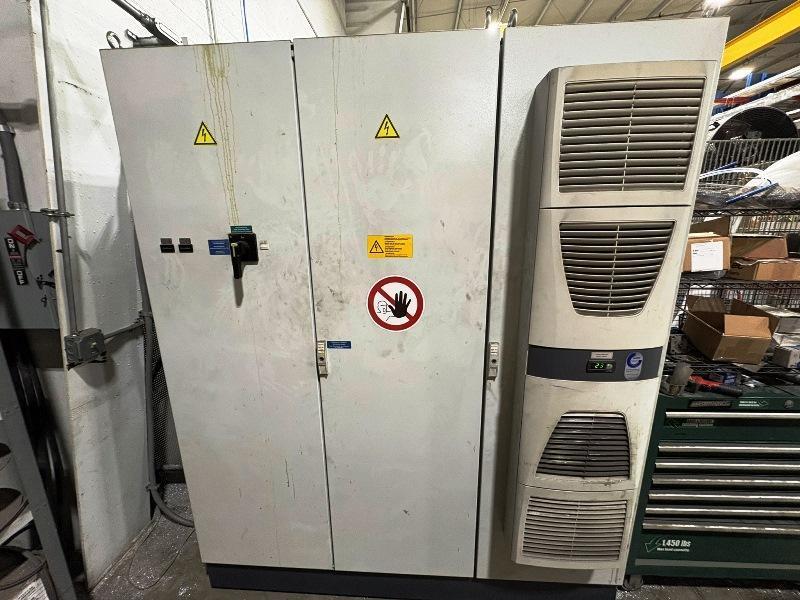

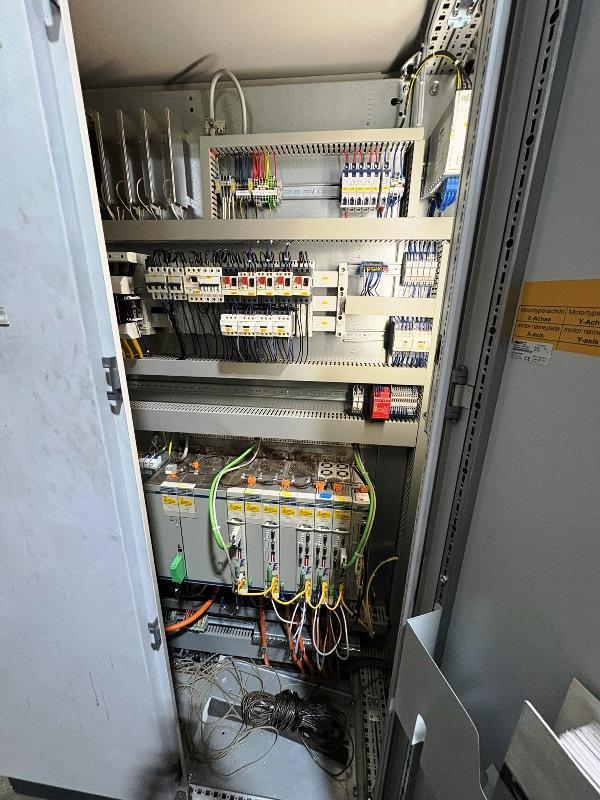

ELUMATEC SBZ 151 5-AXIS CNC PROFILE MACHINING CENTER

New 2016

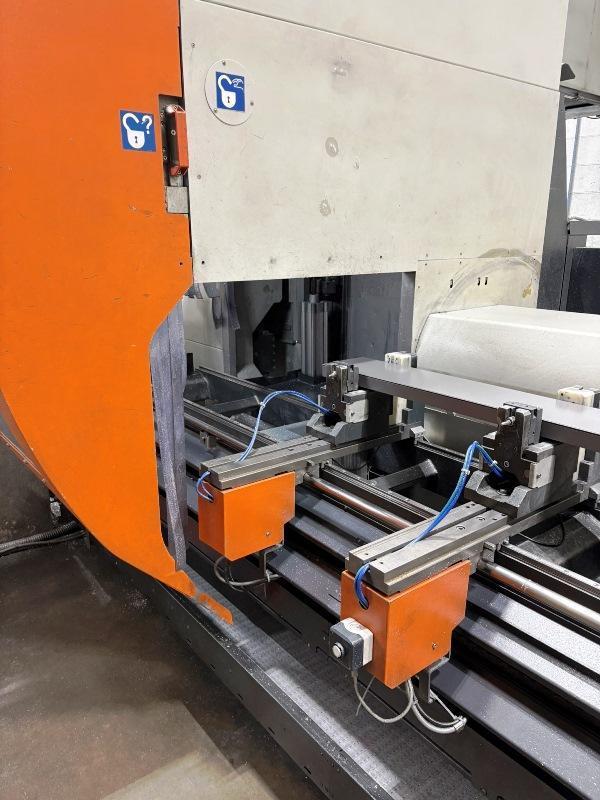

5-Axis CNC automatic profile machining center dsigned for flexible and efficent machining of aluminum and thin walled steel profiles. All operatons, such as routing, drilling, tapping, thread milling, notching and sawing, are performed while the profile bar is stationary to protect the profile surfaces.

6-Sided Machining including from below with an angle head (1) Magazine can be equipped with (13) Standard Tools & (7) Special Tools (angle routing head and special cutters) An additional magazine for the saw blade. Diameter 400 mm or 500 mm.

CAPICITIES:

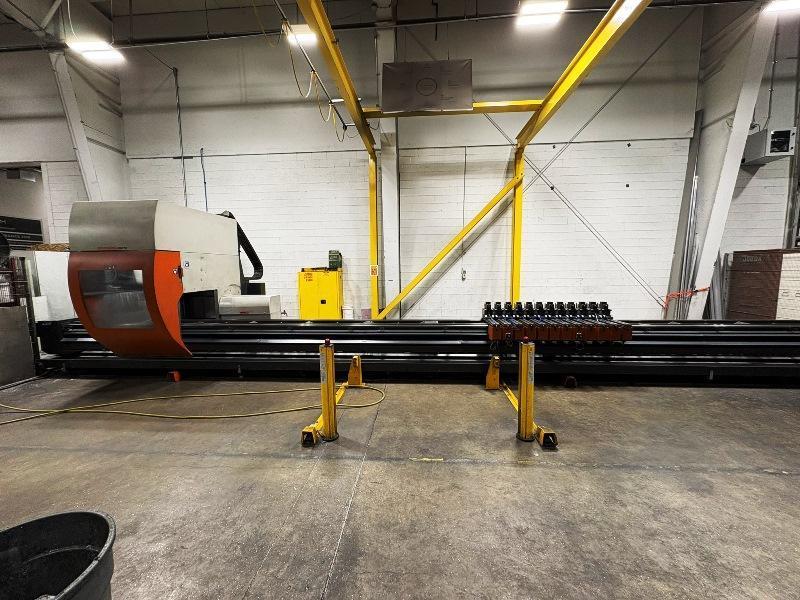

Bed Length 34"
Travers Path X-Axis 167 FPM
Traverse Path Y-Axis 102 FPM
Traverse Path Z-Axis 102 FPM

Pivoting Angle A-Axis for Saw Blad with Diameter of 500 mm +/- 100" (for Saw Blade with Diameter of 400 mm +/- 110")
C-Axis Pivoting Angle +/- 182"
Positiong Acuracy X/Y/Z Axis +/- 0.1 mm/m (A/C-Axis +/- 0.1"

SPECIFICATIONS:
Max. Spndle Speed 24,000 RPM
Spindle Power Output 20 KW S1

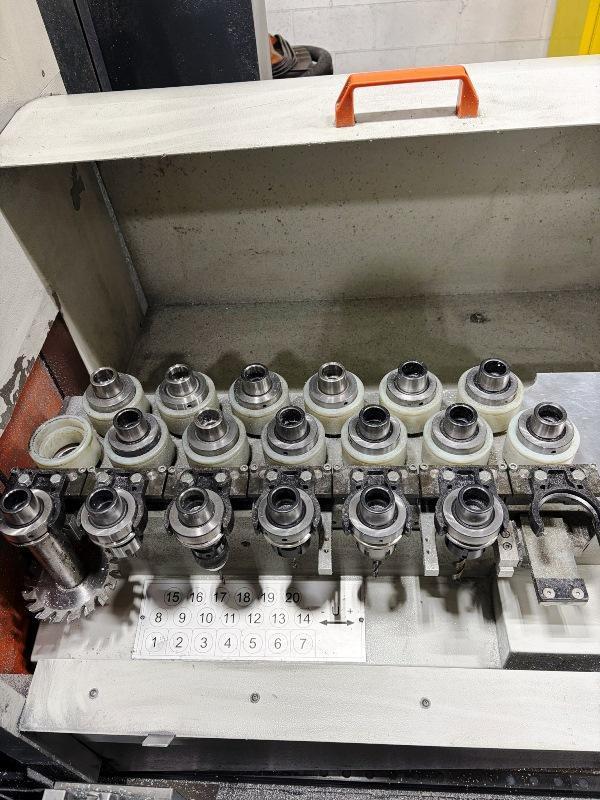

Right Tool Changer (29) Tool Positions
Left Tool Changer (1) Saw Blade with a Diameter of 500 mm (400 mm Optional)
Max. Cutting tool Diameter 100 mm
Tool Holder HSK-63R
Compressed Air Supply 7 Bar (100 PSI)
Approx. Air Consumtion Per Min. 265 Liters
Approx. Dimensions 489" x 124" x 121" H
Approx. Weight 9,300 Lbs.
