Elumatec #SBZ-130, CNC Profile Machining Center, 3-Axis, 386.61" max L, 12.20" width x 10.24" H, 386.61" X, 33.46" Y, 25.59" Z, 213 FPM X, 196 FPM Y & Z, 24000 RPM, 2012

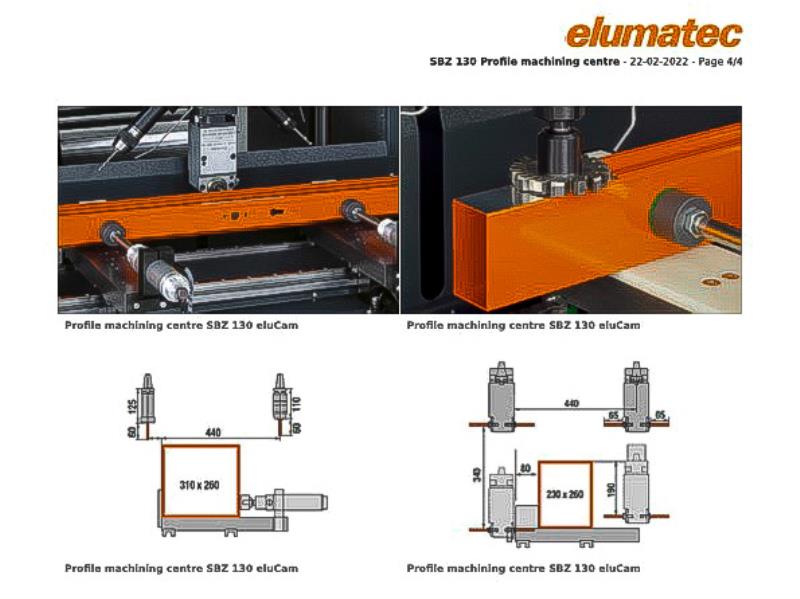

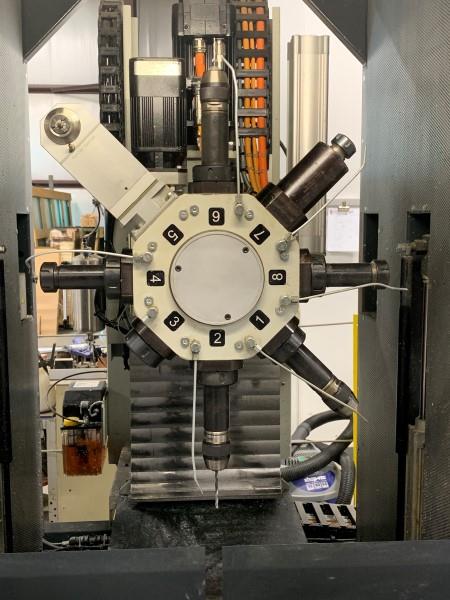

ELUMATEC SBZ-130 CNC Profile Machining Center - 8.5 Meter (28 ft)NOTE: Turret has one bad head3-Axis CNC profile machining center designed for economical and efficient machining of aluminium, steel, and stainless steel profiles. All operations, such as routing, drilling, and tapping are performed while profile bar is stationary to protect profile surfaces.Onboard turret head ensures that tool changing times are kept very short, thereby optimizing machining cycles. Turret head can be equipped with 8 tools or angle routing heads. Automatic clamping adjustment enables machine to position material clamps.Specifications: -- Max. machining length: 9,820 mm (386.61") (without profile end machining), 9,700 mm (381.89") (with profile end machining). -- Maximum machining width x height: 310 x 260 mm (12.20" x 10.24") (depending on tooling configuration, see photo). -- Travels: X-Axis 9,820 mm (386.61"), Y-Axis 850 mm (33.46"), Z-Axis 650 mm (25.59"), Pivoting angle A-Axis 0 - 180 freely programmable in 1/10 steps. -- Rapid traverse: X-Axis 65 MPM (213 FPM), Y-Axis 60 MPM (196 FPM), Z-Axis 60 MPM (196 FPM). -- Maximum spindle speed 24,000 RPM.Equipped with: -- 8-Position Turret, Rotating angle head within spindle, Toolholder set with holder for end milling tool. -- (8) Horizontal Material Clamps, Automatic recognition of clamping position, Shaving trough, Pulsed coolant system, Safety light curtain. -- 15" Touchscreen Control with "WINDOWS XP" Operating system, “ELUCAM"; Software, USB Ports, RJ45 10/100 MBit Network connection, Remote pendant control, Material stop foot pedal control.
