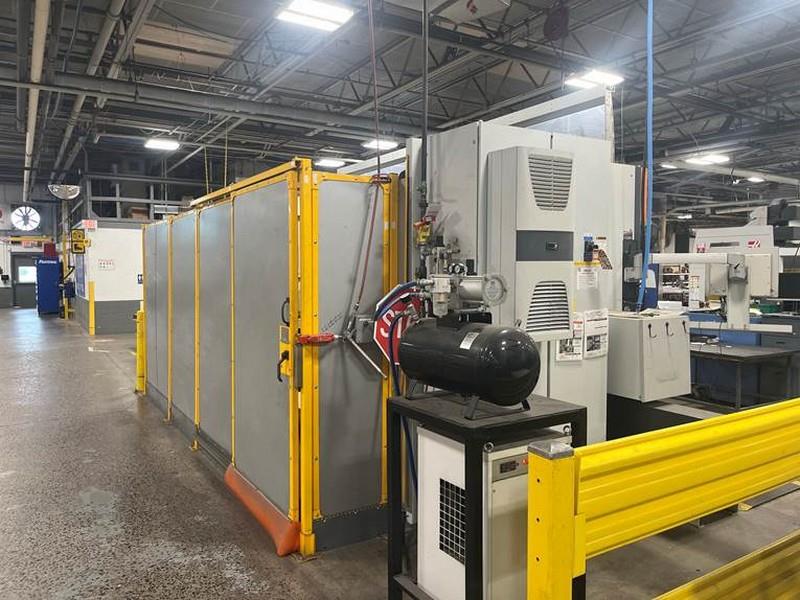

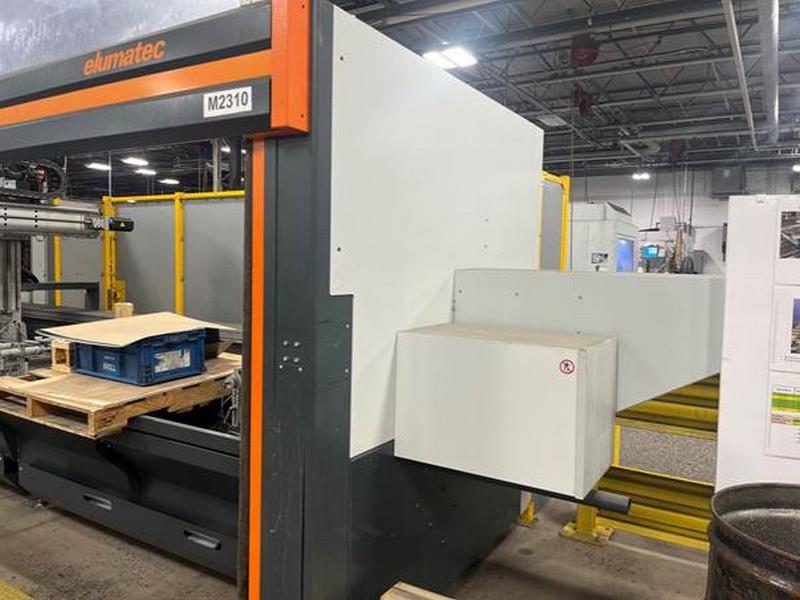

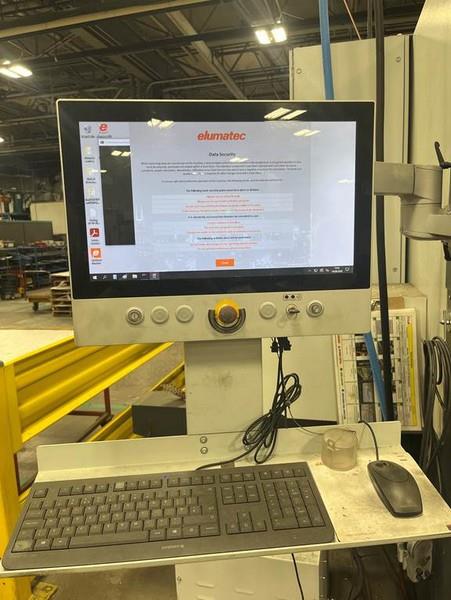

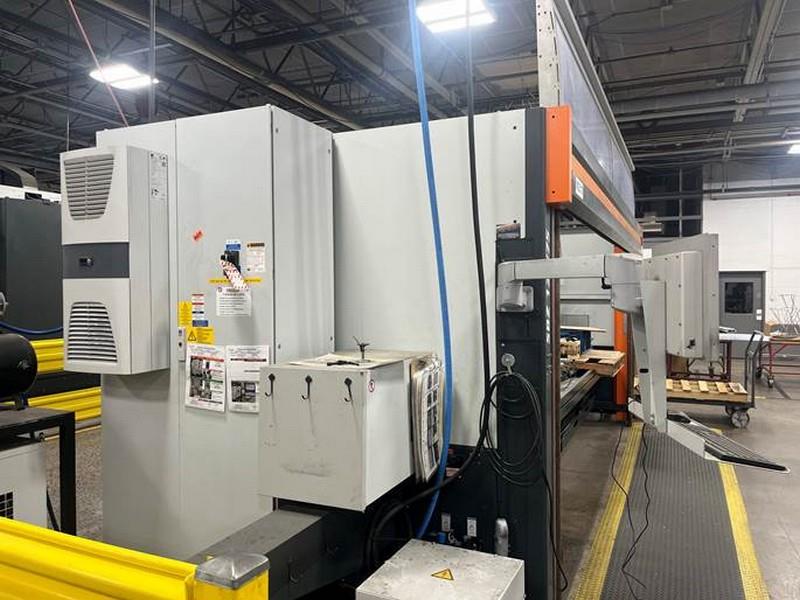

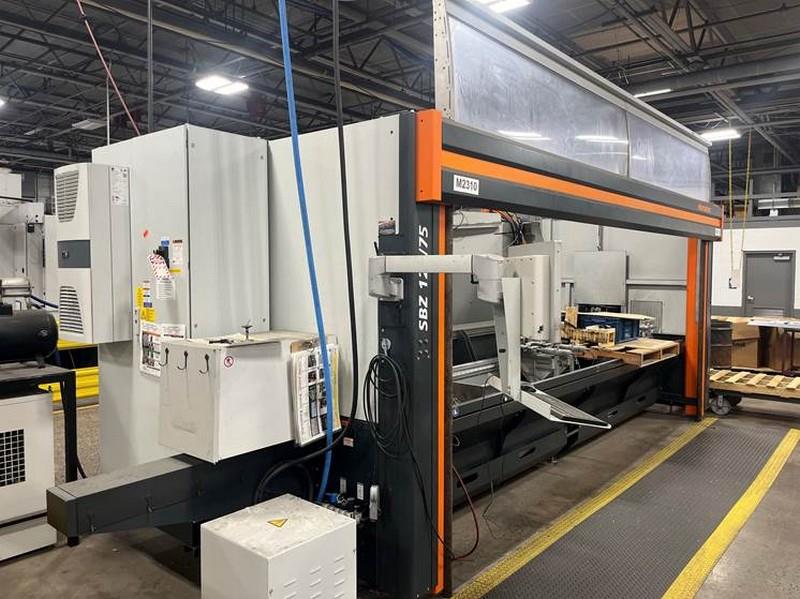

Elumatec #SBZ-122/75, CNC profile machining center, 5-Axis, 12.5' bed, 164.4" X, 40.9" Y, 21.3" Z, 24k RPM, 9.4 HP, 12 ATC, HSK-F63, 2022

$179,500 USD

Request Formal Quote

ELUMATEC SBZ 122/75 CNC Profile Machining Center - 3.8 MeterA 5-axis machining center designed for economical and efficient machining of aluminum, PVC, and thin-walled steel profiles. It is particularly suitable for companies automating their window and door production processes.The turning device is integrated in the spindle, which enables the adjustment of the rotating angle head to 0, 90, 180, and 270. Thus, the profile can be processed from the front, rear, and both ends with two different tools.To protect the profile surfaces, all operations, such as routing, drilling, and tapping, are performed while the profile bar is stationary. All [5] axes can move simultaneously with RTCP (Rotation Tool Centrepoint). The additional C-axis allows the machine to face profiles from the left and right.The 2-axis add-on unit with the A-axis and C-axis can also accommodate a saw blade with a diameter of 180 mm.Specifications: Max. machining length without profile end machining: 3851 mmMax. machining length with profile end machining: 3525 mmTraverse path X-axis: 4176 mm, Vmax. 120 m/Min.Traverse path Y-axis: 1040 mm, Vmax. 60 m/Mn.Traverse path Z-axis: 540 mm, Vmax. 30 m/Mmin.A-axis continuously adjustable from -120 to +120C-axis continuously adjustable from -220 to +220Direction of machining: 5 (above, behind, front, left, right) Positioning accuracy: +/- 0.1 mmRouting spindle speed: Max. 20,000 RPMRouting spindle power: 7 kW, S1 (water-cooled)Disc milling cutter diameter: 120 mmSaw blade diameter: 180 mmTool length (from extent of taper): Max. 150 mmCompressed air supply: > 7 barAir consumption per minute: approx. 185 l with sprayingDimensions: 7643 x 2171 x 3000 mm (300" x 86" x 118")Weight: 3800 kg (8360 Lb)Equipped with:Automatic tool changerTool tray positions in the automatic magazine: 12Spindle speed: 24000 RPMTool holder: HSK-F63Water-cooled 7 kW, S1 routing spindleState-of-the-art 5-axis controllerWindows operating system18.5" panel PC, i5 processor, USB ports, and network connectionLight Barrier for operator protection(4) Horizontal Material ClampsEnclosure to protect the operatorPulsed Coolant SystemAutonomous clamp positioningAutomatic clamp recognitionSoftware: eluCamRemote online maintenanceA material stop on the leftSwarf trays for swarf removalMinimum-volume lubrication systemHand-held operator terminalDepth gaugeFeatures: Pneumatic retractable material stopElectrical panel Tool height gaugeUninterruptible power supply (UPS)ToolsTool holdersLength measurement on both sidesAdditional stop for overlength machining (left)Material reference stop (right) for positioning workpieces with overlength machiningGreen Line cooling unit for the control cabinet with reduced energy consumptionBarcode scannerProtective enclosure can optionally completely enclose the machine on all sidesFour clamps as standard. Can be equipped with up to eight clampsNOTE: This machine is in excellent condition!.... and ready for immediate shipment. Includes fa
