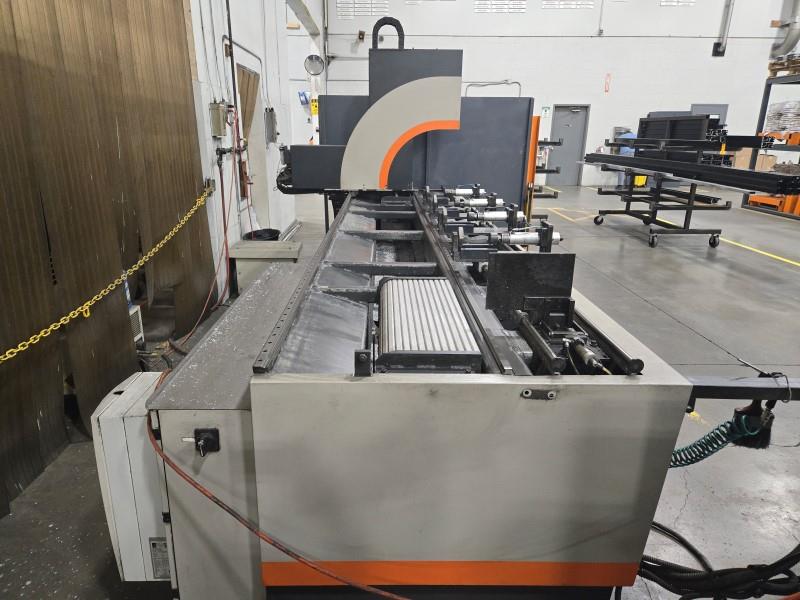

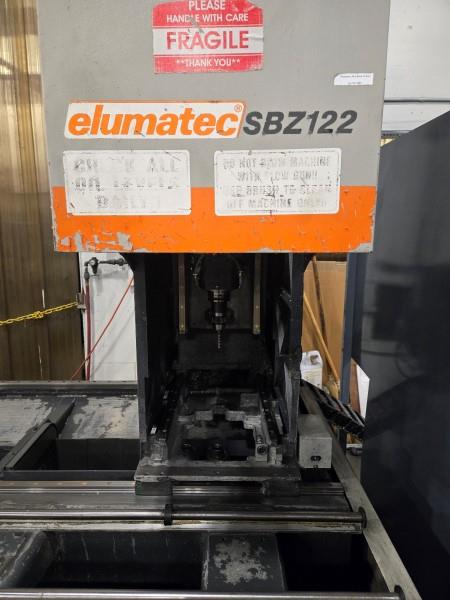

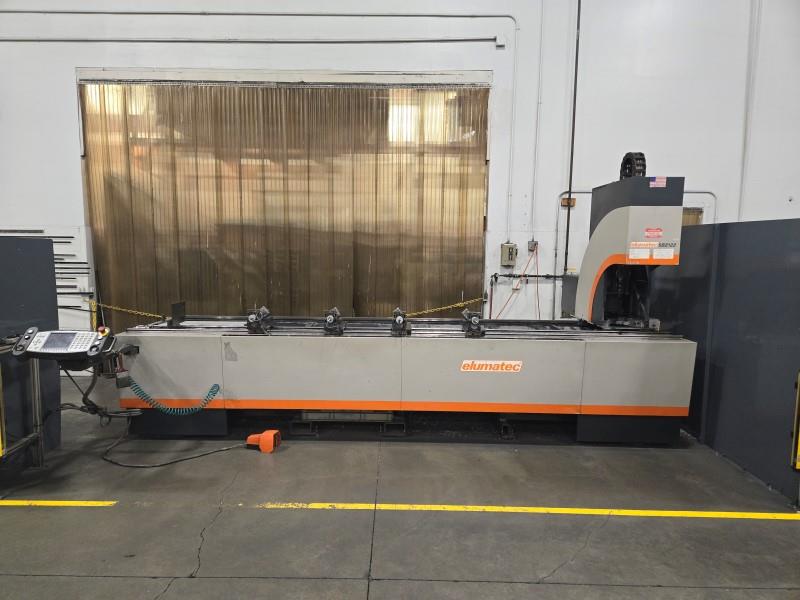

Elumatec #SBZ-122/20, Profile Machining Center, 149" L, 24000 RPM, 6 ATC, 10' Roll Conveyor, 98 FPM, 480 V., 2006

Estimated monthly payment valid upon approved credit.

Request Formal Quote

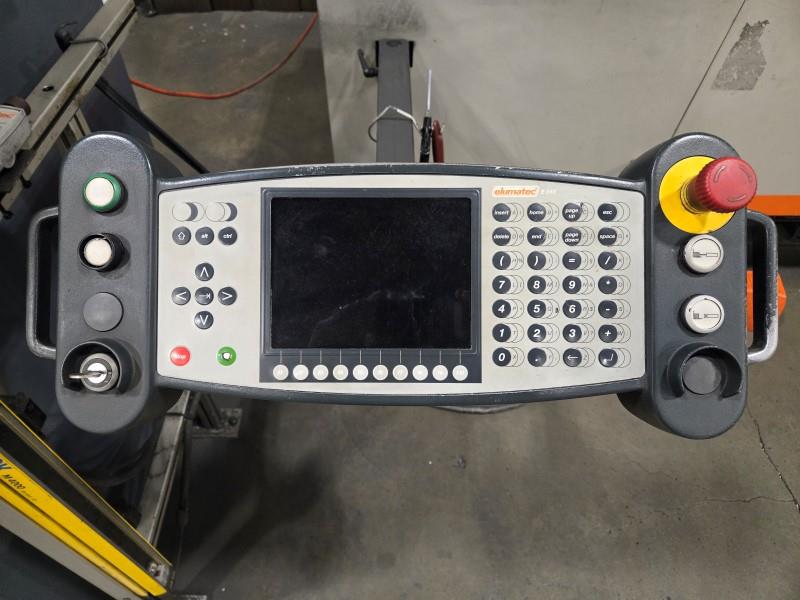

ELUMATEC SBZ 122/30 CNC Profile Machining Center - 3.8 MeterTemplate-free CNC Profile Copy Router designed for machining aluminum and thin-walled steel profiles and extrusions, aluminum, PVC, light alloyed steel. It is particularly suitable for companies who are automating their window and door production processes.The turning device is integrated in the spindle which enables the adjustment of the rotating angle head to 0, 90, 180, and 270, thereby the profile can be processed from the front, rear and both ends with two different tools.Capacity: Bed length: 3800 mm (149")Travelling distance: X-axis 3850 mm V-max. 60 m / Min (2360 IPM)Travelling distance: Y-axis 350 mm V-max. 30 m / Min (1180 IPM)Travelling distance: Z-axis 280 mm V-max. 30 m / Min (1180 IPM)Rapid positioning Y-Z axes: 196 FPM max.Rapid positioning X-axis: 98 FPM max.Equipped with:Automatic tool changerTool holder for automatic tool change: 6Spindle speed: 24000 RPMTool holder: HSK-F63S1 Routing spindle15" Flat screen display, USB ports and network connectionLight Barrier for operator protection(4) Horizontal Material ClampsPulsed Coolant SystemDimensions: 4650 x 2057 x 2540 mm (183" x 81" x 100") Weight: 2040 kG (4500 Lbs)Features: Right angle headSpindle cooling unitPneumatic retractable material stopElectrical panel Machining for (3) sides of profileLinear guides for X, Y, Z travelProfile is held by adjustable pneumatic clampsPulse spray mist coolantTool height gaugeLight curtains NOTE: ExFactory offers “Full Service Logistics"; to your Door. …Packaging, Loading and shipping to your Plant Door.
