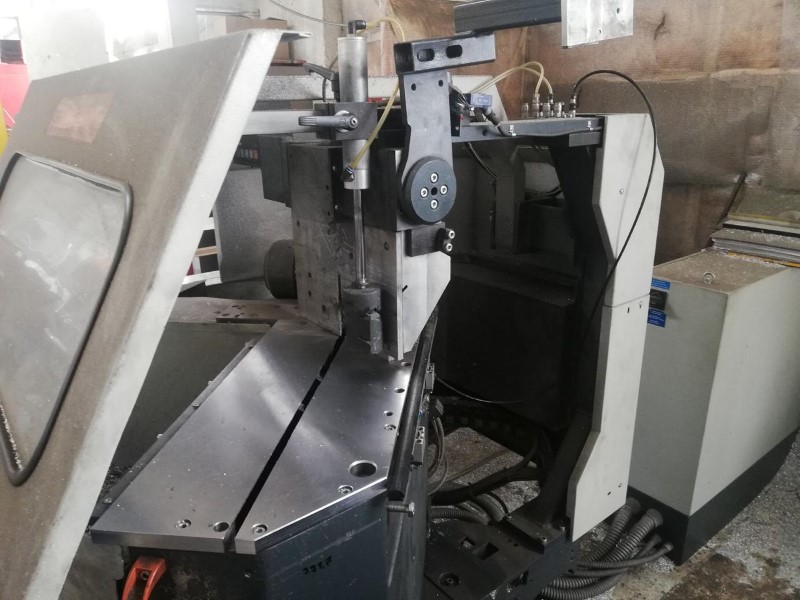

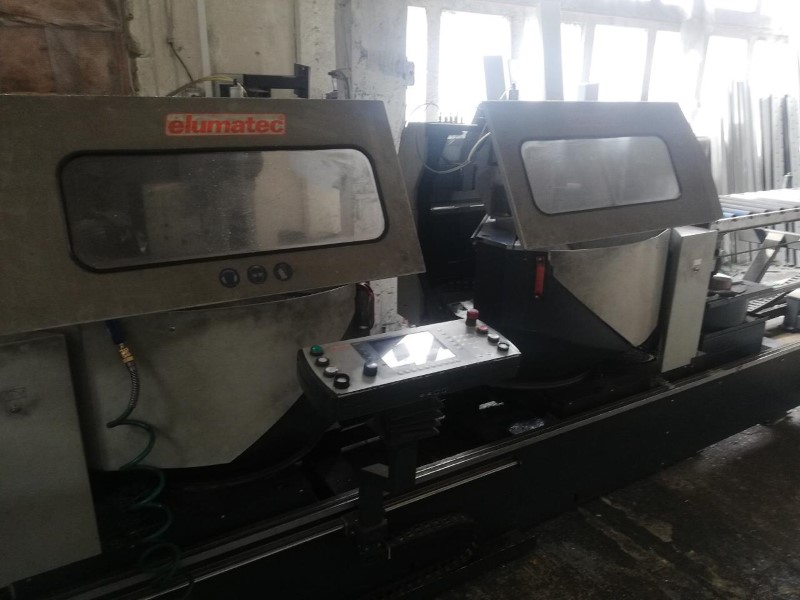

Elumatec #DG-244, Automatic Double End Miter Saw, 6000 mm bed length, 375 mm cutting length, 550 mm blade diameter, 2250 RPM, 2012

Estimated monthly payment valid upon approved credit.

Request Formal Quote

ELUMATEC DG 244 Twin Head Double Miter Saw For Window Profile FabricationElectronic double-head miter saw with Elumatec reliable principle “Cutting from below"; provides unhindered access to support table with a large saw blade diameter and optimal use of the saw blade offer an ideal cutting capacity for all cutting variations.External dimension cuts at all angle positions. This means no length calculations are necessary when cutting profiles of different heights. The universal pivoting and tilting of both saw units allows cutting of high and wide profiles as well as every type of compound miter. Consequently, many profiles can be cut without support blocks. External-dimension cuts possible for all cutting variations. Consequently, no complicated length calculations are necessary.Features: -- Capability for series production as well as for special applications -- Universal pivoting and tilting of both saw units allows cutting of high and wide profiles as well as every type of compound miter -- External-dimension cuts possible for all cutting variants. Consequently, no complicated length calculations are necessary -- Pivoting range with digital angle display -- Safety hoods -- Equipped with digital display as standard -- Pulsed coolant system -- Hydro-pneumatic saw feed -- Advanced E555 (Windows) ComputerSpecifications: -- Cutting bed length: 6000 mm (19.7') -- Min. cutting length at 90: 375 mm (13-3/4") -- Min. cutting length tilted at 45: 375 mm -- Pivoting range inwards: 90 - 45 (up to 22.5 manual with digital display) -- Tilting range inwards pneumatically: 90 - 45 -- Saw blade diameter: 550 mm -- Saw blade speed: 2,250 RPM -- Power output per motor: 4 kW (5.5 HP) -- Compressed air supply: 7 bar (95 PSI)NOTE: Machine is in very good condition and ready for immediate shipment. NOTE: Price includes: “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
