Description

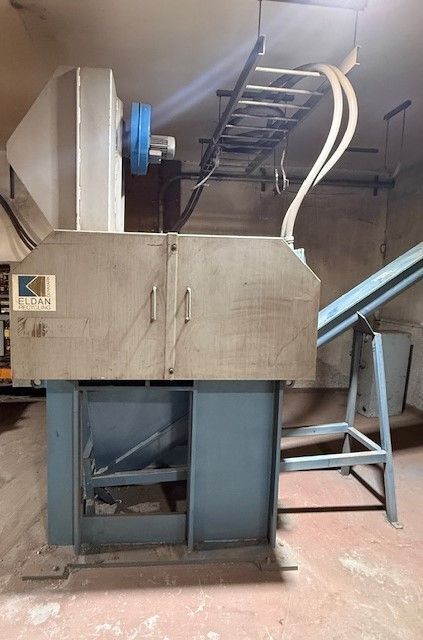

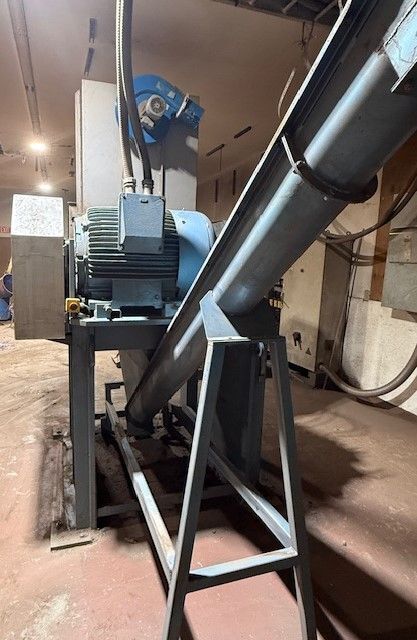

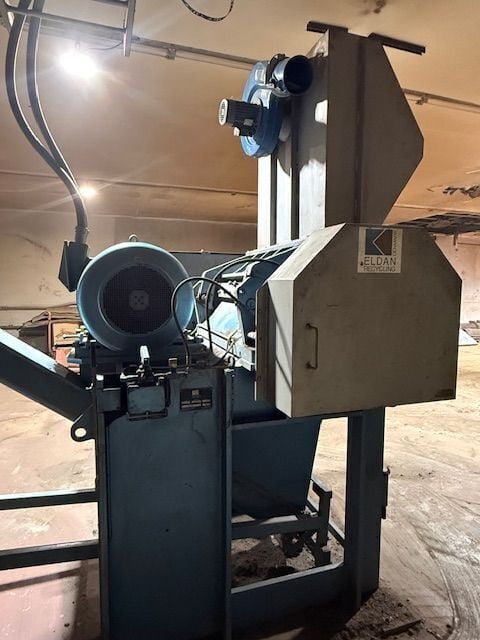

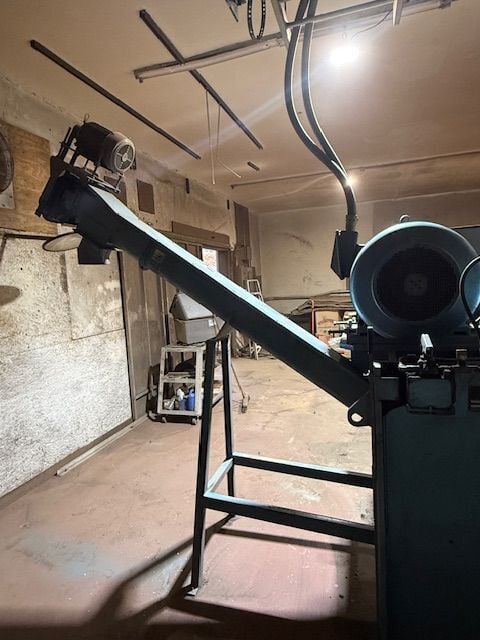

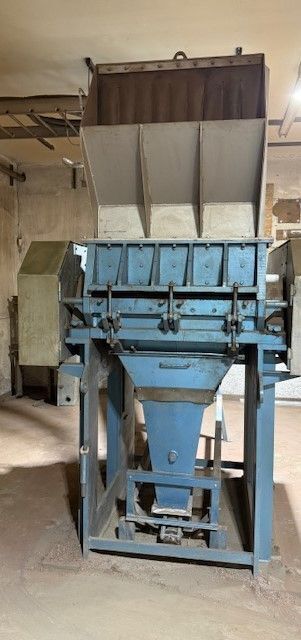

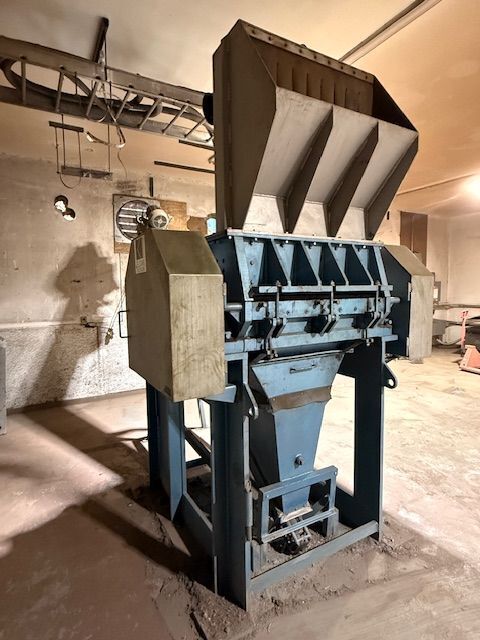

Manufacturer: Eldan Recycling A/S (Denmark)
Type / model: GRA F952
Serial / fabrication no.: 93-10630
Motor power: 75 kW (approx. 100 HP)
Electrical:
Voltage: 3 x 440 V
Frequency: 60 Hz
Phase: 3-Phase
Typical / reference specifications (eldan gra f: series granulator)
(These are standard for the GRA F952 size class and commonly used for quoting unless the OEM spec sheet states otherwise.)
Machine type: Heavy-duty granulator / refiner
Applications:
E-scrap
Aluminum and non: ferrous scrap
Radiators
Small electric motors
Wire/chop prep after pre: shredding
Rotor width: ~950 mm ( 37 in)
Rotor diameter: 950 mm
Cutting System:
Solid steel rotor
Replaceable knives
Screen: controlled output size
Typical Throughput:
1,500 – 3,000 kg/hr (material dependent)
Discharge Size:
Controlled by screen (commonly 10–40 mm)
Construction:
Welded heavy steel housing
Direct: drive or belt-driven (varies by year/build)
Approx. Weight:
7,500 – 9,000 kg (16,500 – 20,000 lb), depending on configuration
Cooling:
Air: cooled motor
Model: GRA F952
Type: Single-shaft high speed fine granulator
Motor speed: 1480 RPM
Rotor speed: 475 RPM
Knife configuration: 12 flying / 4 static
Capacity: Up to 3500 kg/hour
Weight: Approx. 4400 kg
Dimensions: 1940 x 1960 x 2800 mm
Applications: Tires, cables, aluminum scrap, plastics
Features: Adjustable knife clearance, regrindable knives, hydraulically operated inlet hopper, exchangeable wear parts, interchangeable screens for different output sizes
Type / model: GRA F952
Serial / fabrication no.: 93-10630
Motor power: 75 kW (approx. 100 HP)
Electrical:
Voltage: 3 x 440 V
Frequency: 60 Hz
Phase: 3-Phase
Typical / reference specifications (eldan gra f: series granulator)
(These are standard for the GRA F952 size class and commonly used for quoting unless the OEM spec sheet states otherwise.)
Machine type: Heavy-duty granulator / refiner
Applications:
E-scrap
Aluminum and non: ferrous scrap
Radiators
Small electric motors
Wire/chop prep after pre: shredding
Rotor width: ~950 mm ( 37 in)
Rotor diameter: 950 mm
Cutting System:
Solid steel rotor
Replaceable knives
Screen: controlled output size
Typical Throughput:
1,500 – 3,000 kg/hr (material dependent)
Discharge Size:
Controlled by screen (commonly 10–40 mm)
Construction:
Welded heavy steel housing
Direct: drive or belt-driven (varies by year/build)
Approx. Weight:
7,500 – 9,000 kg (16,500 – 20,000 lb), depending on configuration
Cooling:
Air: cooled motor
Model: GRA F952
Type: Single-shaft high speed fine granulator
Motor speed: 1480 RPM
Rotor speed: 475 RPM
Knife configuration: 12 flying / 4 static
Capacity: Up to 3500 kg/hour
Weight: Approx. 4400 kg
Dimensions: 1940 x 1960 x 2800 mm
Applications: Tires, cables, aluminum scrap, plastics
Features: Adjustable knife clearance, regrindable knives, hydraulically operated inlet hopper, exchangeable wear parts, interchangeable screens for different output sizes
