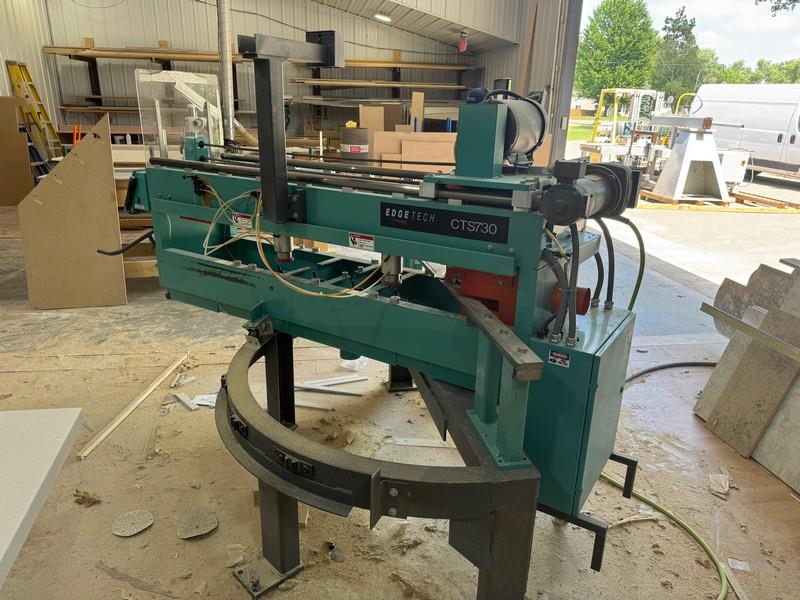

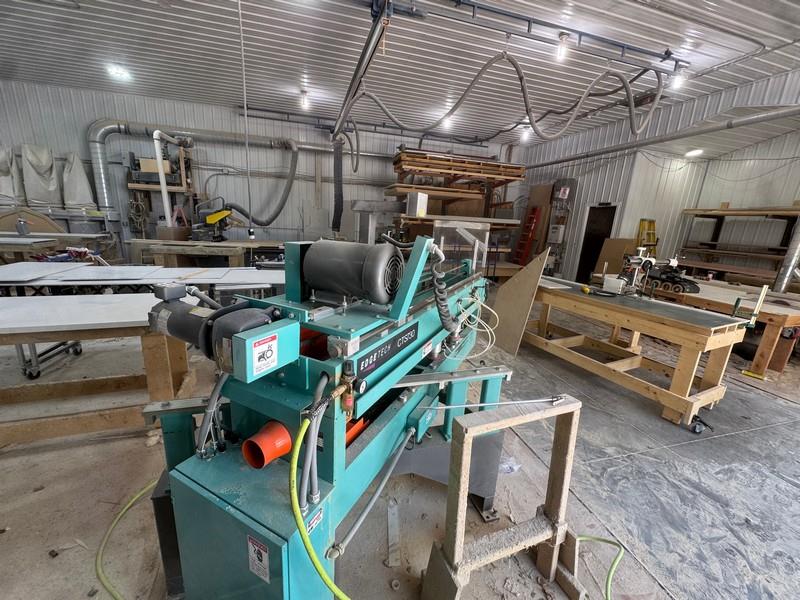

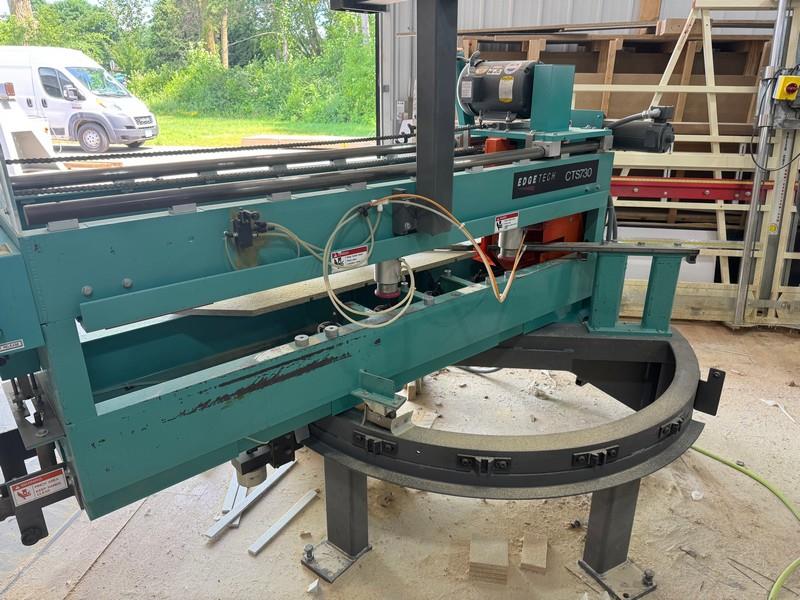

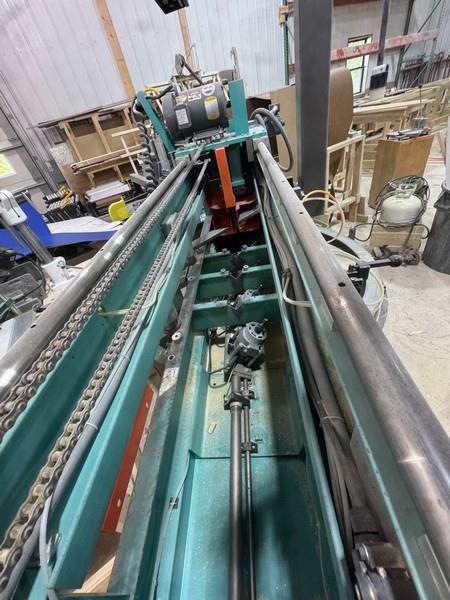

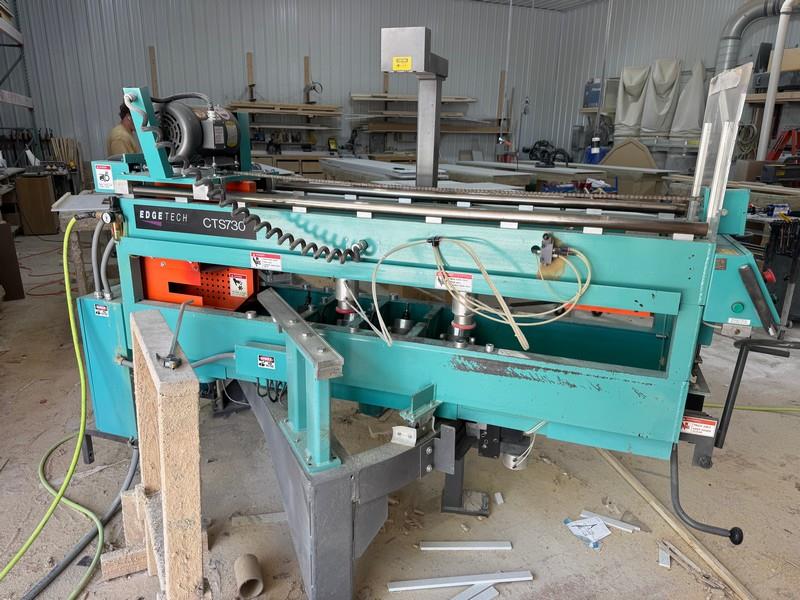

Edgetech #CTS730, countertop saw w/routers, 16" diameter blade, 45" crosscut @ 90°, 5 HP, (4) 1.5 HP router motors, 1998

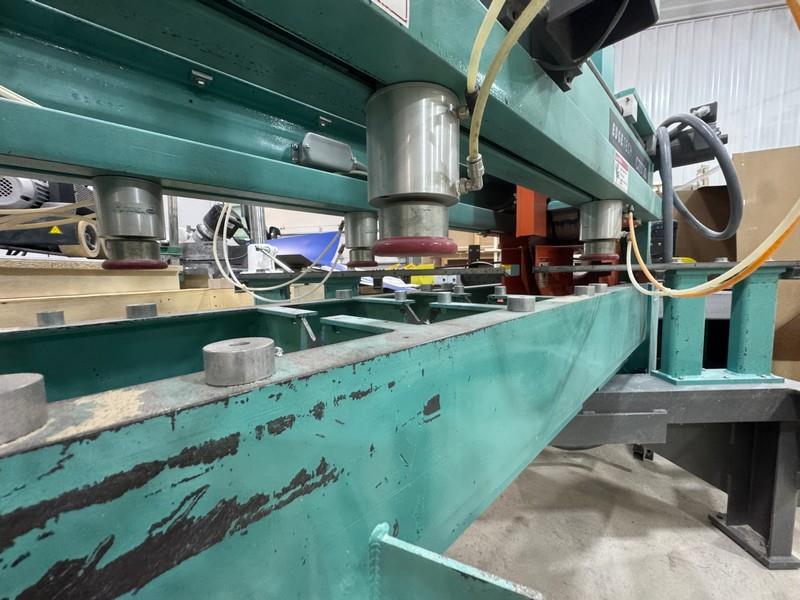

EDGETECH - CTS 730 Countertop SawFor cutting off or mitering post-formed, self-edged, coved, or solid surface countertops and connection bolt mortising all in (1) single operation; variable/fixed return speed; 16" dia. blade.Technical Specifications -- 45" Crosscut cap. at 90. -- 42" at 22-1/2. -- 31" Cut at 45. -- 5-5/8" Depth of cut with build-down (4-7/8" without build-down). -- 3/4" Max. build-down thickness; 5 HP belt drive main motor. -- 4-7/8" Max. backsplash height. -- 0.5 HP Feed drive motor; variable feed speed from 0 - 45 FPM in cutting direction.Machine Features -- Upper machine structure rotates to left and right to (5) fixed stops @ miter positions: 90; 45 R & L; 22-1/2 R & L.LED Indicator for any angle cuts; pneumatically actuated index pin secures position. -- Equipped with: Hardened & ground saw carriage guides with linear bushings; (4) 1.5 HP High-Speed router motors for routing the draw bolt mortises. -- Features: 4-5/8" Distance from fence to 1st router; 8-3/4" center distance between routers; 1/2" dia. x 2-1/4" long bits; full visible router template with the rotating pin to reduce template wear.(4) Independently positioned pneumatic hold-downs for different top sizes; standard fence; OSHA guards; (3) dust collection hookups.Also included: line laser alignment option for accurate top positioning
