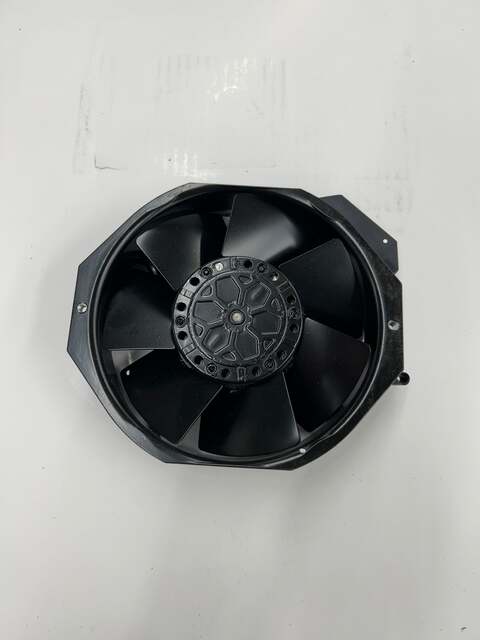

Ebm-papst Allis-Chalmers Axial Cooling Fan W2E142-BB01-01 230V AC

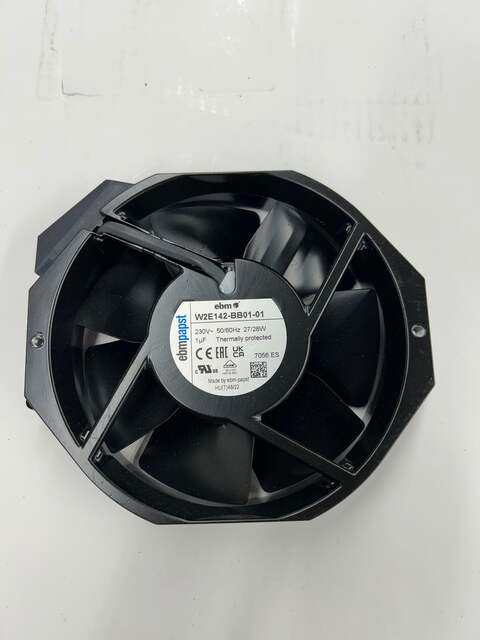

Used in industrial control cabinets, CNC enclosures, and automation equipment, the ebm-papst W2E142-BB01-01 is a 172 mm AC tubeaxial cooling fan rated at 230V AC, 50/60 Hz, with a power draw of 27/28W and a run capacitor of 1 µF. The fan carries an internal ebm-papst catalog reference of 7056 ES and was manufactured by ebm-papst in Hungary, as indicated by the HU(T)48/22 date code visible on the nameplate. Construction features a die-cast aluminum housing and sheet steel impeller blades directly welded onto the rotor. The external rotor motor operates on a single-phase, two-pole design with a 2.8 x 0.5 mm flat pin (Faston) terminal connection. Bearing type is ball bearing. Airflow is rated at approximately 230 CFM (330 m³/h) at free delivery. The unit is thermally protected with automatic reset. Rated noise level is 57 dB(A) per published specifications. The fan measures 172 x 150 x 38 mm overall. Certifications visible on the nameplate include CE, EAC, UKCA, VDE, and cULus (UL/CSA). IP rating is IP22 per manufacturer documentation. Operating temperature range is confirmed at minus 20°C to plus 65°C per published datasheet.

Stock # 0326-1139
