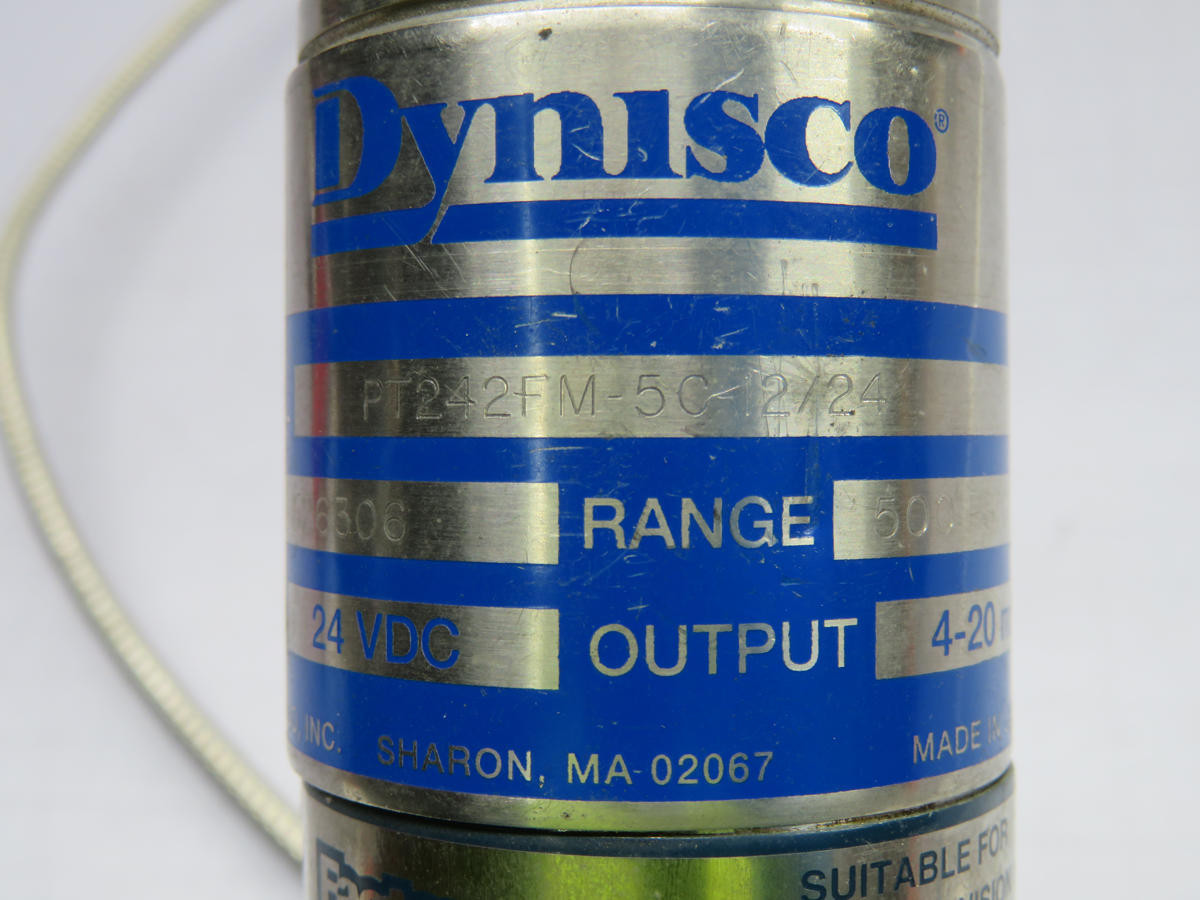

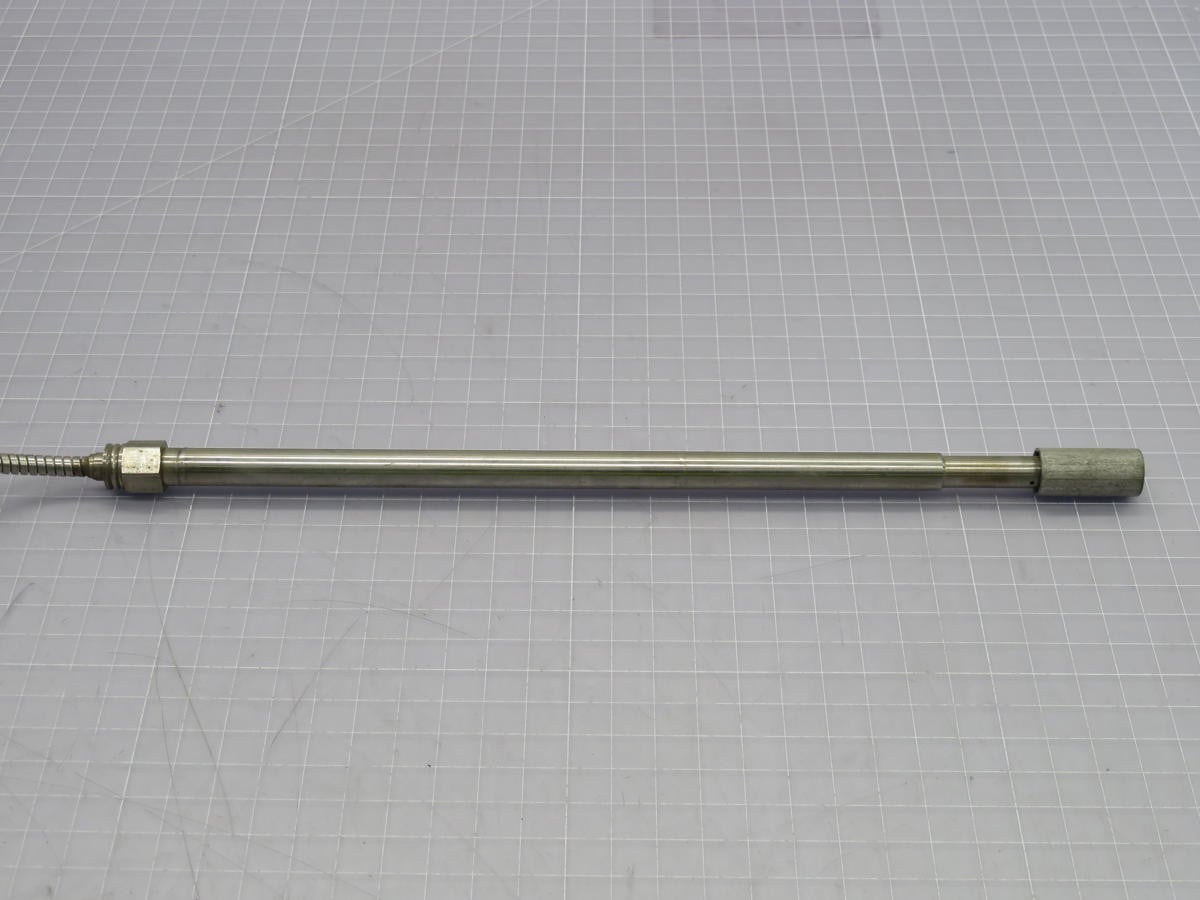

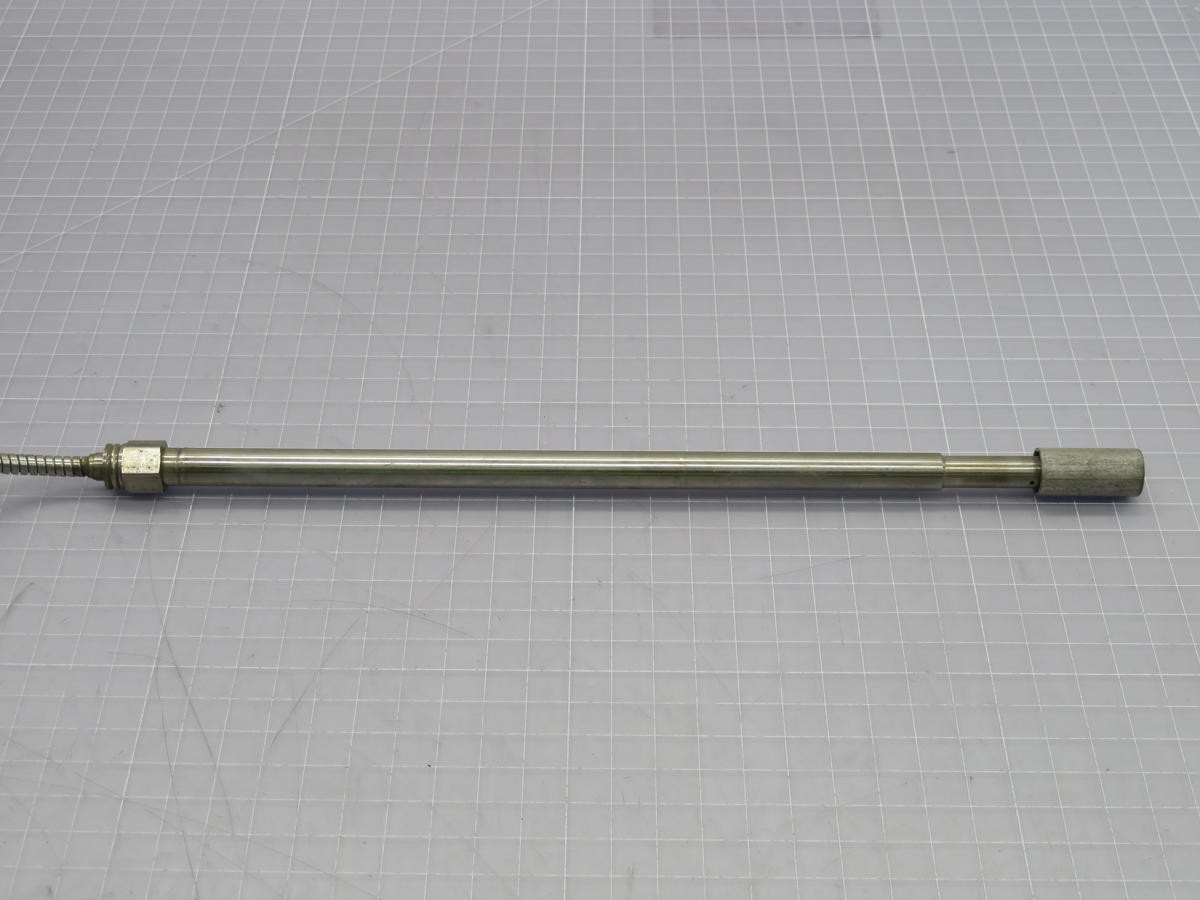

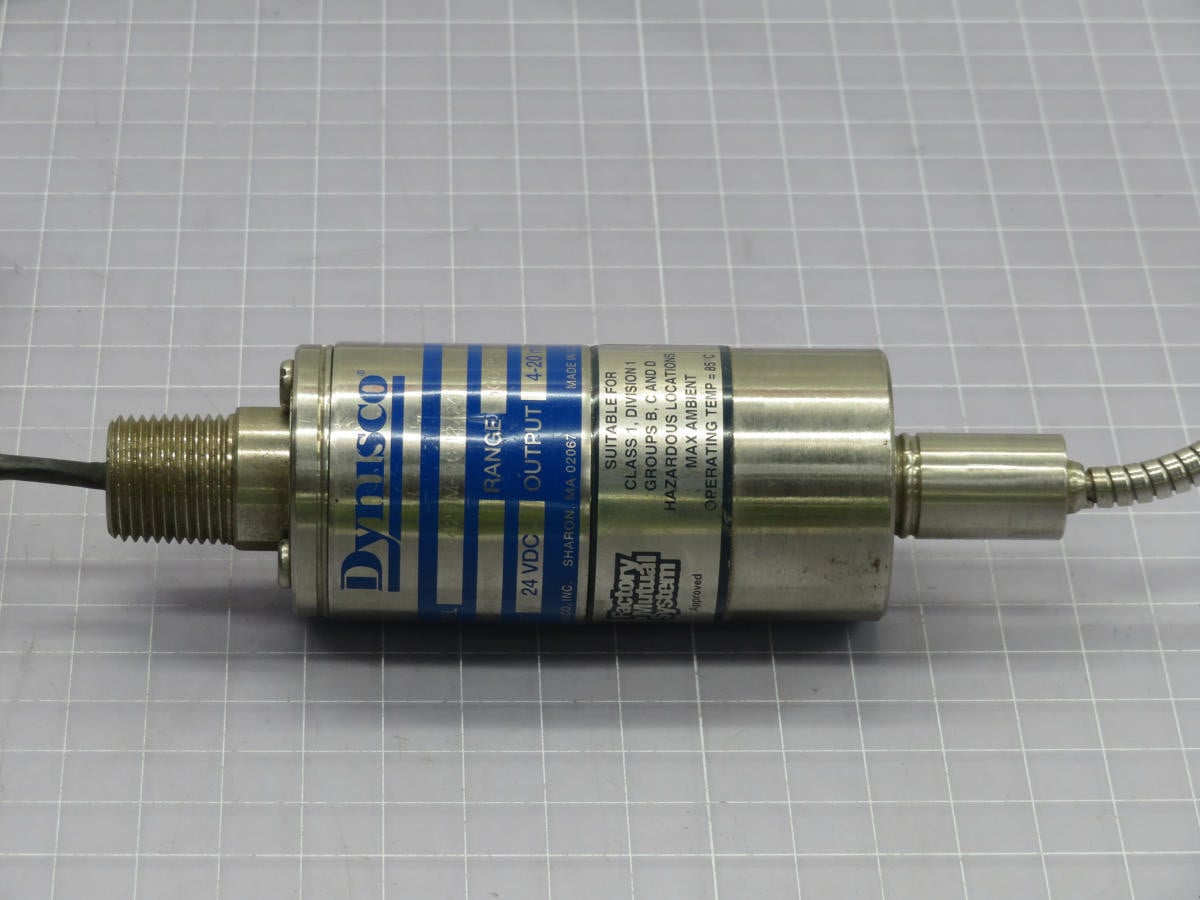

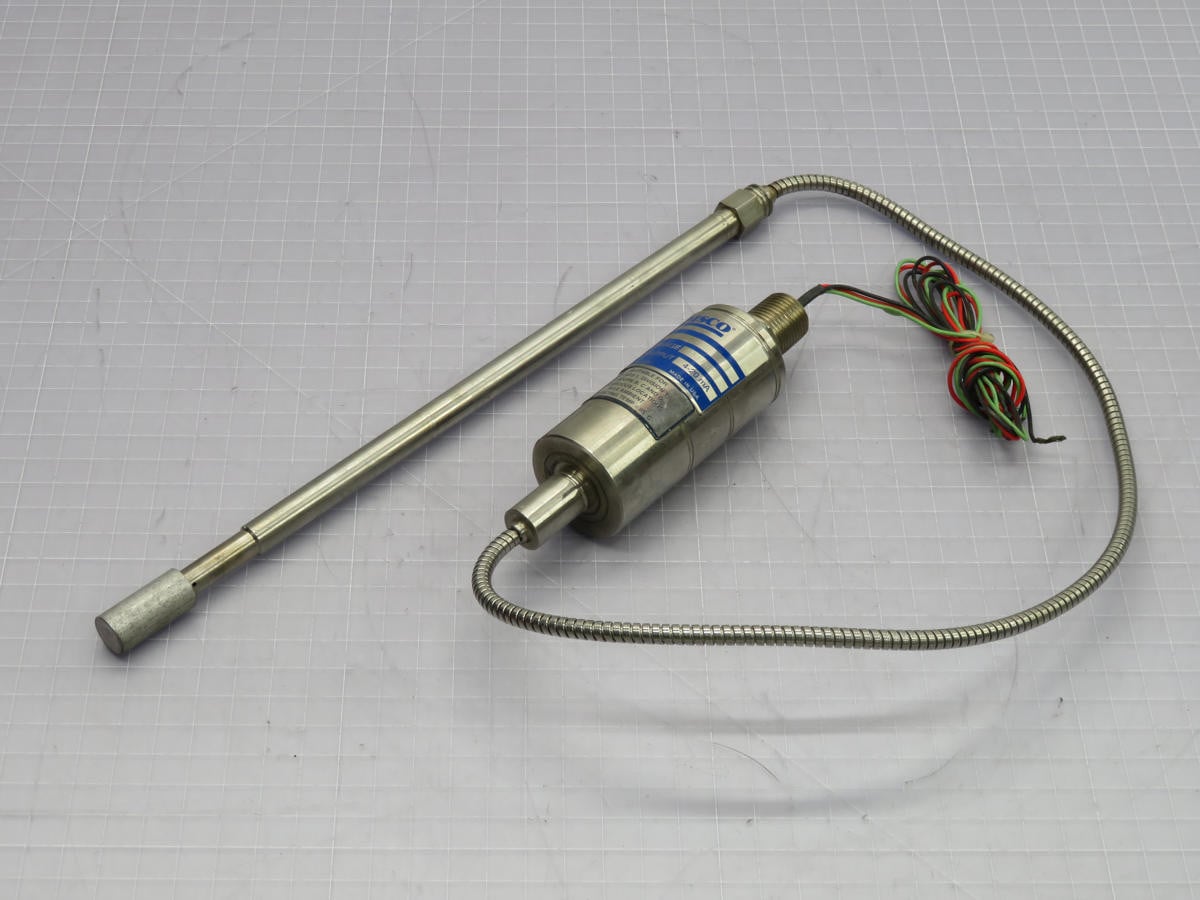

Dynisco #PT242FM-5C-2/24, Pressure Transmitter, 0-500 PSI Range, 4-20 mA Output, 24 VDC Power

$1,148 USD

Request Formal Quote

THE DYNISCO PT242FM-5C-2/24 IS A PRESSURE TRANSMITTER DESIGNED FOR INDUSTRIAL APPLICATIONS. IT FEATURES A MEASUREMENT RANGE OF 0 TO 500 PSI AND PROVIDES A 4-20 MA OUTPUT SIGNAL. THE DEVICE OPERATES ON A 24 VDC POWER SUPPLY. ITS MAXIMUM SPECIFIED OPERATING TEMPERATURE IS 85 °C. THE "FM" DESIGNATION INDICATES A FLUSH DIAPHRAGM DESIGN, COMMONLY UTILIZING A 1/2-20 UNF PROCESS CONNECTION. TYPICAL ACCURACY FOR THIS SERIES IS ±0.5% OF FULL SCALE OUTPUT. WETTED PARTS ARE GENERALLY CONSTRUCTED FROM STAINLESS STEEL ALLOYS, SUCH AS 15-5 PH SST FOR THE DIAPHRAGM AND 17-4 PH SST FOR THE BODY.
