Dynamic Displays, Inc. QES1512-081-Rev-S-C2 HMI BRAND NEW

The Dynamic Displays QES1512-081 is a 12.1 inch industrial grade LCD replacement monitor designed as a drop in upgrade for legacy 12 inch CRT displays used in industrial control and CNC machine tool applications. Model QES1512-081 is identified by Dynamic Displays as a direct replacement for the Motorola DS3000-140A and DS3000-340A 12 inch CRT monitors with TTL input, commonly found in legacy Motorola DS3000 series automation systems. The unit ships with a rugged steel open frame chassis intended to mount into the original CRT bracket pattern.

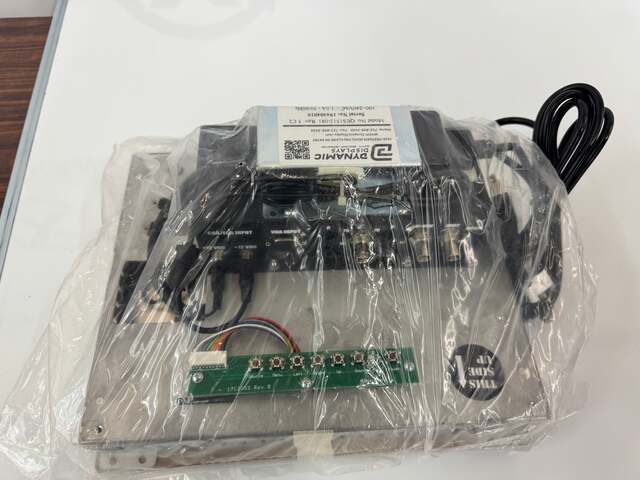

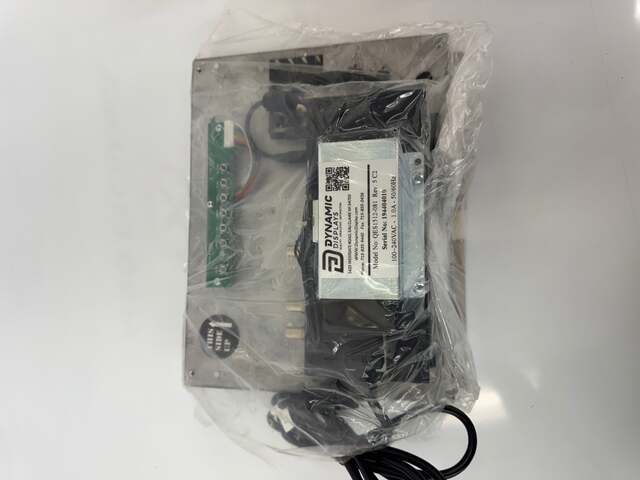

Nameplate data on this unit confirms Model No QES1512-081, Revision 5 C2, Serial Number 194404010. Input power is rated at 100 to 240 VAC, 1.0 A, 50/60 Hz, allowing operation on standard single phase facility power worldwide. The assembly includes the LCD panel module, rear electronics housing with QR coded Dynamic Displays asset label, an integrated control PCB marked 17C20SD Rev. B with tactile buttons for Source, Menu, Left, Right, Up, Down, and Power adjustments, and the original wiring harness. Rear input connections visible include CGA / EGA input, VGA input, plus 5 VDC and plus 12 VDC connectors, and BNC video inputs.

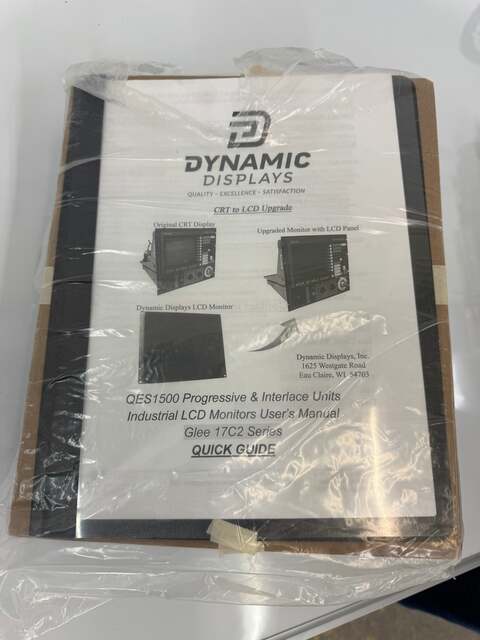

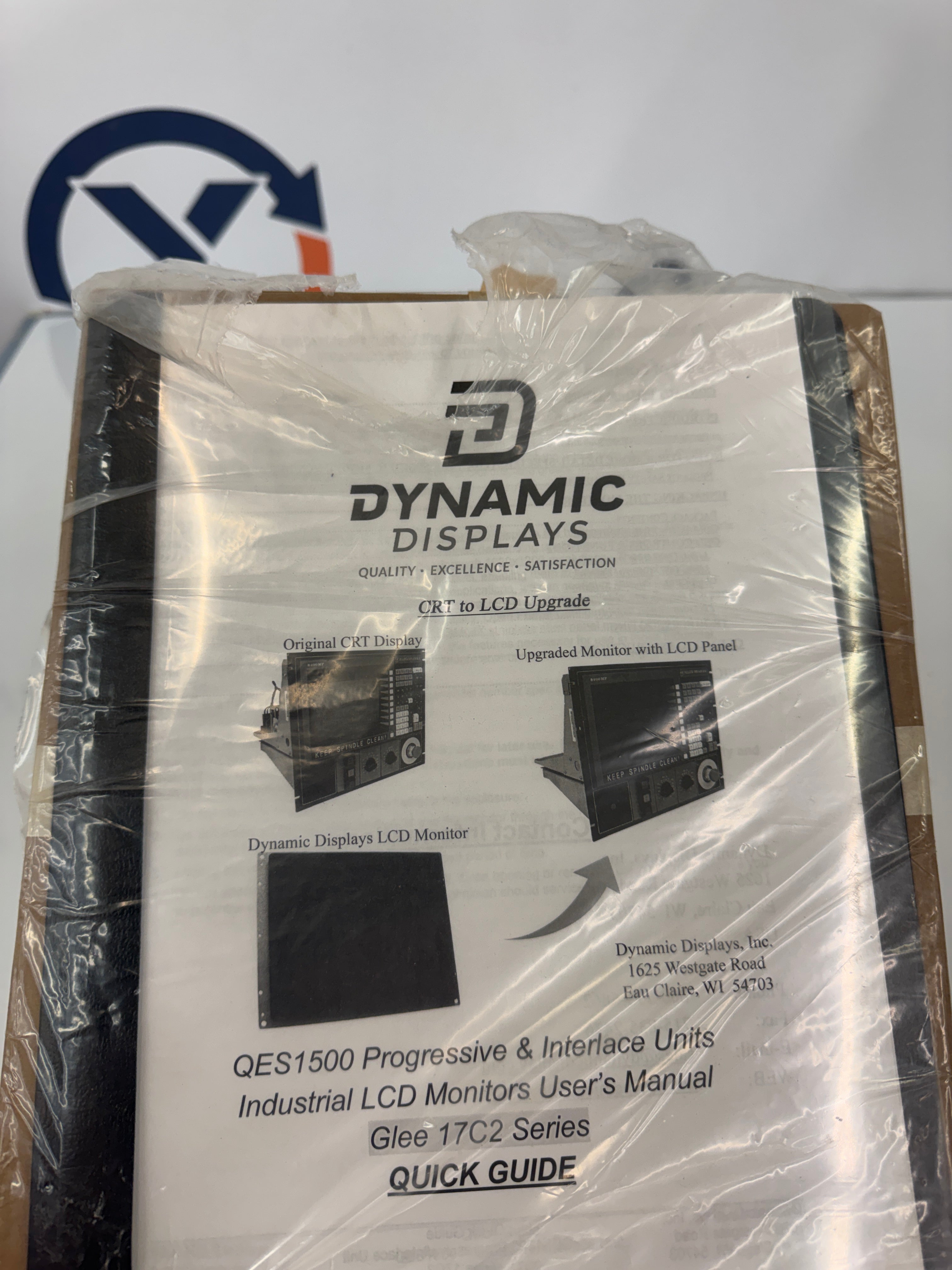

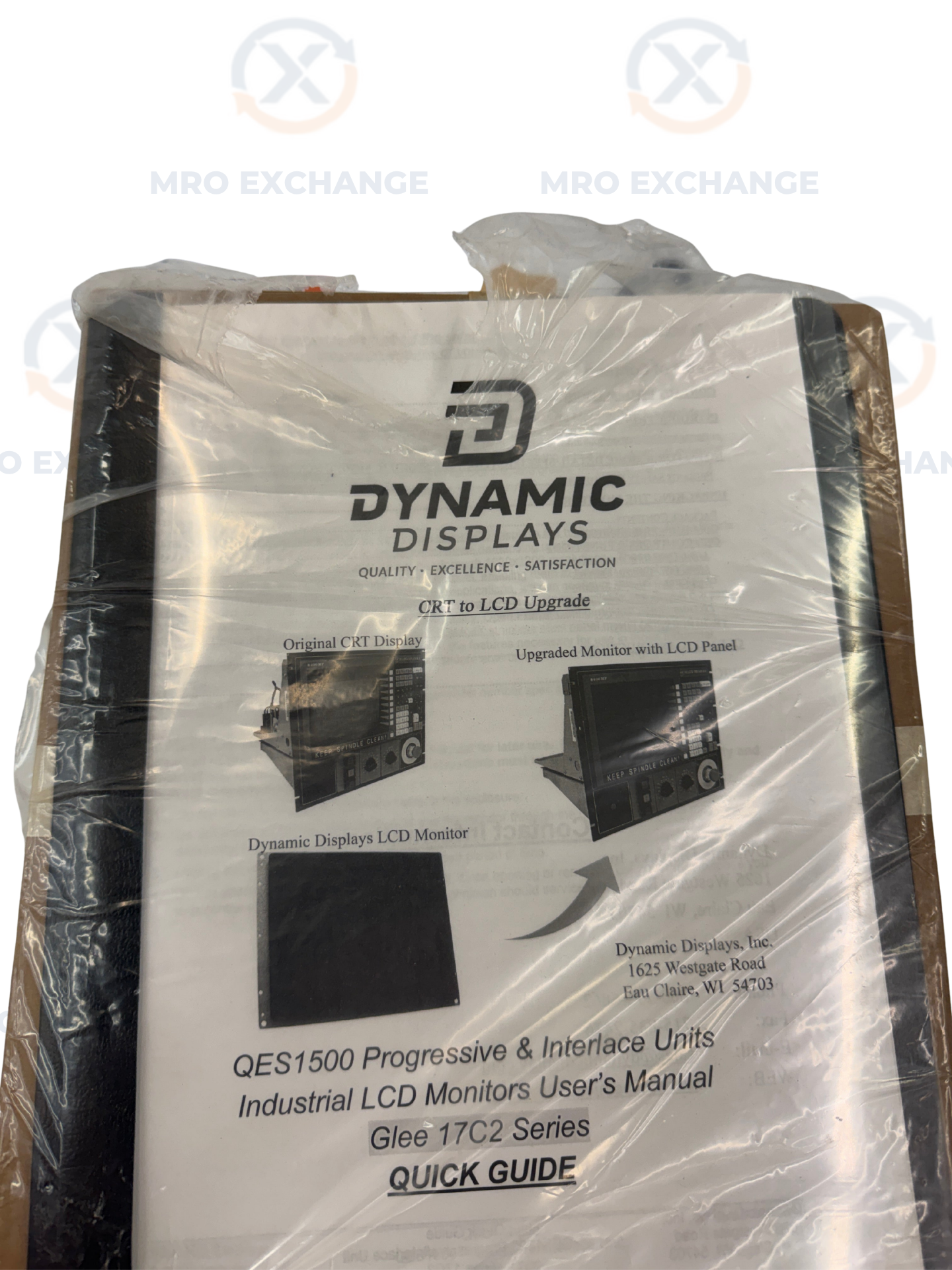

The included documentation packet covers the QES1500 Progressive and Interlace Series Industrial LCD Monitors User Manual, Glee 17C2 Series Quick Guide, manufactured by Dynamic Displays, Inc., 1625 Westgate Road, Eau Claire, WI 54703. Suitable as a spare or replacement display for Motorola DS3000 series controls and other legacy slow scan video applications supported by the QES1500 platform.

Stock # 0226-069
