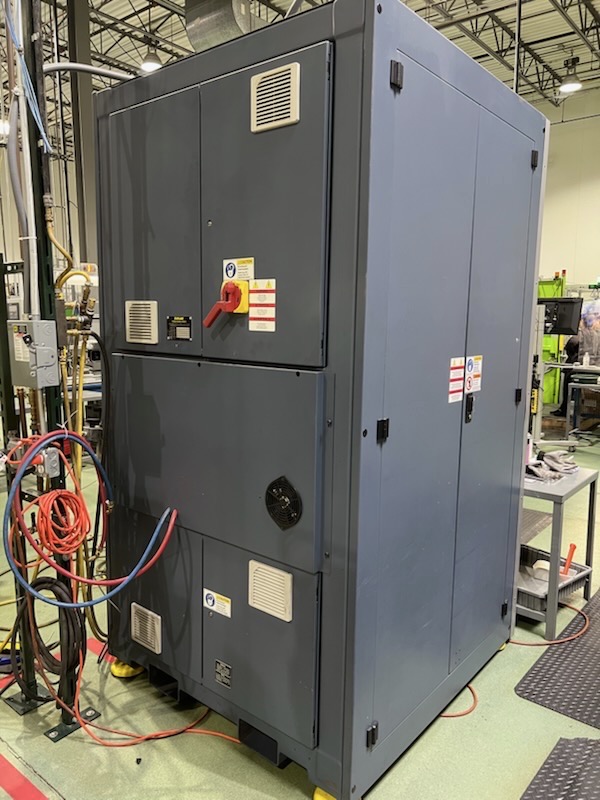

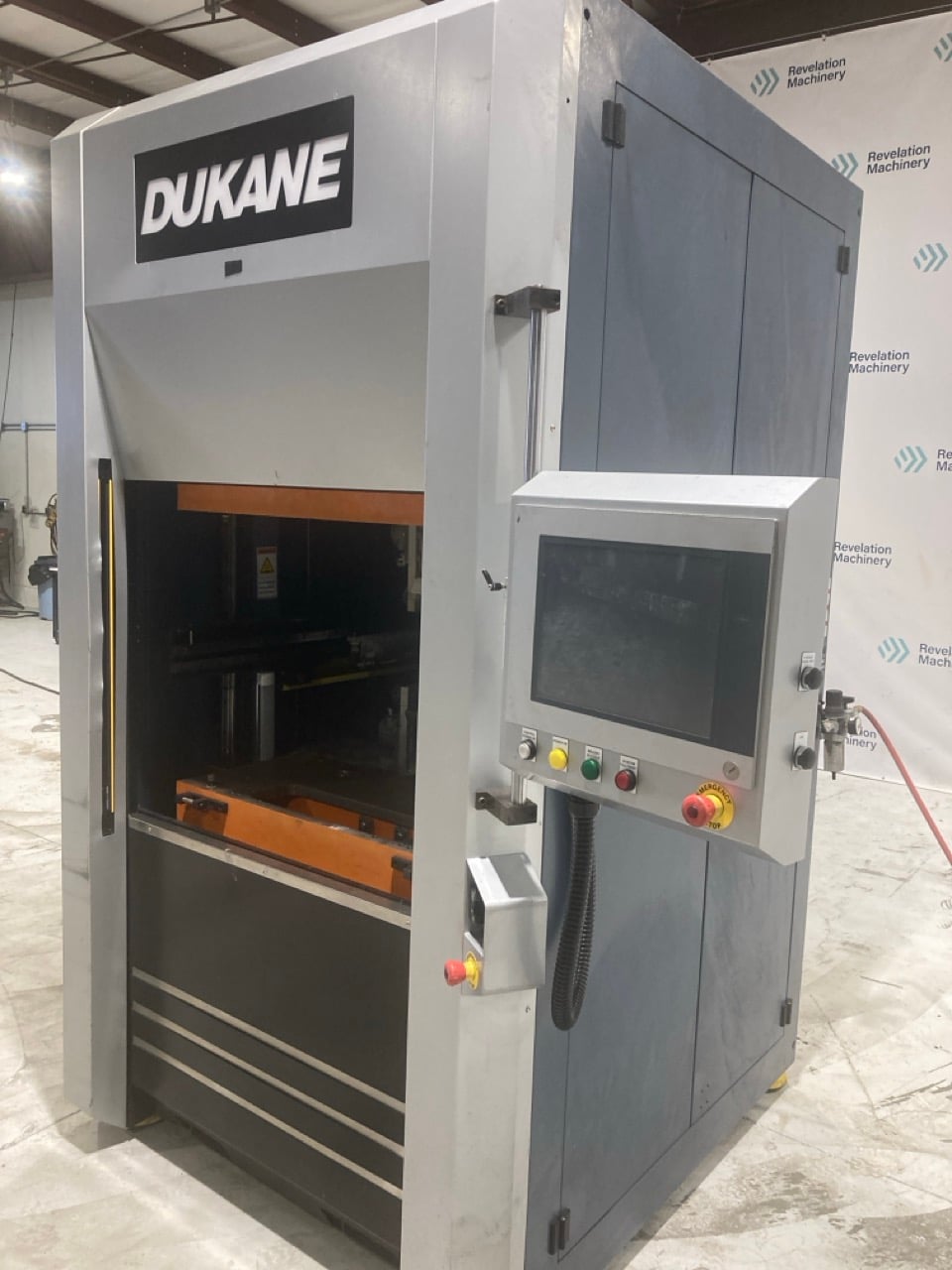

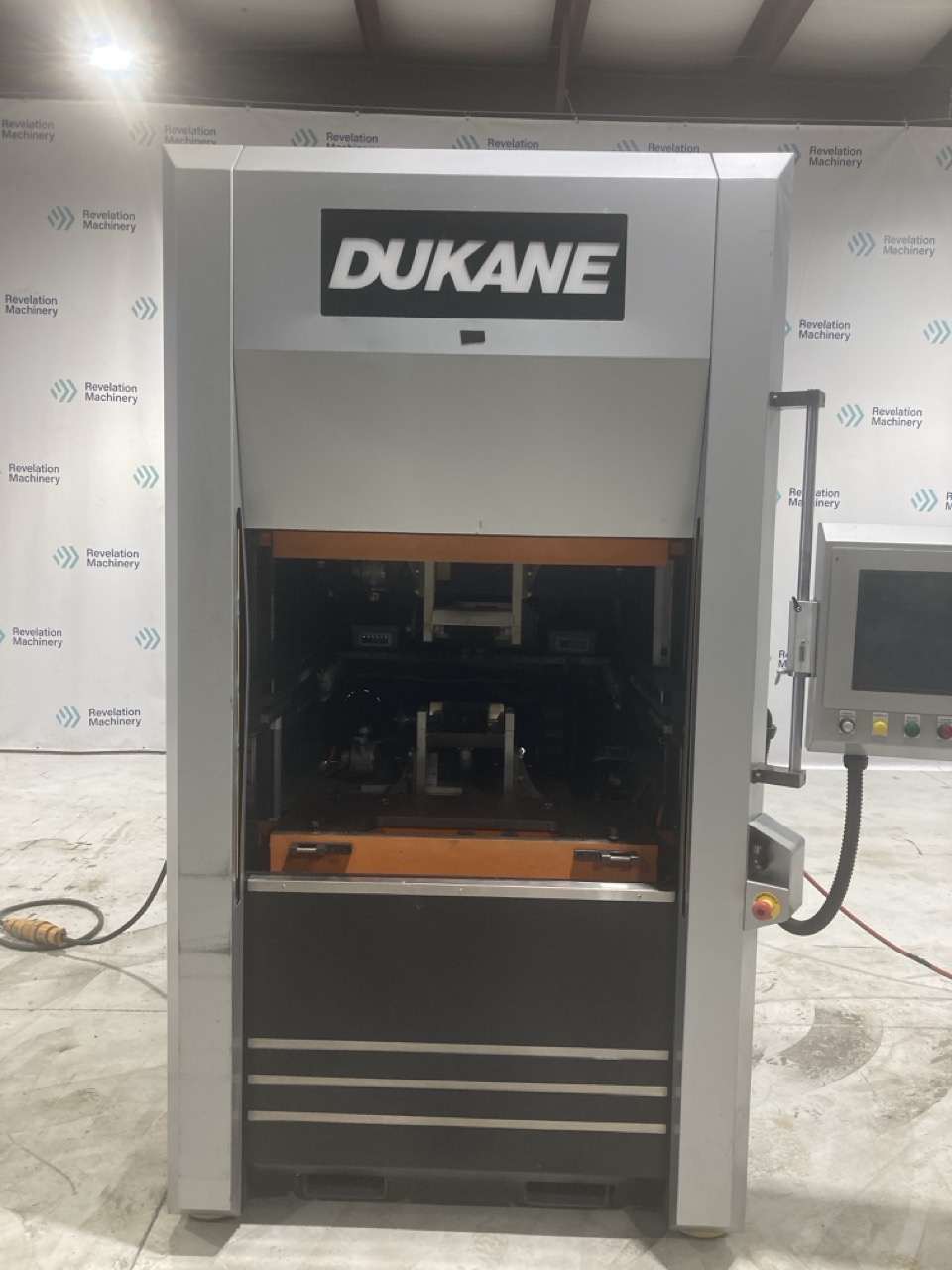

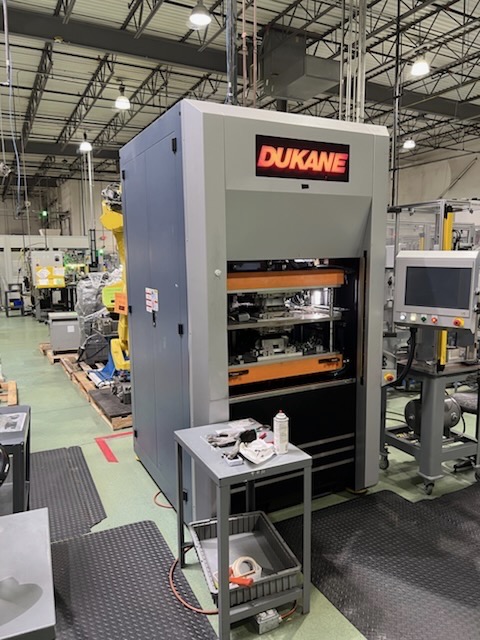

Dukane #TH3-HHPW1432S, Thermal Hybrid Welding System, 2021

2021 Dukane TH3 HHPW1432S thermal hybrid welding system designed for precision plastic assembly, offering fast changeover between hot plate, hot gas, and infrared welding processes for flexible thermoplastic production.

Manufacturer: Dukane
Model: TH3
Configuration / ID: HHPW1432S
Year: 2021
Machine Type: Thermal Hybrid Plastic Welding System
Welding Processes: Hot Plate, Hot Gas, Infrared
Primary Application: Precision welding of thermoplastic components
Platform Advantage: One system configurable for three welding methods with quick changeover between tools and components
Tooling / Setup Features: Auto-Teach and Automatic Tool ID for recipe recall and reduced setup time
Motion / Control: Servo-controlled upper tool, lower tool, and heater platen for precision and repeatability
Heater / Process Control: 12-zone heater phase-angle IR or hot plate control; unique software with phase angle control and PID loop control
Heater Capacity: Up to 24 kW
Available Platen Sizes on TH3 Platform: 12″ x 12″ up to 20″ x 40″, with custom sizes available from the manufacturer
Loading Access: Front, back, and side loading of parts
Infrared Process Notes: Custom contoured quartz short-wave emitters for wider part variability
Hot Plate Process Notes: Supports multi-plane and contoured parts with multiple temperature zones for melt control
Hot Gas Process Notes: Particle-free / oxidation-free welding approach intended for strong weld quality and reduced stress on parts
