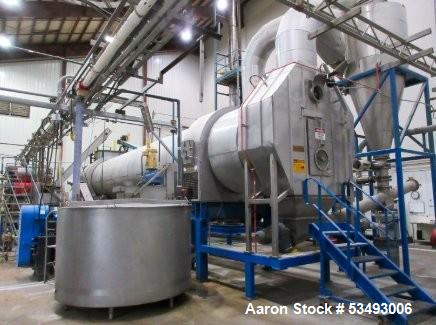

Drying Solutions, Rotary Steam Dryer, 304 Stainless Steel, 7.3 MMBTU/hr, Co-Current Flow, 1500 PPH capacity, 2009'

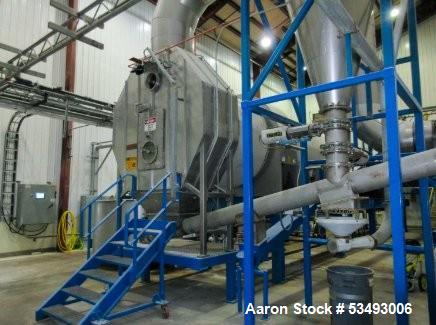

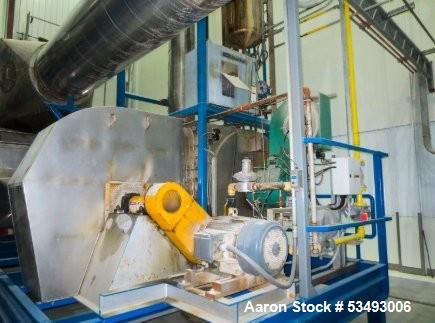

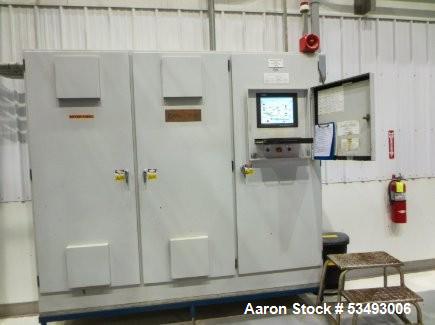

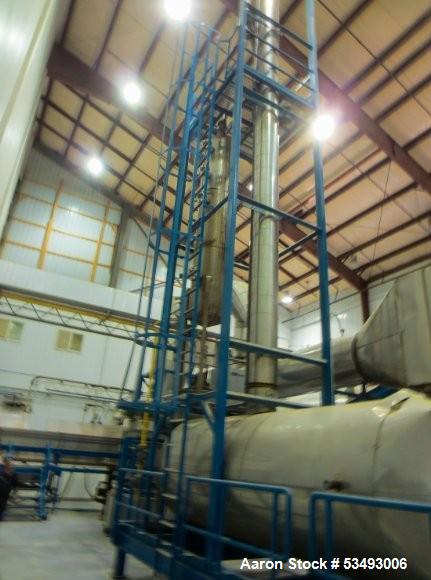

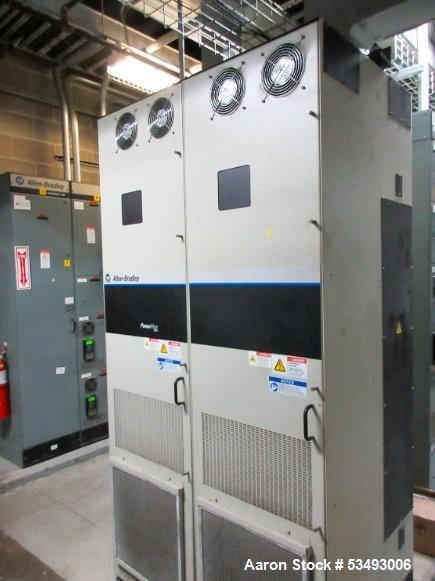

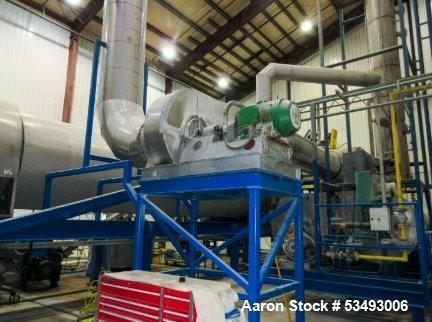

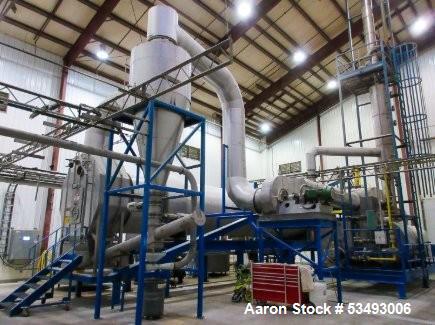

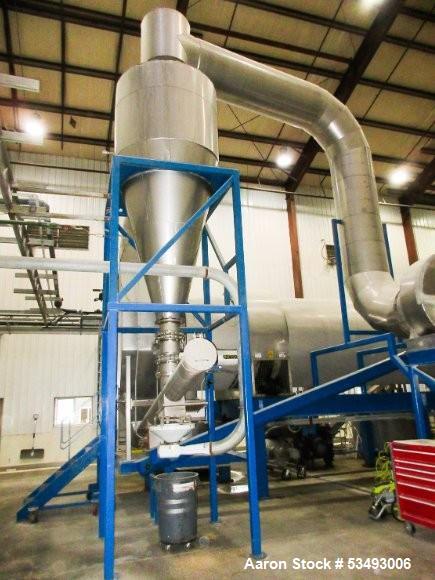

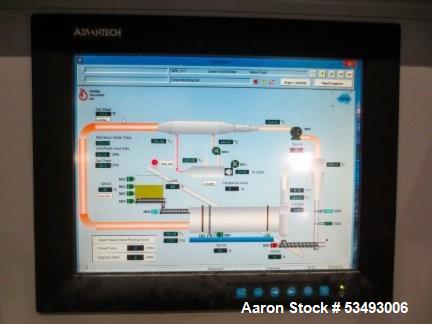

used- drying solutions rotary steam dryer. 304 stainless steel construction; rated at 1500 lbs/hr capacity with co-current single-pass superheated steam; 900 lb/hr. evaporation rate; set for 65% moisture in and 5% moisture out at 1500 lb/hr feed rate; 1800mm diameter x 14750mm length (5.9 d x 48.4 l) drum size; co-current flow; cup flights around the perimeter, hollow middle; natural gas fired burner with controls and fire-eye, blower, belt drive. rated at 7.3 mmbtu/hr; set up for steam injection or water injection; steam heated by hot air interchanger to 680 degrees f (max. inlet temp); 1,973 acfm at 266f to 288f approx. conveying air feed; steam usage 4087 lbs/hr at 266f (approx 25 psig); has cyclone, vertical condenser, drag conveyer, and (3) screw conveyors; 60hp blower, 60hp conveying fan, 40 hp burner, 40hp drum motor; 460v, 200 amp electrical requirements; controls, plc, and touch-screen hmi built into panel; starters and (4) vfd's located in the control cabinet. overall footprint: 19950 mm x 11110 mm x 5000 mm (65.4 x 36.4 x 16.4 h). built 2009. previously used for soybean meal.
