Douglas IPM, end-of-line packagin, palletizer

Equipment Overview:
This integrated high-speed variety pack line was built by industry leaders Douglas Machine Inc. and Integrated Packaging Machinery for Talking Rain’s beverage operations. Centered around the SPS-60 shrink packer and three-head servo unloader, the system includes full upstream and downstream automation—custom conveyors, palletizing, wrapping, and labeling. With remote access, UL panels, and recipe-driven pack changes, it is purpose-built for multi-format beverage distribution.

Key Features and Specifications:

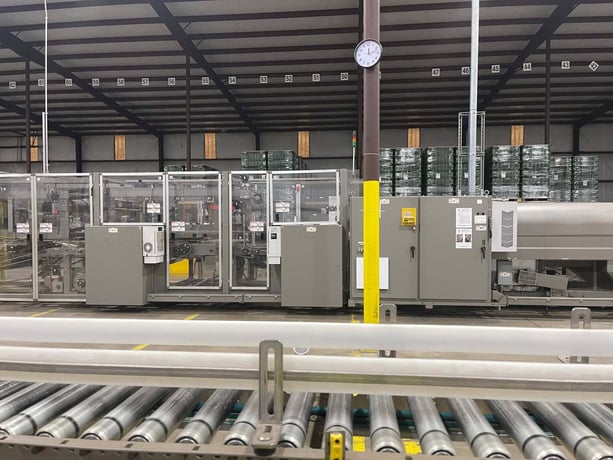

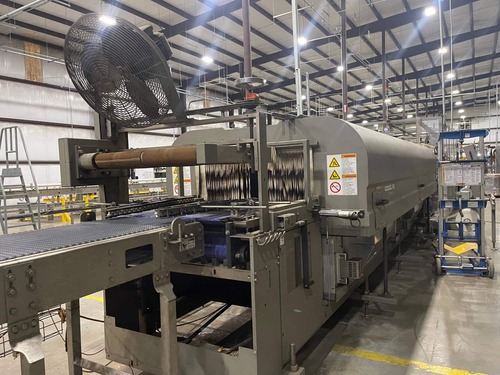

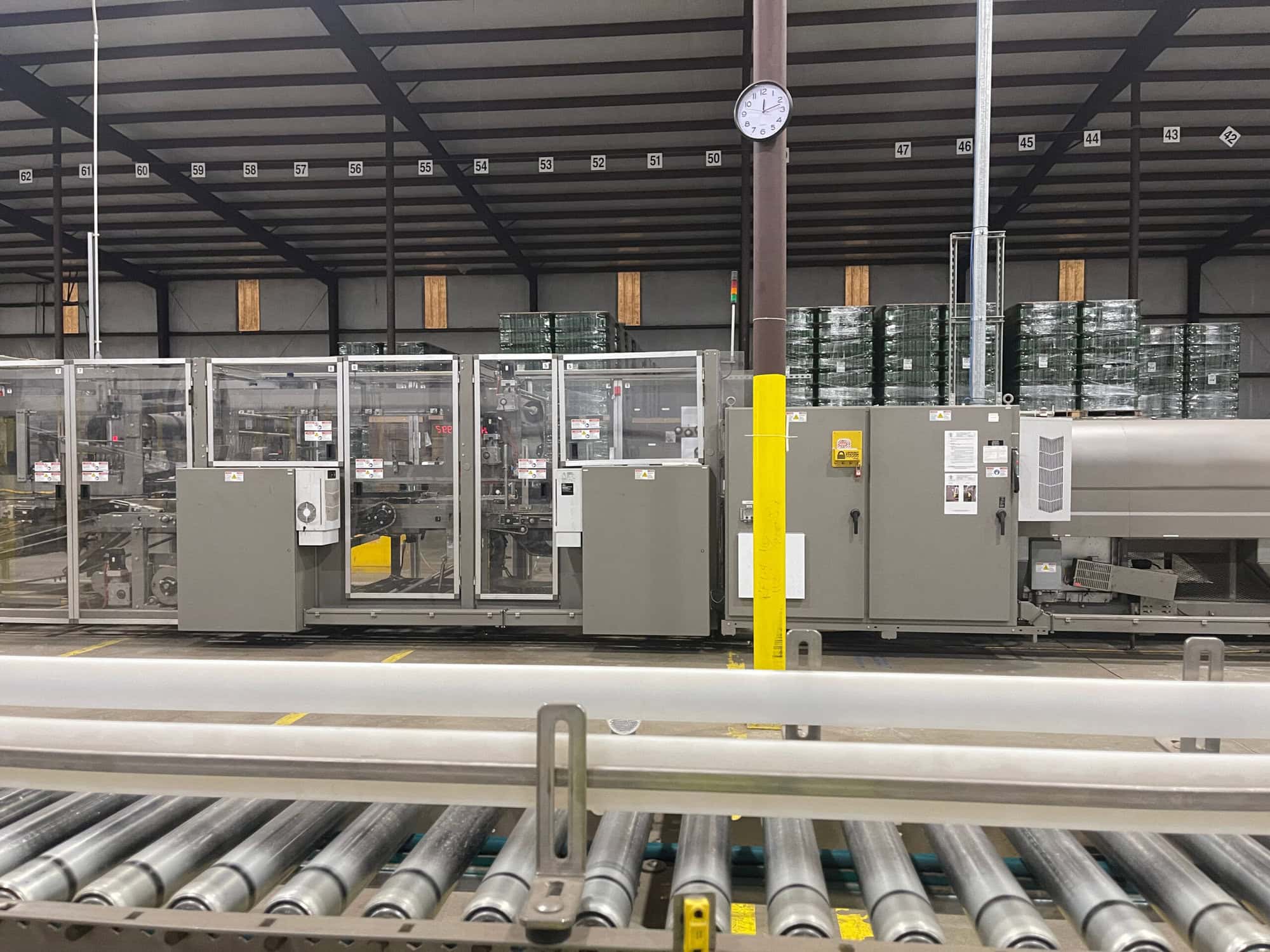

Douglas SPS-60 Shrink Packer
Handles 12, 18, 24 count trays in 2–6 flavor pack formats
Up to 720 product/min surge, 60 case/min sustained
Dual film stand, air knives, auto oilers, long sweep, and registered film
Allen-Bradley PanelView Plus 10″, Compact GuardLogix 5380, Kinetix 5700

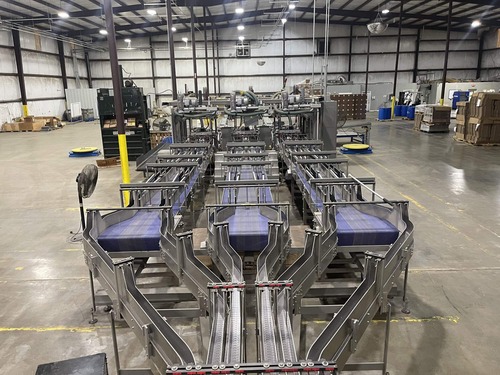

Douglas Tray Unloader System
Three Allen-Bradley servo pick-and-place gantries
Vacuum end effectors + Busch oil-less vacuum system
Six-lane tray infeed; handles 12, 18, 24 counts
31″ infeed height, 43″ discharge

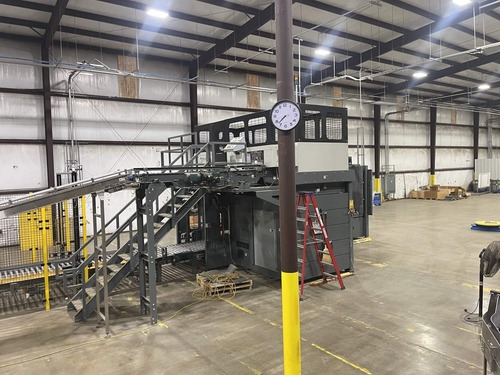

Alvey 891i Palletizer
Up to 60 loads/hour
High-level infeed, dual pusher bar system
Tier sheet and slip sheet dispenser
Allen-Bradley CompactLogix + 1769-L33ERMS Safety PLC
Ethernet/IP, HMI pattern utility, integrated diagnostics

Highlight Freedom 6500 Stretch Wrapper
Ring Gear Arm, 20 RPM, 84″ height, 86″ diagonal
Dual Power Hydro-Stretch
Allen-Bradley PowerFlex 525, CompactLogix PLC
HiLIFE film monitoring

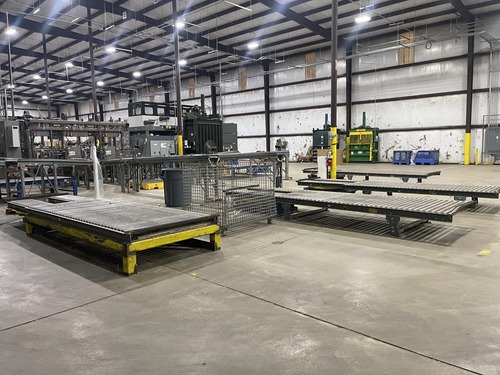

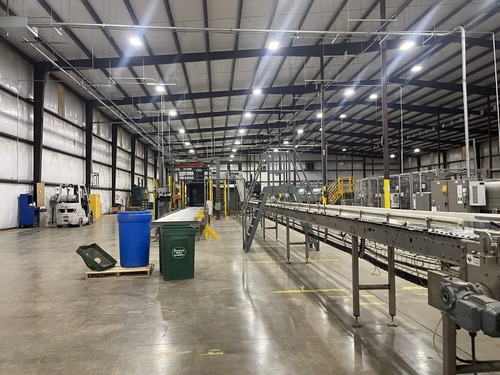

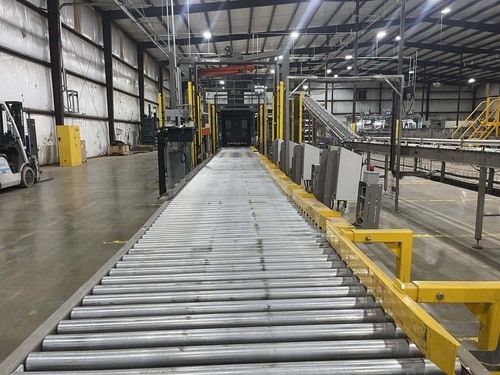

IPM Conveyors
Stainless steel mat-top, CDLR, MSC, and right-angle transfer sections
Bearings: Dodge, SEW, Frantz
Controls: Allen-Bradley with VFDs, PE/Prox sensors

Labeling
Videojet 8510 CIJ (1″ print)
Panther P9e Electric Swing Arm Labeler

Control Panels
Allen-Bradley CompactLogix PLCs
HMI Zone-based display (Zone 1–8) for fermentation or line control
Disconnects, VFDs, and ethernet-ready enclosures
UL/CSA/CE compliant panels by Hammond

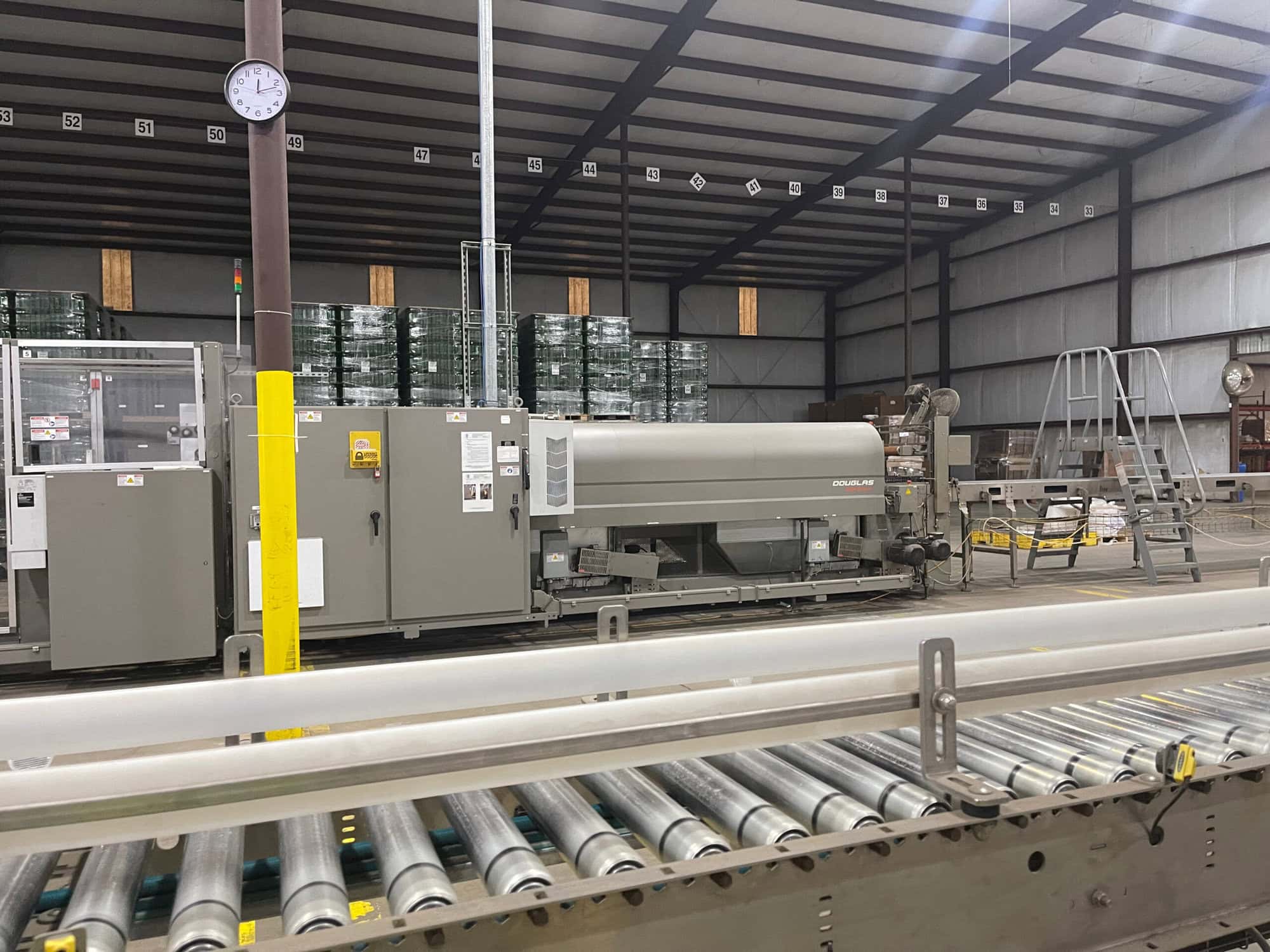

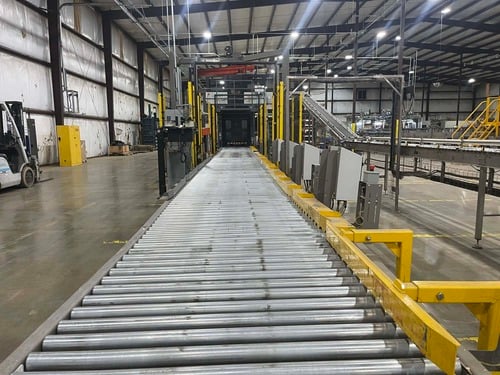

Photos are that of an identical system. Actual system currently prepped for shipping.
