For Sale by HTR Global Inc.
Description

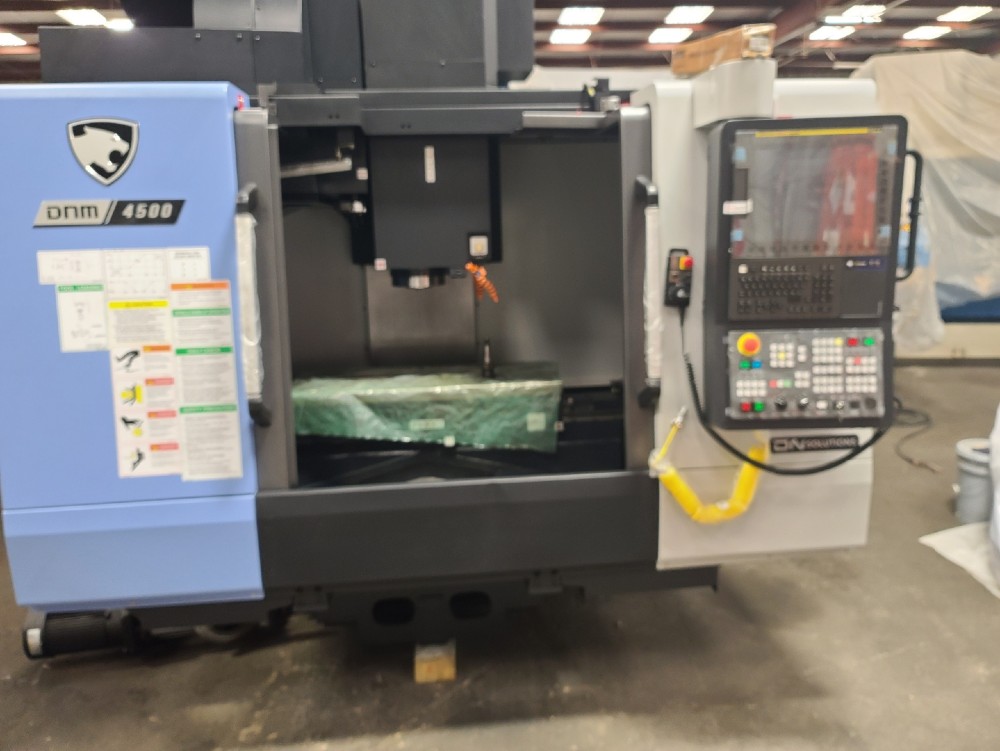

Model DNM 4500
Serial Number MV0090-003665
Year 09/2022

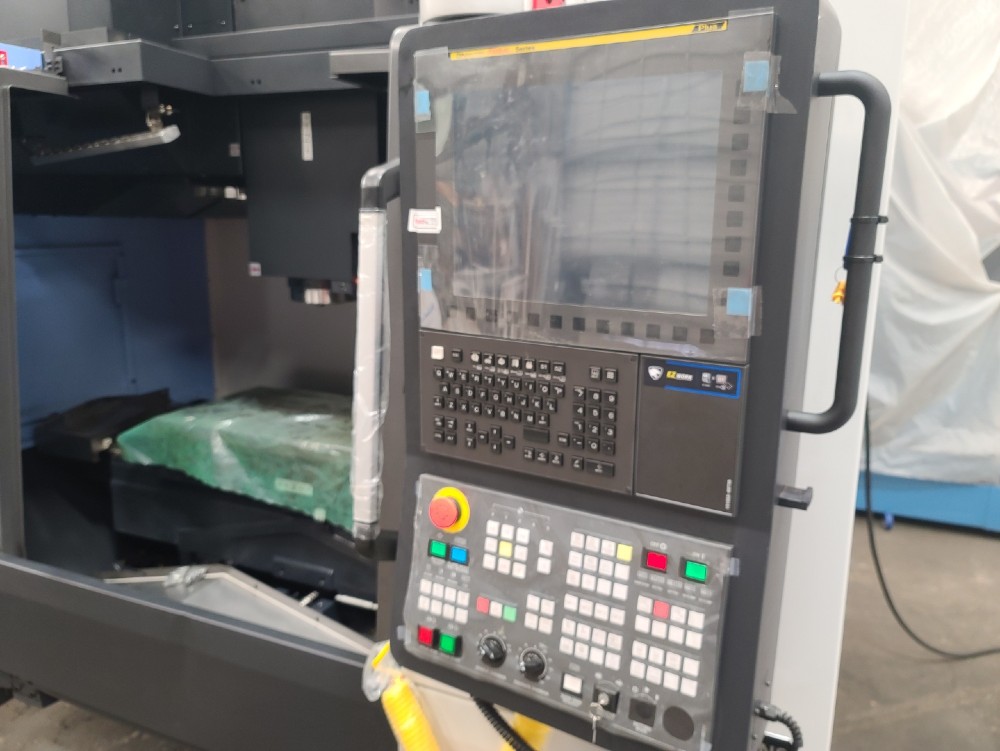

CNC control Fanuc Oi-Plus
Travels; X-Y-Z 31.5”x17.7”x20”
Max table load 1320 lbs.
Spindle taper CAT 40
Max spindle speed 8,000 rpm.
AC spindle motor 15/20 hp.
Tool stations 30 stations
Table loading area 40” x 18”
Rigid tapping Yes
Thru spindle coolant Yes, 215 psi.
Thru spindle air Yes
Oil jacket spindle chiller Yes
Portable pulse generator Yes
Flood coolant system Yes, for chip disposal
Coolant tank 52 gallons
Voltage 220/3/60 77.5 amps
Weight 11,000 lbs.
Condition: New, never used.
Warranty: Fanuc warranty on the CNC control as long as voltage is in the 205-235 range.
Availability: Stock, Subject to Prior Sale
Note: We are not a DN Solutions (Daewoo) dealer. We purchased this machine from an
insurance company as it had tipped over in it’s container when being unloaded in San
Diego, CA from Korea sustaining sheet metal damage which we have repaired.
