Manufacturer: Dn Solutions
Model: PUMA-DNT-2100M
Year: 2025
Swing: 25.6
Chuck: 8
Bar Capacity: 2.6
Stock # 10224
Click to zoom in
For Sale by Used CNC LLC
Surplus Record Dealer Since 1997
Location: Huntley, IL
Contact Mike Oracko
Phone Number: 224...> Show Phone Number 224-537-0982
Let the seller know you found their listing on Surplus Record!
Description

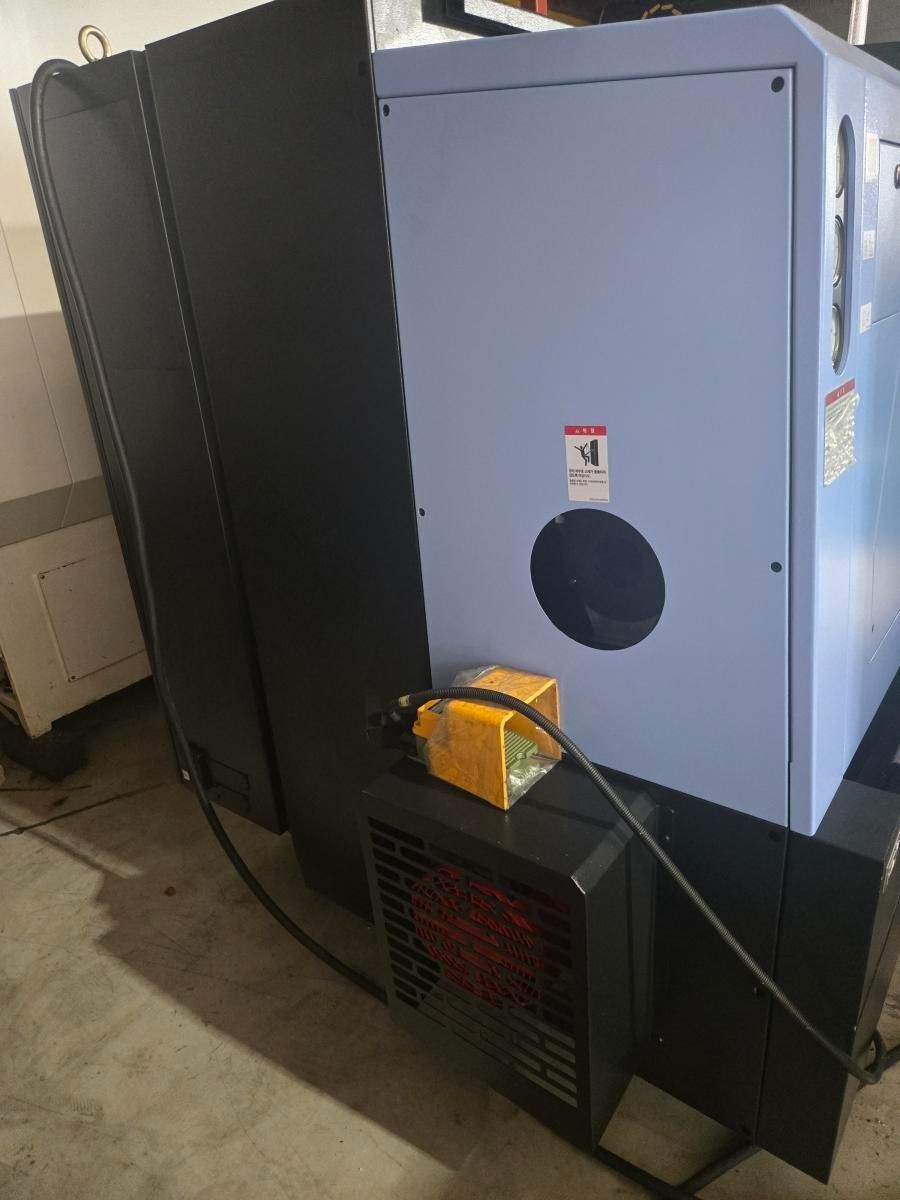

DOOSAN PUMA GT 2100M CNC Turning Center with Milling by DN Solutions. Model: PUMA DNT 2100M. Type: 2-Axis & 3-Axis Lathes. Year: 2025. Used condition. Ideal for precision machining tasks.
2025 DN SOLUTIONS PUMA DNT 2100M
SPECIFICATIONS:
Swing Over Bed....................... 25.6"
Machining Length..................... 21.7"
Turning Diameter, Shaft Diameter..... 15.7"
Chuck Size 1......................... 8"
Spindle Nose 1....................... A2 - 6
Spindle Bore Diameter 1.............. 3.2"
Spindle Bar Capacity 1............... 2.6"
Spindle Speeds 1..................... 4,500 RPM
Spindle Horsepower 1................. 25 hp
X1 - Axis Travel..................... 9.05"
Z1 - Axis Travel..................... 22.8"
C1 - Axis Travel..................... .001
Rapid Traverse Rate - X1............. 945 in/min.
Rapid Traverse Rate - Z1............. 1,181 in/min.
Turret Configuration 1.............. 1255
Turret Rotary Tool Spindle Speed 1... 6,000 RPM
Turret Rotary Tool Horse Power 1..... 7.5 hp
Tailstock Quill Diameter............. 3.1"
Tailstock Taper...................... MT 3
Tailstock Quill Travel............... 3.9"
Tailstock Travel..................... 22.8"
Tailstock............................ 'Yes'
Sub Spindle.......................... 'No'
Control.............................. CNC (FANUC SERIES I PLUS CNC COLOR CONTROL)
Weight............................... 8200.00
EQUIPPED WITH:
FANUC SERIES I PLUS CNC COLOR CONTROL
CHIP CONVEYOR
TOOL PRESETTER
(2 ) I.D. ROTARY HEADS
(2) O.D. ROTARY HEADS
STANDARD STATIC TOOL PACKAGE
DOOSAN TOOL LOAD MONITORING
EHTERNET
478 CUTTING HOURS
2025 DN SOLUTIONS PUMA DNT 2100M
SPECIFICATIONS:
Swing Over Bed....................... 25.6"
Machining Length..................... 21.7"
Turning Diameter, Shaft Diameter..... 15.7"
Chuck Size 1......................... 8"
Spindle Nose 1....................... A2 - 6
Spindle Bore Diameter 1.............. 3.2"
Spindle Bar Capacity 1............... 2.6"
Spindle Speeds 1..................... 4,500 RPM
Spindle Horsepower 1................. 25 hp
X1 - Axis Travel..................... 9.05"
Z1 - Axis Travel..................... 22.8"
C1 - Axis Travel..................... .001
Rapid Traverse Rate - X1............. 945 in/min.
Rapid Traverse Rate - Z1............. 1,181 in/min.
Turret Configuration 1.............. 1255
Turret Rotary Tool Spindle Speed 1... 6,000 RPM
Turret Rotary Tool Horse Power 1..... 7.5 hp
Tailstock Quill Diameter............. 3.1"
Tailstock Taper...................... MT 3
Tailstock Quill Travel............... 3.9"
Tailstock Travel..................... 22.8"
Tailstock............................ 'Yes'
Sub Spindle.......................... 'No'
Control.............................. CNC (FANUC SERIES I PLUS CNC COLOR CONTROL)
Weight............................... 8200.00
EQUIPPED WITH:
FANUC SERIES I PLUS CNC COLOR CONTROL
CHIP CONVEYOR
TOOL PRESETTER
(2 ) I.D. ROTARY HEADS
(2) O.D. ROTARY HEADS
STANDARD STATIC TOOL PACKAGE
DOOSAN TOOL LOAD MONITORING
EHTERNET
478 CUTTING HOURS
