Manufacturer: Dn Solutions
Model: PUMA-5100LB
Year: 2022
Swing: 35.4
Chuck: 21
Bar Capacity: 6.5
Centers: 84.7
Stock # 10125

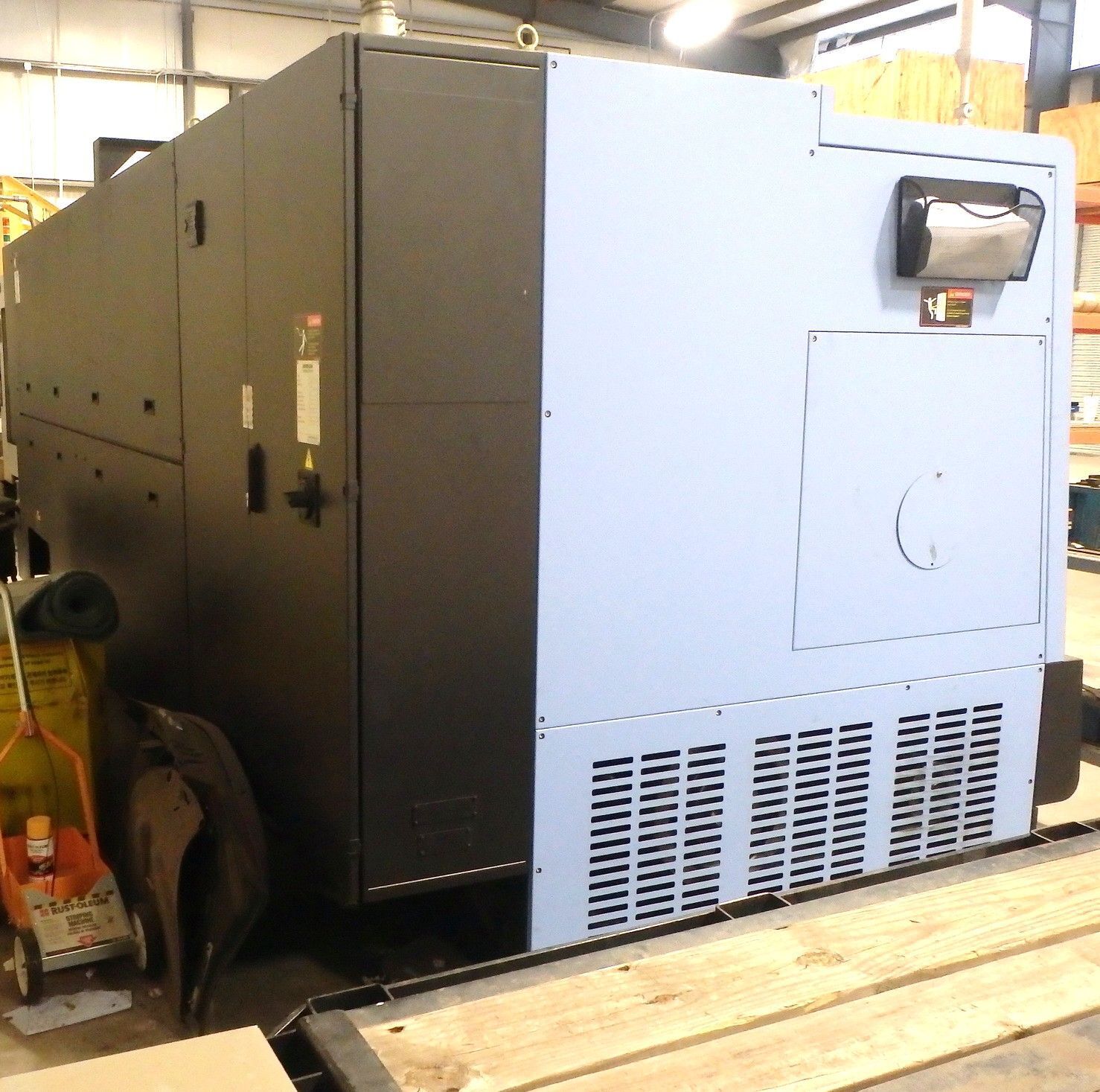

Click to zoom in
For Sale by Used CNC LLC
Surplus Record Dealer Since 1997
Location: Huntley, IL
Contact Mike Oracko
Phone Number: 224...> Show Phone Number 224-537-0982
Let the seller know you found their listing on Surplus Record!
Description
Explore precision with the 2023 DN SOLUTIONS PUMA 5100LB CNC Universal Turning Center. Equipped for versatile 2-axis work and heavy duty turning. It features a 21" chuck, 60 HP spindle, tool setter and a machining length of 80.39", plumbed with base for hydraulic steady rest. Perfect for heavy-duty tasks.
2022 DN SOLUTIONS PUMA 5100LB
SPECIFICATIONS:
Swing Over Bed..................... 35.4"
Machining Length................... 80.39"
Distance Between Centers........... 84.7"
Turning Diameter, Shaft Diameter... 25.56"
Distance Between Spindles.......... 0"
Chuck Size 1....................... 21"
Spindle Nose 1..................... A1 - 15
Spindle Bore Diameter 1............ 5.2"
Spindle Bar Capacity 1............. 6.5"
Spindle Speeds 1................... 1,500 RPM
Spindle Horsepower 1............... 60 hp
X1 - Axis Travel................... 14.3"
Z1 - Axis Travel................... 84.8"
Rapid Traverse Rate - X1........... 630 in/min.
Rapid Traverse Rate - Z1........... 710 in/min.
Spindle Torque..................... -6441
Gear Ranges........................ 2
Turret Configuration 1............ 10
Tailstock Quill Diameter........... 4.7"
Tailstock Taper.................... MT5
Tailstock Quill Travel............. 4.7"
Programmable Tailstock............. YES
Tailstock Travel................... 80.7"
# Axis............................. 2
Bar Capacity....................... 6.5"
Tailstock.......................... 'Yes'
Live Tooling....................... 'No'
Sub Spindle........................ 'No'
Control............................ CNC (FANUC SERIES I PLUS CNC COLOR CONTROL)
Weight............................. 0.00
EQUIPPED WITH:
FANUC SERIES I PLUS CNC COLOR CONTROL
DOOSAN EZ GUIDE I CONVERSATIONAL PROGRAMMING
PLUMBED WITH STEADY REST BASE AND FOR HYDRAULICS STEADY REST AND TOW ALONG
TOOL PRESETTER
21" HYDRAULIC THRU HOLE CHUCK
PROGRAMMABLE TAILSTOCK
SPINDLE CHILLER
CUSTOM MACRO
EMBEDDED ETHERNET FUNCTION
DOOSAN TOOL LOAD MONITORING
CHIP CONVEYOR
1438 CUTTING HOURS
2022 DN SOLUTIONS PUMA 5100LB
SPECIFICATIONS:
Swing Over Bed..................... 35.4"
Machining Length................... 80.39"
Distance Between Centers........... 84.7"
Turning Diameter, Shaft Diameter... 25.56"
Distance Between Spindles.......... 0"
Chuck Size 1....................... 21"
Spindle Nose 1..................... A1 - 15
Spindle Bore Diameter 1............ 5.2"
Spindle Bar Capacity 1............. 6.5"
Spindle Speeds 1................... 1,500 RPM
Spindle Horsepower 1............... 60 hp
X1 - Axis Travel................... 14.3"
Z1 - Axis Travel................... 84.8"
Rapid Traverse Rate - X1........... 630 in/min.
Rapid Traverse Rate - Z1........... 710 in/min.
Spindle Torque..................... -6441
Gear Ranges........................ 2
Turret Configuration 1............ 10
Tailstock Quill Diameter........... 4.7"
Tailstock Taper.................... MT5
Tailstock Quill Travel............. 4.7"
Programmable Tailstock............. YES
Tailstock Travel................... 80.7"
# Axis............................. 2
Bar Capacity....................... 6.5"
Tailstock.......................... 'Yes'
Live Tooling....................... 'No'
Sub Spindle........................ 'No'
Control............................ CNC (FANUC SERIES I PLUS CNC COLOR CONTROL)
Weight............................. 0.00
EQUIPPED WITH:
FANUC SERIES I PLUS CNC COLOR CONTROL
DOOSAN EZ GUIDE I CONVERSATIONAL PROGRAMMING
PLUMBED WITH STEADY REST BASE AND FOR HYDRAULICS STEADY REST AND TOW ALONG
TOOL PRESETTER
21" HYDRAULIC THRU HOLE CHUCK
PROGRAMMABLE TAILSTOCK
SPINDLE CHILLER
CUSTOM MACRO
EMBEDDED ETHERNET FUNCTION
DOOSAN TOOL LOAD MONITORING
CHIP CONVEYOR
1438 CUTTING HOURS
Get Your Price from Used CNC LLC!
Buyers Who Viewed This Listing Also Viewed:

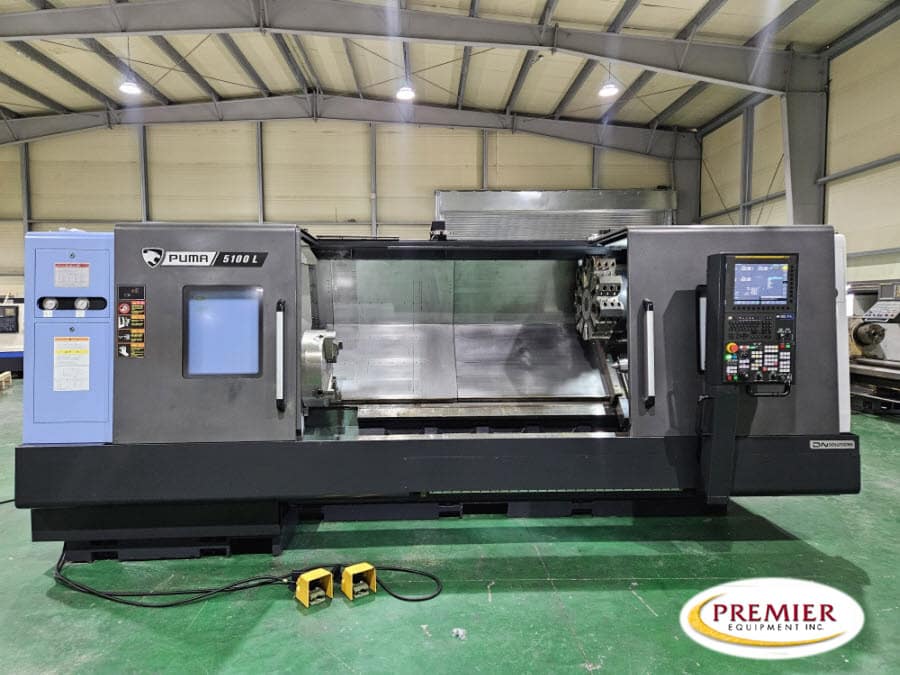

DN Solutions #Puma-5100LB, CNC lathe, Fanuc Control, 21" chuck, 6.4" bar, 25.59" cutting diameter, 80.3" cutting length, 2022
