Manufacturer: Dn Solutions
Model: LYNX-2100LSYB
Year: 2024
Swing: 23.6
Chuck: 8
Bar Capacity: 2.5
Stock # X3X4774
1 / 5
Click to zoom in
1 / 5
For Sale by Toolquip Inc
Surplus Record Dealer Since 2025
Location: Lebanon, OH
Contact Daniela Weaver
Phone Number: 513...> Show Phone Number 513-450-6223
Let the seller know you found their listing on Surplus Record!
Description

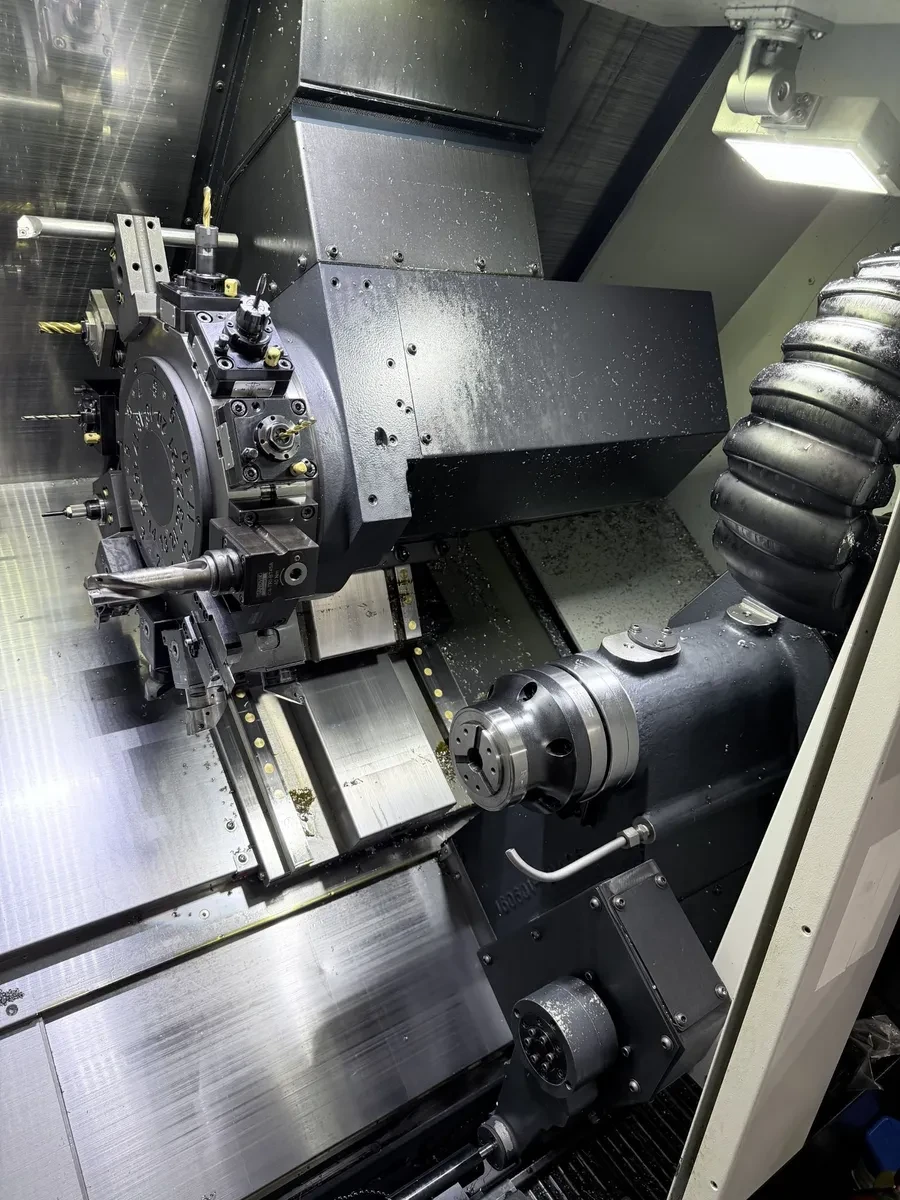

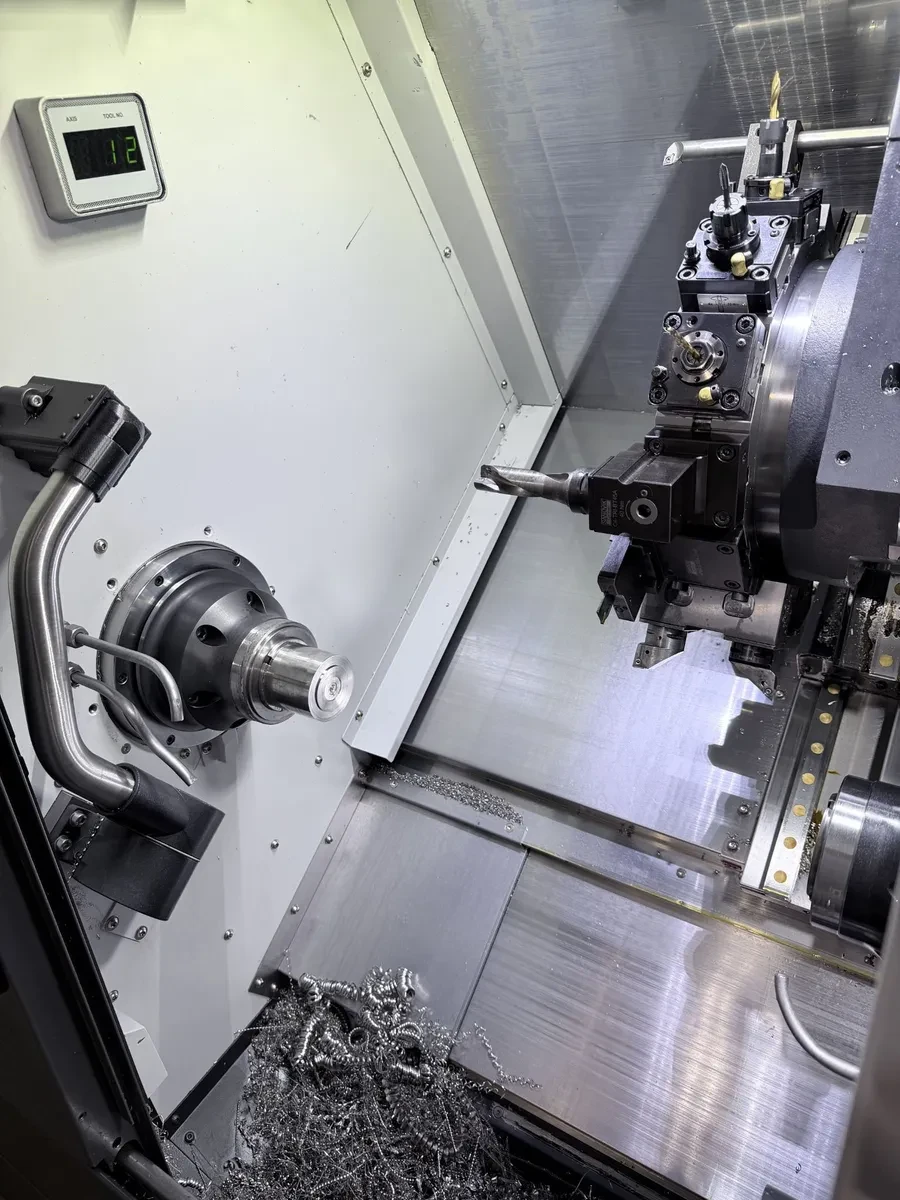

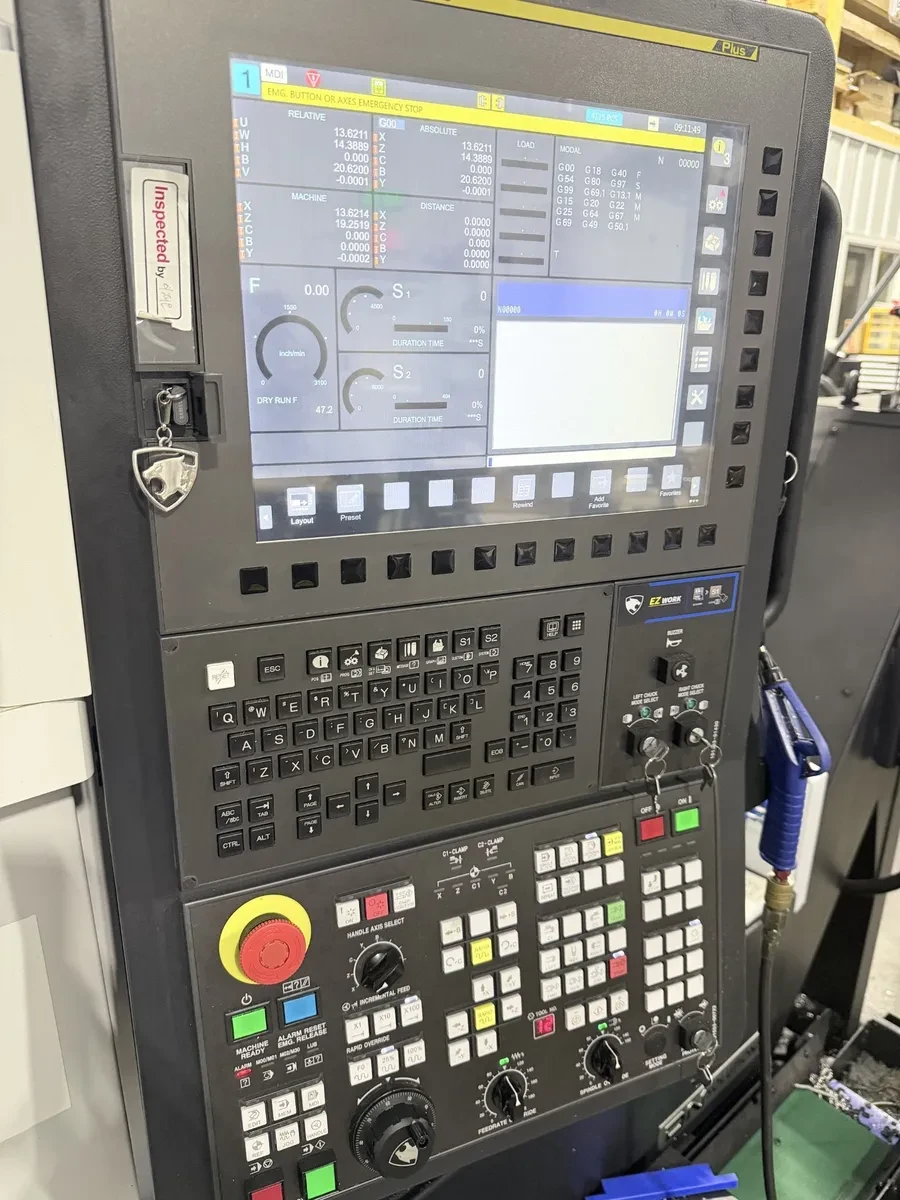

Used CNC Lathe features 600 mm swing over bed, 8 in main chuck, 4,500 rpm spindle speed, and FANUC CNC control. With X/Y/Z and C-axis, live tooling, and sub-spindle setup.
Swing over bed: 600 mm (23.62 in)
Swing over saddle: 400 mm (15.75 in)
Maximum turning diameter: 300 mm (11.81 in)
Maximum turning length: 510 mm (20.08 in)
Main chuck size: 8 in
Main spindle bar capacity: 65 mm (2.56 in)
Main spindle maximum speed: 4,500 rpm
Main spindle motor: 15 kW (20.1 hp) maximum
Sub-spindle maximum speed: 6,000 rpm
Live tooling maximum speed: 6,000 rpm
Turret: 12-station BMT45
X-axis travel: 205 mm (8.07 in)
Y-axis travel: 105 mm total (+/-52.5 mm; 4.13 in total)
Z-axis travel: 560 mm (22.05 in)
Sub-spindle B-axis travel: 560 mm (22.05 in)
Tailstock: No; sub-spindle configuration
Power supply: 220 V AC, 3-phase, 50/60 Hz
Rated capacity: 33.66 kVA
Full-load current: 88.34 A
Net weight: 4,200 kg (9,259 lb)
Overall dimensions (L x W x H): 2,880 x 1,711 x 1,921 mm (113.39 x 67.36 x 75.63 in)
Swing over bed: 600 mm (23.62 in)
Swing over saddle: 400 mm (15.75 in)
Maximum turning diameter: 300 mm (11.81 in)
Maximum turning length: 510 mm (20.08 in)
Main chuck size: 8 in
Main spindle bar capacity: 65 mm (2.56 in)
Main spindle maximum speed: 4,500 rpm
Main spindle motor: 15 kW (20.1 hp) maximum
Sub-spindle maximum speed: 6,000 rpm
Live tooling maximum speed: 6,000 rpm
Turret: 12-station BMT45
X-axis travel: 205 mm (8.07 in)
Y-axis travel: 105 mm total (+/-52.5 mm; 4.13 in total)
Z-axis travel: 560 mm (22.05 in)
Sub-spindle B-axis travel: 560 mm (22.05 in)
Tailstock: No; sub-spindle configuration
Power supply: 220 V AC, 3-phase, 50/60 Hz
Rated capacity: 33.66 kVA
Full-load current: 88.34 A
Net weight: 4,200 kg (9,259 lb)
Overall dimensions (L x W x H): 2,880 x 1,711 x 1,921 mm (113.39 x 67.36 x 75.63 in)
