Manufacturer: Dmg
Model: NZX-2000S/T3Y3
Year: 2020
Swing: 31.5
Chuck: 8
Bar Capacity: 2.4
Centers: 44.4
Stock # 9978
Click to zoom in
For Sale by Used CNC LLC
Surplus Record Dealer Since 1997
Location: Huntley, IL
Contact Mike Oracko
Phone Number: 224...> Show Phone Number 224-537-0982
Let the seller know you found their listing on Surplus Record!
Description

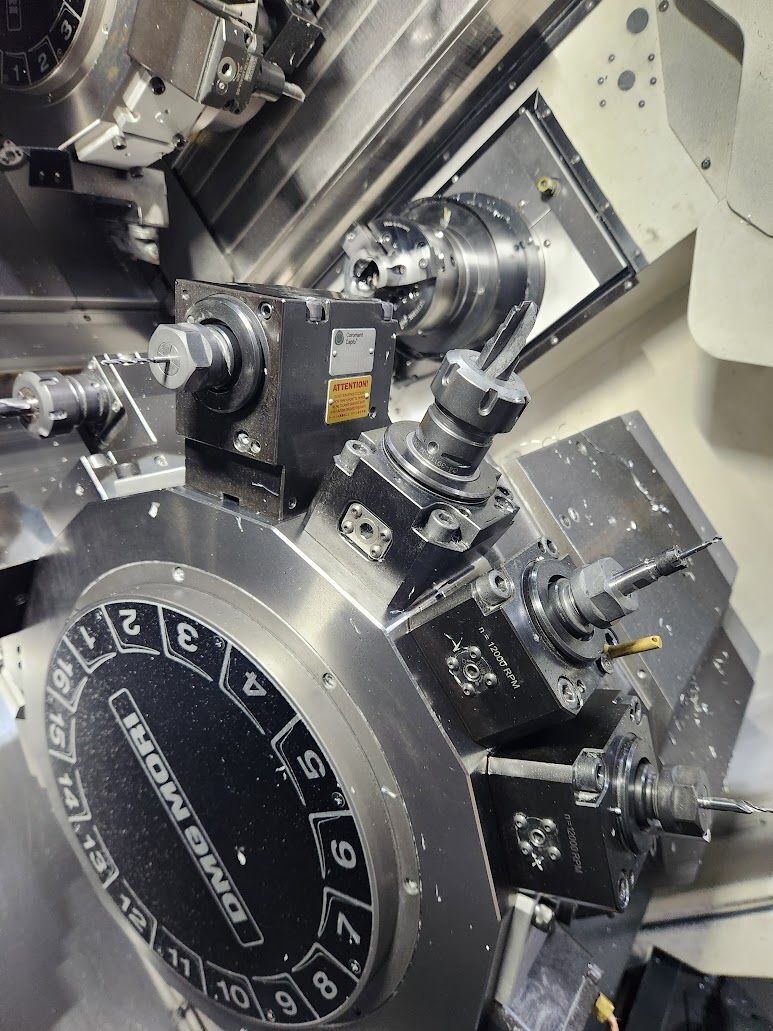

DMG MORI NZX 2000S T3Y3, a 2020 CNC multi-tasking center from MORI SEIKI. This used machine offers advanced capability with Y-Axis and multi-axis operations, ideal for complex machining tasks.
2020 DMG MORI NZX 2000 T3Y3
SPECIFICATIONS:
Swing Over Bed..................... 31.5"
Turning Diameter................... 12.5"
Turning Length..................... 31.8"
Distance Between Spindles.......... 44.4"
Spindle Nose 1..................... A2 -6
Spindle Bore Diameter 1............ 2.8"
Bar Capacity 1..................... 2.4"
Spindle Speeds 1................... 5,000 RPM
Spindle Horsepower 1............... 33.3 hp
Chuck Size 2....................... 8"
Spindle Nose 2..................... A2 - 6
Spindle Bore Diameter 2............ 2.8"
Bar Capacity 2..................... 2.4"
Spindle Speeds 2................... 5,000 RPM
Spindle Horsepower 2............... 33.3 hp
X1 - Axis Travel................... 8.3"
X2 - Axis Travel................... 8.3"
X3 - Axis Travel................... 8.3"
Z1 - Axis Travel................... 11.8"
Z2 - Axis Travel................... 31.9"
Z3 - Axis Travel................... 3.9"
Y1 - Axis Travel................... 4.3"
Y2 - Axis Travel................... 4.3"
Y3 - Axis Travel................... 4.3"
C - Axis Indexing 1................ 0.001
C - Axis Indexing 2................ 0.001
W - Axis Travel Sub Spindle........ 34.3"
Rapid Traverse Rate - X1........... 1181 ipm
Rapid Traverse Rate - X2........... 1181 ipm
Rapid Traverse Rate - X3........... 1181 ipm
Rapid Traverse Rate - Z1........... 1968 ipm
Rapid Traverse Rate - Z2........... 1968 ipm
Rapid Traverse Rate - Z3........... 1968 ipm
Rapid Traverse Rate - Y1........... 787 ipm
Rapid Traverse Rate - Y2........... 787 in/min.
Rapid Traverse Rate - Y3........... 787 in/min.
Turret Tool Positions 1............ 16 station
Turret Rotary Tool Speeds 1........ 6,000 RPM
Turret Rotary Tool Horse Power 1... 10 hp
Turret Tool Positions 2............ 16
Turret Rotary Tool Speeds 2........ 6,000 RPM
Turret Rotary Tool Horse Power 2... 10 hp
Turret Tool Positions 3............ 16
Turret Rotary Tool Speeds 3........ 6,000 RPM
Turret Rotary Tool Horse Power 3... 10 hp
Machine Weight..................... 22,000 lb
Control............................ CNC (FANUC 31IBCNC COLOR CONTROL W/CELOS)
Weight............................. 0.00
EQUIPPED WITH:
PROGRAM RESTART / INVERSE TIME FEED
AUTO POWER OFF
FANUC 31IB CNC CONTROL WITH CELOS
MAPPS IV CONVERSATIONAL PROGRAMMINGCOOLANT THRU SPINDLES
CHIP CONVEYOR
TOOL PRESETTERS (L/R)
LNS QUICK LOAD SERVO SHORT MAGAZINE BARFEED
CHIP BLASTER 3 TIER HIGH PRESSURE COOLANT SYSTEM 1000 PSI
IN MACHINE TRAVELING TYPE WORKPIEC UNLOADER (11 LBS CAPACITY 3.1" X 5.9")
(2) 8" 3 JAW HYDRAULIC CHUCKS
(1) COLLET NOSE MAIN SPINDLE
FULL COMPLIMENT OF ROTARY AND STATIC HOLDERS
BALL SCREW CORE COOLING
EVERYTHING WILL GO WITH THIS UNIT, SURPLUS TO THEIR NEEDS AND ONLY DMG MORI IN SHOP
ROTO RACK NOT INCLUDED
2020 DMG MORI NZX 2000 T3Y3
SPECIFICATIONS:
Swing Over Bed..................... 31.5"
Turning Diameter................... 12.5"
Turning Length..................... 31.8"
Distance Between Spindles.......... 44.4"
Spindle Nose 1..................... A2 -6
Spindle Bore Diameter 1............ 2.8"
Bar Capacity 1..................... 2.4"
Spindle Speeds 1................... 5,000 RPM
Spindle Horsepower 1............... 33.3 hp
Chuck Size 2....................... 8"
Spindle Nose 2..................... A2 - 6
Spindle Bore Diameter 2............ 2.8"
Bar Capacity 2..................... 2.4"
Spindle Speeds 2................... 5,000 RPM
Spindle Horsepower 2............... 33.3 hp
X1 - Axis Travel................... 8.3"
X2 - Axis Travel................... 8.3"
X3 - Axis Travel................... 8.3"
Z1 - Axis Travel................... 11.8"
Z2 - Axis Travel................... 31.9"
Z3 - Axis Travel................... 3.9"
Y1 - Axis Travel................... 4.3"
Y2 - Axis Travel................... 4.3"
Y3 - Axis Travel................... 4.3"
C - Axis Indexing 1................ 0.001
C - Axis Indexing 2................ 0.001
W - Axis Travel Sub Spindle........ 34.3"
Rapid Traverse Rate - X1........... 1181 ipm
Rapid Traverse Rate - X2........... 1181 ipm
Rapid Traverse Rate - X3........... 1181 ipm
Rapid Traverse Rate - Z1........... 1968 ipm
Rapid Traverse Rate - Z2........... 1968 ipm
Rapid Traverse Rate - Z3........... 1968 ipm
Rapid Traverse Rate - Y1........... 787 ipm
Rapid Traverse Rate - Y2........... 787 in/min.
Rapid Traverse Rate - Y3........... 787 in/min.
Turret Tool Positions 1............ 16 station
Turret Rotary Tool Speeds 1........ 6,000 RPM
Turret Rotary Tool Horse Power 1... 10 hp
Turret Tool Positions 2............ 16
Turret Rotary Tool Speeds 2........ 6,000 RPM
Turret Rotary Tool Horse Power 2... 10 hp
Turret Tool Positions 3............ 16
Turret Rotary Tool Speeds 3........ 6,000 RPM
Turret Rotary Tool Horse Power 3... 10 hp
Machine Weight..................... 22,000 lb
Control............................ CNC (FANUC 31IBCNC COLOR CONTROL W/CELOS)
Weight............................. 0.00
EQUIPPED WITH:
PROGRAM RESTART / INVERSE TIME FEED
AUTO POWER OFF
FANUC 31IB CNC CONTROL WITH CELOS
MAPPS IV CONVERSATIONAL PROGRAMMINGCOOLANT THRU SPINDLES
CHIP CONVEYOR
TOOL PRESETTERS (L/R)
LNS QUICK LOAD SERVO SHORT MAGAZINE BARFEED
CHIP BLASTER 3 TIER HIGH PRESSURE COOLANT SYSTEM 1000 PSI
IN MACHINE TRAVELING TYPE WORKPIEC UNLOADER (11 LBS CAPACITY 3.1" X 5.9")
(2) 8" 3 JAW HYDRAULIC CHUCKS
(1) COLLET NOSE MAIN SPINDLE
FULL COMPLIMENT OF ROTARY AND STATIC HOLDERS
BALL SCREW CORE COOLING
EVERYTHING WILL GO WITH THIS UNIT, SURPLUS TO THEIR NEEDS AND ONLY DMG MORI IN SHOP
ROTO RACK NOT INCLUDED
Get Your Price from Used CNC LLC!
