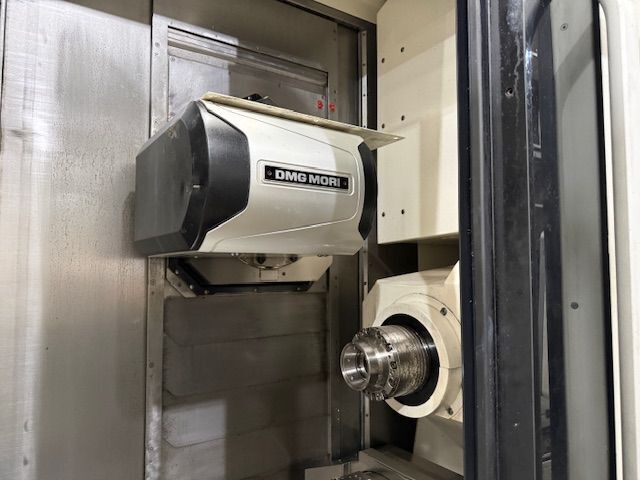

DMG Mori Seiki #NTX-1000SZM, 5-Axis CNC lathe, 17.7" swing, 31.4" turning length, 8" chuck, 2.5" bar, sub spindle, 15 HP, 5000 RPM, 76 ATC, 2020

The 2020 DMG MORI NTX 1000SZ CNC Multi-Tasking Center offers versatile performance with dual spindles, 10-station turret, and high-speed milling spindle. Features CELOS control, in-machine tool presetter, and hydraulic bar feed. Weight: 19,800 lbs.
2020 DMG MORI NTX 1000SZM
SPECIFICATIONS:
Swing Over Bed......................... 17.7"
Turning Diameter....................... 16.9"
Turning Length......................... 31.4"
Distance Between Spindles.............. 41.3"
Chuck Size 1........................... 8"
Spindle Nose 1......................... A2 - 6
Spindle Bore Diameter 1................ 2.9"
Bar Capacity 1......................... 2.5"
Spindle Speeds 1....................... 5,000 RPM
Spindle Horsepower 1................... 15 hp
Chuck Size 2........................... 8"
Spindle Nose 2......................... FLAT
Spindle Bore Diameter 2................ 1.9"
Bar Capacity 2......................... 1.5"
Spindle Speeds 2....................... 6,000 RPM
Spindle Horsepower 2................... 10 hp
B - Axis Head Travel................... + - 120 DEGREES
B - Axis Head Indexing................. 0.0001
B - Axis Milling Spindle Taper......... CAPTO C5
B - Axis Milling Spindle Speed......... 20,000 RPM
B - Axis Milling Spindle Horse Power... 12 hp
ATC For Milling Spindle................ 76
Tool Diameter.......................... 2.7", 5.1"
Tool Length............................ 8.2"
Tool Weight............................ 11 lb
X1 - Axis Travel....................... 15"
X2 - Axis Travel....................... 6.1"
Z1 - Axis Travel....................... 24.2"
Z2 - Axis Travel....................... 24"
Y1 - Axis Travel....................... 8.2"
C - Axis Indexing 1.................... 0.0001
C - Axis Indexing 2.................... 0.0001
Rapid Traverse Rate - X1............... 1574 ipm
Rapid Traverse Rate - X2............... 787 ipm
Rapid Traverse Rate - Z1............... 1968 ipm
Rapid Traverse Rate - Z2............... 1417 ipm
Rapid Traverse Rate - Y1............... 1574 ipm
Turret Tool Positions 1................ 10 station
Machine Weight......................... 19,800 lb
Control................................ CNC (CELOS SIEMENS 840D SL CNC COLOR CONTROL)
EQUIPPED WITH:
CELOS ERGOLINE SIEMENS 8740D SL CNC COLOR CONTROL
IN MACHINE TOOL PRESETTER FOR TOOL SPINDLE
CHIP CONVEYOR
SUPER HIGH PRESSURE COOLANT SYSTEM THRU B AXIS INTERFACE
ETHERNET I / P
HYDRAFEED MSV SERVO DRIVEN SHORT MAGAZINE BAR FEED UNIT
BAR FEED INTERFACE
WORKPIECE UNLOADER
WORKPIECE EJECTOR
ROTARY WINDOW
HAINBUCH SPANNTOP MINI PULL BACK SIZE 65MM COLLET CHUCK
COOLANT GUN
AIRBLOW FOR CHUCK
MIST COLLECTOR INTERFACE
OIL SKIMMER
OIL MIST SEPERATOR
RENISHAW RMP 600 RART PROBE WITH IN MACHINE INSPECTION SOFTWARE
RENISHAW MULTI AXIS INSPECTION SOFTWARE
BLUM Z PICO TOOL BREAKAGE DETECTION
TECHNOLOGY SOFTWARE CYCLE 5 AXIS SIMULTANEOUS MACHINING
MANUAL PULSE GENERATOR
MULTI DRY FILTER
SIGNAL LAMP 4 COLORS
